In modern industrial automation, smart manufacturing, machine vision, and edge computing, the industrial touch panel PC serves as the central Human-Machine Interface (HMI) bridging operators and mission-critical equipment. Whether controlling a multi-axis CNC machine, managing an automated food packaging line, or monitoring telemetry in an oil refinery, touch responsiveness, optical clarity, and long-term durability directly dictate operational uptime.
However, selecting an industrial all-in-one PC requires far more than comparing CPU speed and memory size. The underlying touchscreen architecture—primarily Resistive, Projected Capacitive (PCAP), or Infrared (IR)—determines how the terminal behaves under extreme temperature variations, airborne dust, oil mist, mechanical vibration, and water spray.
When touch failure, false triggering, or surface degradation occurs in the field, the root cause is rarely defective hardware; it is almost always choosing the wrong touch technology for the specific operating environment. This comprehensive engineering guide breaks down the core operating principles, strengths, limitations, and real-world industrial application scenarios for each touch technology to help you make an informed, cost-effective selection.
Resistive touch technology operates entirely on physical pressure rather than electrical conductivity. A standard 5-wire resistive touchscreen consists of a rigid glass base layer coated with a transparent conductive layer (Indium Tin Oxide, or ITO), separated by tiny insulating spacer dots from a flexible top polyester film also coated with conductive material. When an operator presses the screen with a finger, gloved hand, or stylus, the top layer flexes to make physical contact with the bottom layer, creating an electrical voltage gradient that the controller reads as precise X-Y coordinates.

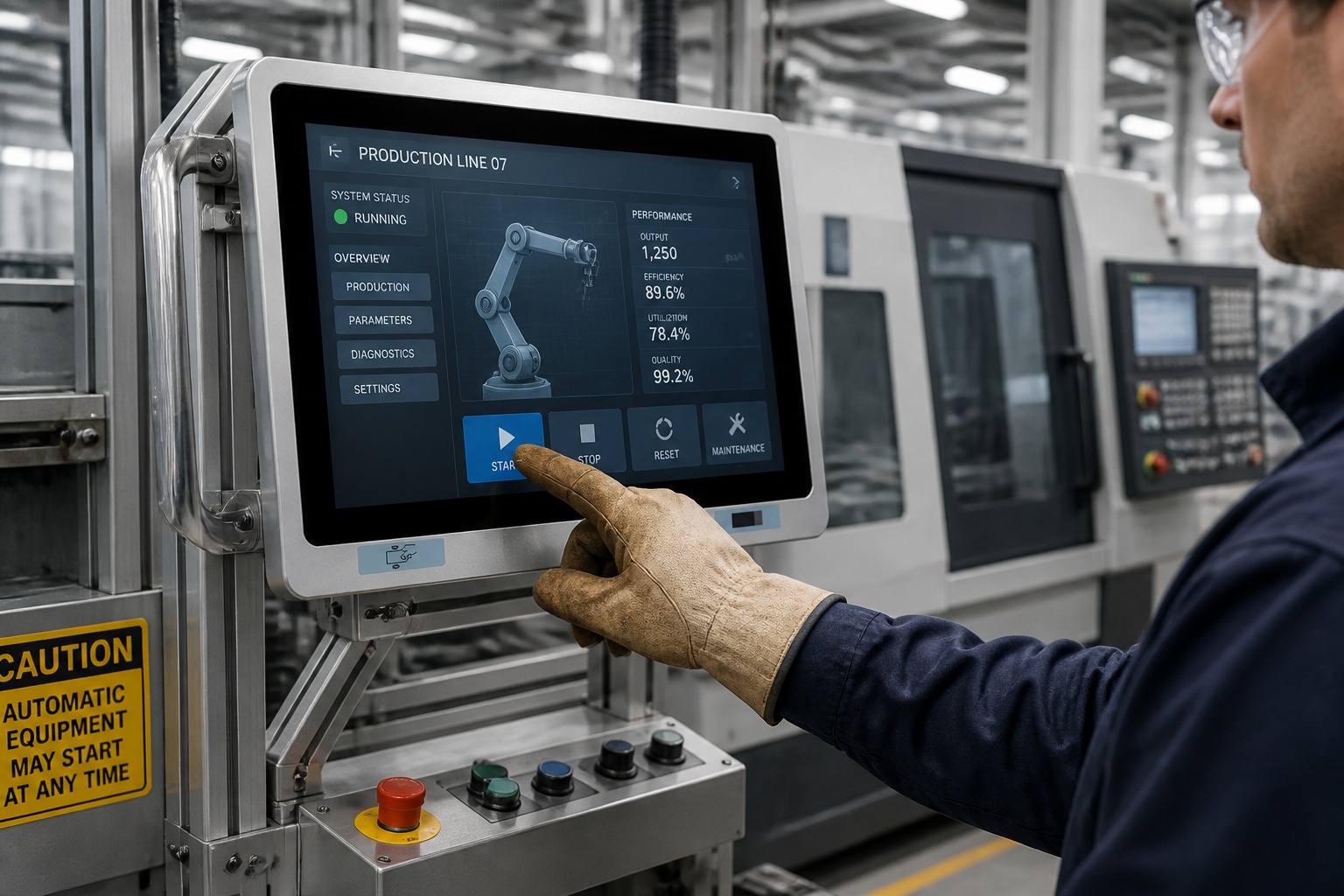

· Universal Input Compatibility: Because it relies strictly on mechanical pressure, a resistive touchscreen industrial PC responds flawlessly to heavy leather work gloves, rubber safety gloves, plastic styluses, or even tools like screwdrivers.
· Immunity to Surface Contaminants: Liquid drops, coolant splashes, oil residue, metal dust, and airborne grease on the surface will not cause false triggers or phantom touches.
· Exceptional EMI Resistance: The analog resistive circuit is naturally resilient against severe electromagnetic interference (EMI) generated by heavy electric motors, frequency converters, and industrial welding equipment.
· High Cost-Efficiency & Reliability: Proven over decades of deployment, 5-wire resistive screens offer stable single-point accuracy, zero touch drift, and high cost-effectiveness for budget-sensitive industrial automation lines.
· Optical Transmittance: The dual-layer construction and internal air gap reduce light transmission to approximately 75%–82%, resulting in slightly lower display brightness compared to pure glass screens.
· Surface Vulnerability: The top polyester layer is softer than tempered glass (typically 3H–4H pencil hardness), making it susceptible to deep scratches from sharp metal objects over prolonged use.
· Single-Touch Only: Standard resistive screens do not support multi-touch gestures such as pinch-to-zoom or two-finger rotations.
· Heavy metal fabrication and CNC machining workshops with abundant flying coolant and metal shavings.
· Chemical plants, foundry floors, and mining equipment where operators must wear thick protective gloves.
· Outdoor logistics terminals and cold storage warehouses subjected to freezing moisture and continuous mechanical vibration.
Projected Capacitive (PCAP) technology operates on electrical field variations. The sensor consists of a micro-fine conductive grid matrix embedded between glass layers. When a conductive object (such as a bare human finger or a specialized conductive stylus) touches the glass surface, it alters the local electrostatic field and draws a minute electrical current. The touch IC calculates the exact capacitance change across multiple intersections simultaneously, enabling true multi-touch capability.
· Superior Optical Performance: Built with solid optical-grade tempered glass, PCAP screens deliver light transmittance exceeding 90%, offering vivid color reproduction, high contrast, and crisp text clarity.
· True-Flat Seamless Aesthetics (IP65 Bezel): PCAP allows for edge-to-edge true-flat glass designs without recessed bezels, eliminating dust-trapping grooves and making the front surface exceptionally easy to wipe down and sanitize.
· Extreme Scratch & Impact Resistance: With a surface hardness typically reaching 7H (Mohs scale), the glass panel resists scratching from tools, dust abrasion, and accidental impacts far better than polyester films.
· Intuitive Multi-Touch Gestures: Supports multi-point touch (up to 10 points), enabling gesture navigation, zooming into CAD drawings, rotating 3D SCADA representations, and dual-hand safety interlock operations.
· Input Constraints: Standard consumer-grade PCAP cannot register non-conductive materials like standard winter gloves or plastic styluses unless the touch controller is custom-tuned for high-sensitivity glove firmware.
· Moisture & Water Sensitivity: Large pools of conductive standing water on the screen can sometimes trigger false capacitance readings unless advanced water-rejection firmware algorithms are implemented.
· Electromagnetic Susceptibility: Extreme high-frequency electrical noise requires high-grade industrial controllers with differential signal processing to prevent touch jitter.

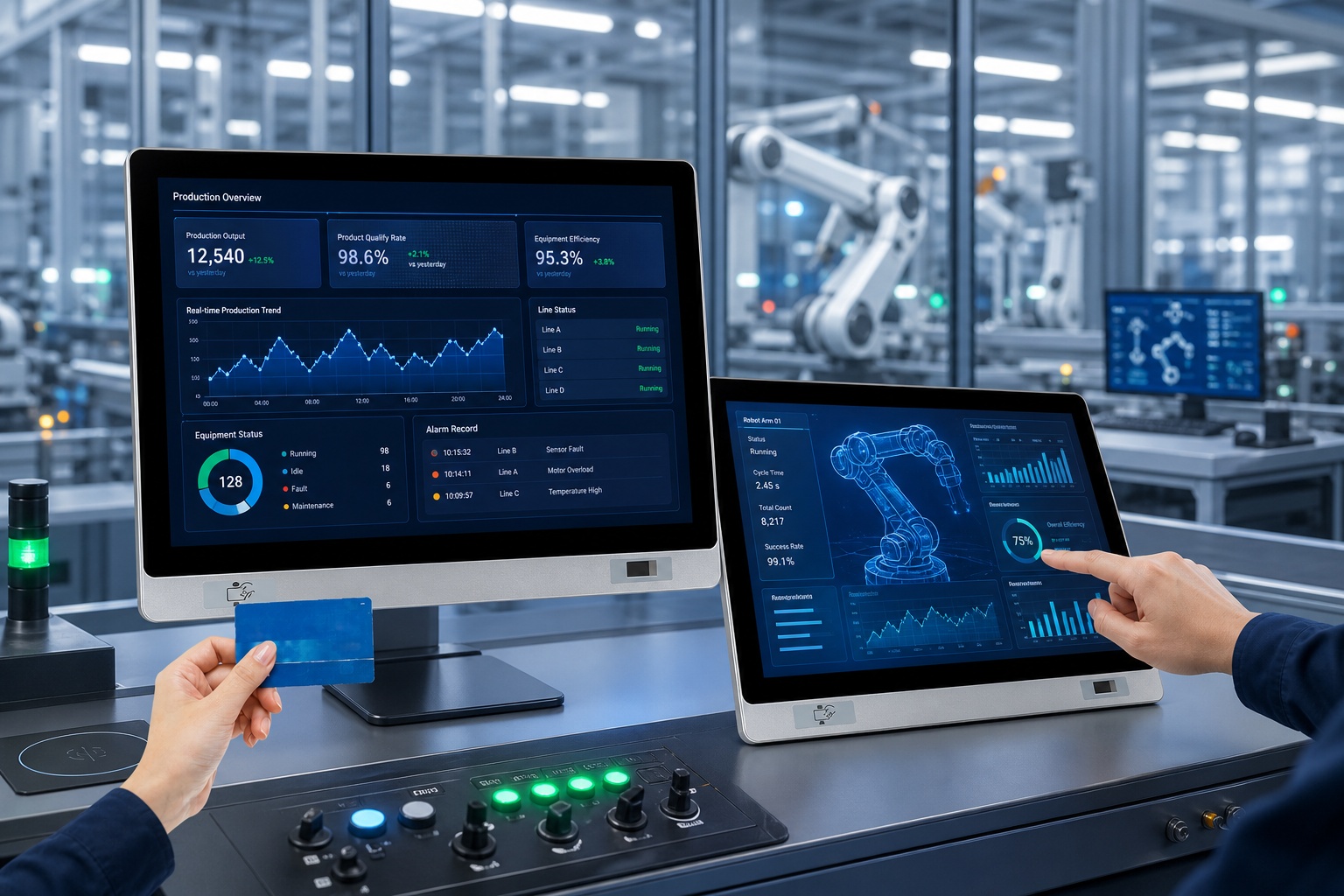

· Smart factory automated assembly lines, cleanrooms, and semiconductor fabrication facilities.
· Pharmaceutical packaging and food & beverage processing where seamless IP65 washdown capability is required.
· High-end industrial HMI touchscreen terminals running complex graphical dashboards, interactive telemetry charts, and multi-touch machinery controls.
Infrared touch technology uses an optical matrix integrated directly into the perimeter bezel. Rows of infrared Light Emitting Diodes (LEDs) and matching phototransistor sensors are embedded around the display frame to create an invisible grid of infrared light beams across the screen surface. When any object enters the grid and obstructs the light beams, the controller calculates the coordinates of the broken rays to pinpoint the touch location.
· 100% Optical Clarity: Because there are no sensor films, coatings, or conductive layers placed over the LCD panel, image clarity, brightness, and color fidelity remain 100% intact.
· Universal Touch Activation: Any solid object capable of blocking light—bare fingers, heavily insulated gloves, pointers, or styluses—activates the touch grid without requiring physical actuation pressure.
· Excellent Durability on Large Screens: The structural glass acts purely as a protective shield; scratching or surface wear does not affect the optical sensors situated in the outer frame.
· Scalability for Large Sizes: Infrared technology is highly cost-effective and structurally stable on displays measuring 21.5 inches, 32 inches, and above.
· Bezel Depth: The necessity of housing LED emitters and receivers creates a raised perimeter bezel, preventing true-flat zero-bezel front panel construction.
· Susceptibility to Dirt & Strong Light: Accumulation of thick dust, oil grease, or direct blinding sunlight in the bezel channels can block or blind the optical sensors, causing unintended touch triggers.
· Lower Precision on Small Displays: Fine handwriting and dense on-screen buttons are more challenging to target accurately compared to PCAP.
· Central control room command consoles, SCADA overview video walls, and public industrial information kiosks.
· Large interactive digital signage and dispatch centers operating in indoor, climate-controlled environments.
Evaluation Dimension | 5-Wire Resistive Touch | Projected Capacitive (PCAP) | Infrared (IR) Touch |
Operating Principle | Pressure conductive contact | Electrostatic field change | Optical IR grid interruption |
Touch Sensitivity | Moderate (requires pressure) | Ultra-high (instant response) | High (light obstruction) |
Multi-Touch Support | Single-touch only | Multi-touch (up to 10 points) | Multi-touch (2 to 20 points) |
Input Methods | Bare finger, gloves, stylus, tools | Bare fingers, conductive gloves | Any opaque object / glove |
Surface Hardness | 3H – 4H (PET film) | ≥ 7H (Tempered Glass) | ≥ 7H (Protective Glass Base) |
Optical Transmittance | ~75% – 82% | ≥ 88% – 92% | ~100% (No overlay loss) |
Contaminant Resistance | Excellent (Dust, oil, liquid) | Good (Enhanced via firmware) | Moderate (Keep bezel clean) |
Front Bezel Design | Traditional recessed bezel | Seamless True-Flat (IP65) | Raised perimeter bezel |
Optimal Screen Sizes | Small to Medium (7.0" – 19.0") | Small to Large (10.1" – 24.0"+) | Large to Extra-Large (21.5"+) |
Typical Industrial Cost | Economical | Balanced / Moderate | Moderate on large displays |
To prevent costly downtime and retrofit expenses, evaluate your target operating environment against this 4-step engineering checklist:
· Step 1 - Operating Environment Assessment: For heavy oil, metal shavings, flying coolant, or thick leather work gloves, choose 5-Wire Resistive. For cleanrooms, food processing, medical systems, or outdoor kiosk setups needing high clarity and multi-touch, choose Projected Capacitive (PCAP). For large central command consoles (>21.5 inches), choose Infrared (IR).
· Step 2 - User Interaction Complexity: If the software requires simple push-button on/off commands and setpoint entry, resistive or standard PCAP suffices. If operators must zoom into schematics, rotate 3D visual models, or navigate web-based SCADA software, PCAP is essential.
· Step 3 - Ingress Protection & Hygiene: If the device is subjected to direct water jet washdowns, caustic chemical cleaning, or food-grade sanitation, select a true-flat IP65 waterproof PCAP front panel.
· Step 4 - Computing Platform Lifecycle: Ensure the display is paired with a fanless, wide-voltage industrial computing platform like the Meetneng FWS Series to guarantee 24/7 reliability.
Selecting the ideal touchscreen technology is only half the equation; the display must be paired with an equally rugged computing platform. meetneng engineers industrial all-in-one touch panel PCs designed specifically for demanding factory and automation deployments:
· Modular Touch Integration: The Meetneng FWS Series (available in 10.1", 15.6", and 21.5" form factors) offers configurable 5-wire resistive and industrial-grade PCAP multi-touch options, allowing engineers to standardize on one chassis design while tailoring the touch sensor to specific station conditions.
· Rugged IP65 Front Bezel: Engineered with precision die-cast aluminum enclosures and seamless front bezels, Meetneng panel computers block water jets, dust infiltration, and oil residue.

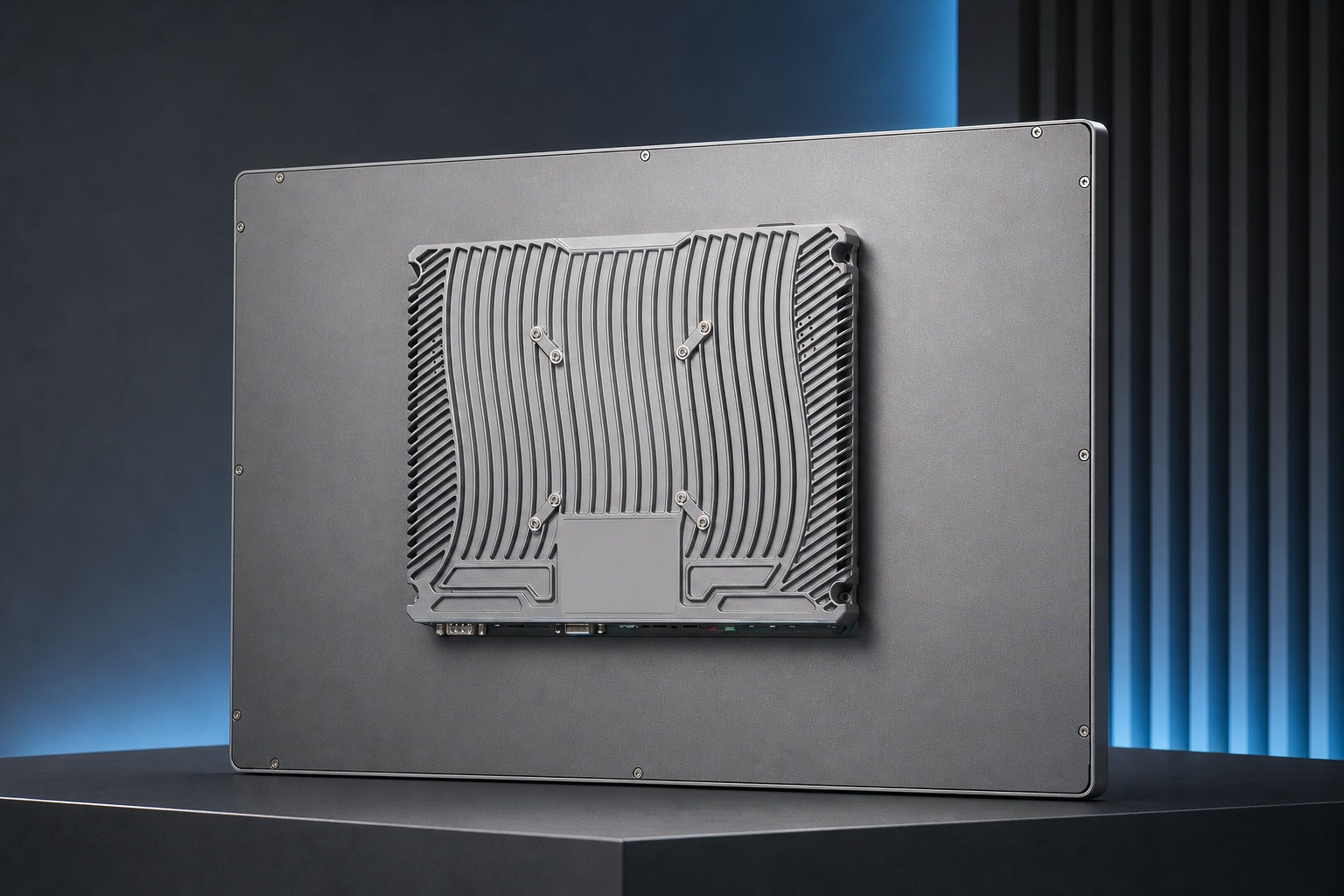

· Fanless Heavy-Fin Thermal Design: Utilizing high-conductivity extruded aluminum heatsink fins across the rear chassis, Meetneng systems dissipate heat silently and reliably without moving parts, preventing airborne dust ingestion and extending component lifespan.

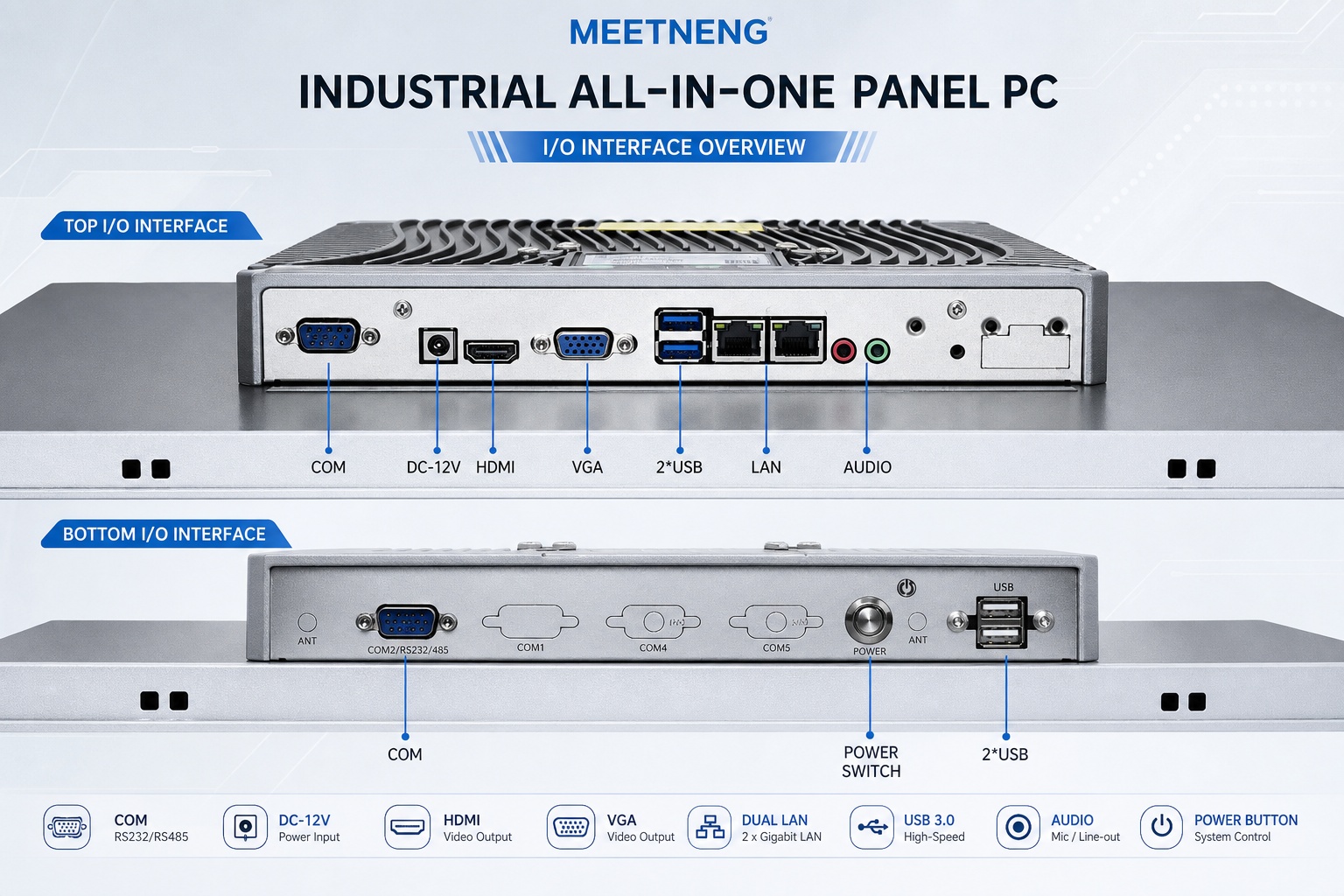

· Comprehensive Industrial Connectivity: Equipped with dual Gigabit Ethernet ports, multiple RS232/RS485 serial interfaces, USB 3.0, HDMI, VGA, and optional integrated RFID/IC card authentication, Meetneng touch PCs interface effortlessly with PLCs, sensors, barcode scanners, and enterprise SCADA networks.
Yes, provided the system uses an industrial-grade touch controller with optimized firmware. High-performance PCAP controllers (such as those configured in Meetneng industrial panel PCs) can be calibrated for glove-touch algorithms, supporting latex, nitrile, and medium-thickness work gloves while maintaining high tracking accuracy. For very thick leather or insulated gloves in heavy welding environments, 5-wire resistive touch remains the most dependable choice.
Touch drift occurs when a touchscreen requires frequent re-calibration because its coordinate reference shifts over time or with temperature fluctuations. Traditional 4-wire resistive screens suffered from drift as the top film stretched. However, modern 5-wire resistive screens apply voltage across the stable bottom glass layer, eliminating drift. PCAP and Infrared screens rely on fixed geometric grid matrices and never require manual calibration throughout their operational lifespan.
Optical bonding fills the tiny air gap between the LCD panel and the outer glass touch layer with optical-grade resin. This significantly reduces internal light reflection, enhances sunlight readability, prevents internal condensation in high-humidity climates, and increases overall impact resistance against physical shock.
An IP65 rating certifies that the front panel is completely sealed against dust ingress and protected against low-pressure water jets from any direction. This allows industrial operators to perform daily sanitization, washdowns, and chemical wipe-downs without risking liquid penetration into internal electronic components.
In 4-wire resistive screens, both the top polyester film and bottom glass layer carry electrical measurement circuits; if the flexible top film gets scratched or worn, coordinate tracking fails. In 5-wire resistive screens, all electrical measurement is conducted solely on the rigid bottom glass layer, while the top film acts merely as a conductive probe. Even if the outer film suffers minor surface scratches, a 5-wire resistive screen continues to operate reliably.
Summary & Recommendation
When configuring an industrial touch panel PC, matching the touchscreen technology to your real-world environment is the ultimate key to system reliability:
· Choose 5-Wire Resistive for high-contamination, high-vibration, gloved heavy manufacturing.
· Choose Projected Capacitive (PCAP) for high-precision, multi-touch, clean wipe-down automation HMIs.
· Choose Infrared (IR) for large-scale central control rooms and SCADA overview terminals.
Explore the complete Meetneng FWS Series industrial touch panel PCs or speak with our application engineering specialists to customize the optimal display, touch sensor, and computing hardware for your next automation project.
