Standard commercial computers fail spectacularly when deployed on the factory floor. I have seen consumer-grade machines succumb to the harsh realities of smart manufacturing within days. Designed for climate-controlled offices, they simply cannot handle airborne dust, extreme thermal fluctuations, or relentless machine vibration. The result is always the same: costly downtime, catastrophic data loss, and operational paralysis.
Modern facilities require a fundamentally different computing architecture to maintain continuous data flow and robust automation. Purpose-built industrial hardware directly solves these critical operational vulnerabilities. This guide breaks down the core technical features of these ruggedized systems, examines their pivotal role in automation monitoring, and provides an actionable framework for selecting gateway hardware.
Ruggedized industrial computers are engineered from the board level up to withstand extreme manufacturing environments while delivering continuous round-the-clock reliability.
Functioning as localized processing hubs, these headless systems integrate seamlessly with SCADA software and PLCs for real-time automation monitoring.
Specialized embedded hardware effectively bridges the critical communication gap between legacy factory machinery and modern cloud networks.
Selecting the appropriate system requires a strict evaluation of serial I/O interfaces, thermal ratings, wide-voltage inputs, and processing architecture.
Upgrading to purpose-built hardware provides a measurable baseline for improving Overall Equipment Effectiveness and drastically reducing Total Cost of Ownership.

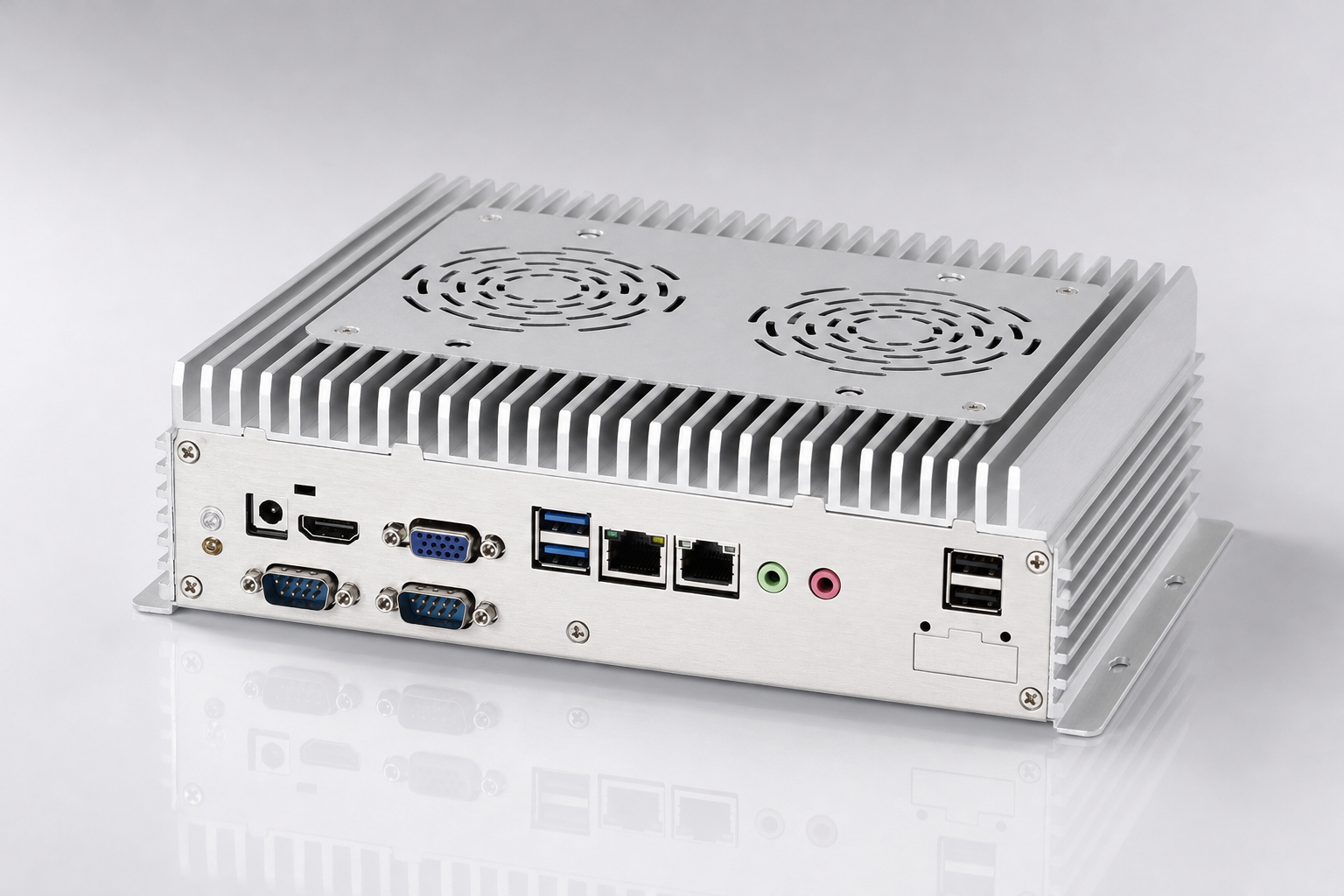

Figure 1. The BPC-102H industrial box PC, showing the fanless finned chassis and the rear I/O panel.
This article is written for automation engineers, system integrators and plant IT teams evaluating a headless computer for control-cabinet mounting. The criteria below apply if your project involves polling PLCs or RTUs for SCADA, running local monitoring software, converting legacy serial protocols for an IT or cloud platform, or replacing commercial PCs that keep failing on the shop floor.
The industrial box PC referenced in this article is a fanless, headless system intended for control-cabinet and machine-frame mounting, with isolated RS-232/422/485 serial ports, dual Gigabit LAN, digital I/O and a wide-voltage DC input. The exact processor, memory, storage, temperature range and I/O configuration vary by model, so confirm the available options against the current datasheet and your site conditions.
Placing a standard desktop tower next to a CNC milling machine is a recipe for hardware failure. Within weeks, the internal motherboard components will be coated in conductive metal shavings and lubricating oil mist. To survive and function in such volatile environments, engineering teams must adopt an industrial box PC engineered for the factory floor.
An industrial box PC is a heavily ruggedized, standalone computing system explicitly designed for automation applications. Unlike a panel PC which features an integrated touchscreen display, a box PC is a headless unit. This compact form factor is highly advantageous for automation engineers. It allows the device to be securely mounted deep inside space-constrained control cabinets, clamped onto standard DIN rails, or bolted directly onto heavy machinery. Operating silently in the background, it executes complex control logic and aggregates sensor data. Operators only connect an external monitor when local visualization is strictly required for maintenance.
The most critical failure point in any standard computer is the active cooling fan. Fans continuously draw ambient air into the chassis. In a manufacturing setting, this air carries conductive dust, corrosive chemical vapors, and moisture. These particulates accumulate heavily on the internal circuitry, inevitably leading to short circuits and thermal throttling.
Advanced industrial box PC designs eliminate this vulnerability entirely through passive cooling thermodynamics. Instead of active air circulation, the chassis itself acts as a massive heatsink. Deep heat-dissipating fins extruded from heavy-duty aluminum transfer thermal energy away from the CPU via highly conductive thermal pads. Consequently, the entire enclosure can be completely sealed to prevent any particulate ingress. By removing moving parts like fans and spinning hard drives, the system's Mean Time Between Failures increases exponentially.
Industrial environments present severe physical challenges that go far beyond airborne dust. These computing units feature wide operating temperature ranges. They function reliably from freezing -20°C storage facilities to the blistering 60°C heat near industrial furnaces. Furthermore, they undergo rigorous shock and vibration testing to ensure internal connections do not dislodge when mounted on heavy stamping presses. Wide voltage inputs, typically ranging from 9V to 36V DC, provide a crucial layer of protection against the severe power fluctuations and voltage spikes that frequently plague factory electrical grids.
Modern manufacturing relies entirely on data visibility. Without real-time insights into machine performance, production bottlenecks often go unnoticed until they snowball into critical system failures. The industrial box PC sits at the very heart of this data ecosystem.
[Optimized] Supervisory Control and Data Acquisition systems require incredibly reliable local hardware to process data from programmable logic controllers and remote terminal units. Because of its small footprint, a dedicated industrial box PC can be installed directly inside the main PLC cabinet. From this localized vantage point, it continuously polls the PLCs, aggregates the raw production data, and runs the local SCADA software environment. This decentralized processing ensures that even if the connection to the main facility server drops, the local host continues to monitor and log critical automation data without a single interruption.

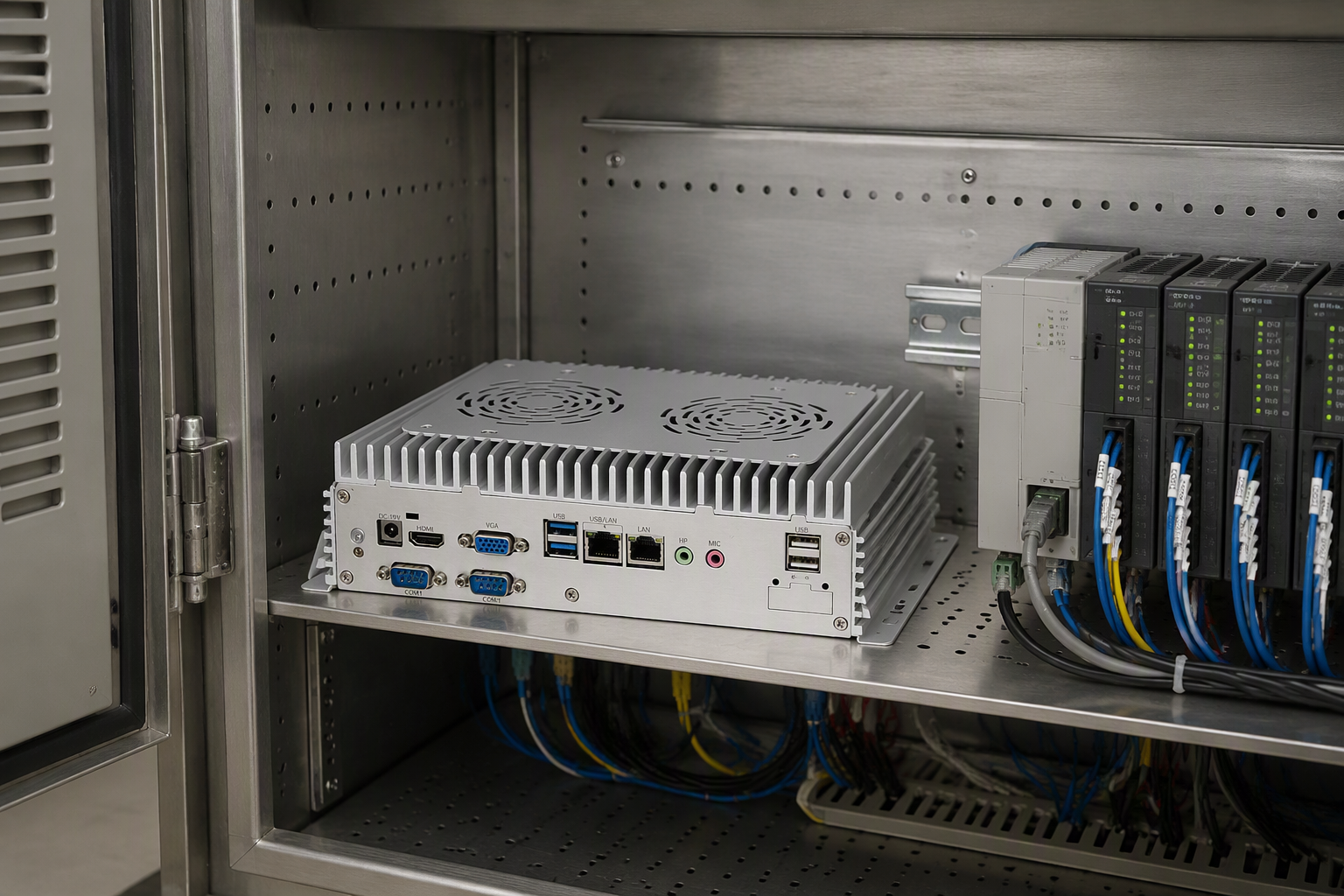

Figure 2. A BPC-102H industrial box PC monitoring a PLC and I/O bank inside a control cabinet.
Automation now encompasses highly sophisticated automated quality assurance. Machine vision systems utilize high-speed industrial cameras to inspect products on an assembly line for microscopic defects. Analyzing high-resolution images in milliseconds requires immense computational bandwidth. High-performance computing systems equipped with 8th to 12th generation multi-core processors process this visual data instantly. If a defect is detected, the system immediately triggers a mechanical arm to reject the faulty item. This guarantees that only flawless products reach the end consumer.
Feature Specification | Standard Commercial PC | Industrial Box PC |
|---|---|---|
Cooling Mechanism | Active fan cooling, highly prone to dust ingress | Fanless passive cooling with completely sealed chassis |
Operating Temperature | 0°C to 35°C strictly climate-controlled | -20°C to 60°C wide temperature support |
Power Input | Fixed AC power, vulnerable to industrial spikes | 9V to 36V DC wide voltage input with overcurrent protection |
Legacy Connectivity | USB and standard LAN only | Isolated RS-232/422/485 serial ports and Digital I/O |
Extracting data from decades-old legacy machines and transmitting it to modern analytical platforms is a formidable engineering challenge. Specialized gateway hardware is the key to unlocking this trapped operational data.
Historically, factory floors operated on Operational Technology networks designed strictly for closed machine control. In contrast, corporate offices operated on open Information Technology networks connected to the cloud. An industrial gateway serves as the vital bridge connecting these two isolated worlds. By deploying a fanless embedded computer as an IoT gateway, facilities can securely extract operational data from the factory floor and push it to IT servers for high-level business intelligence analysis. Crucially, it achieves this without exposing the vulnerable OT network to external cybersecurity threats.

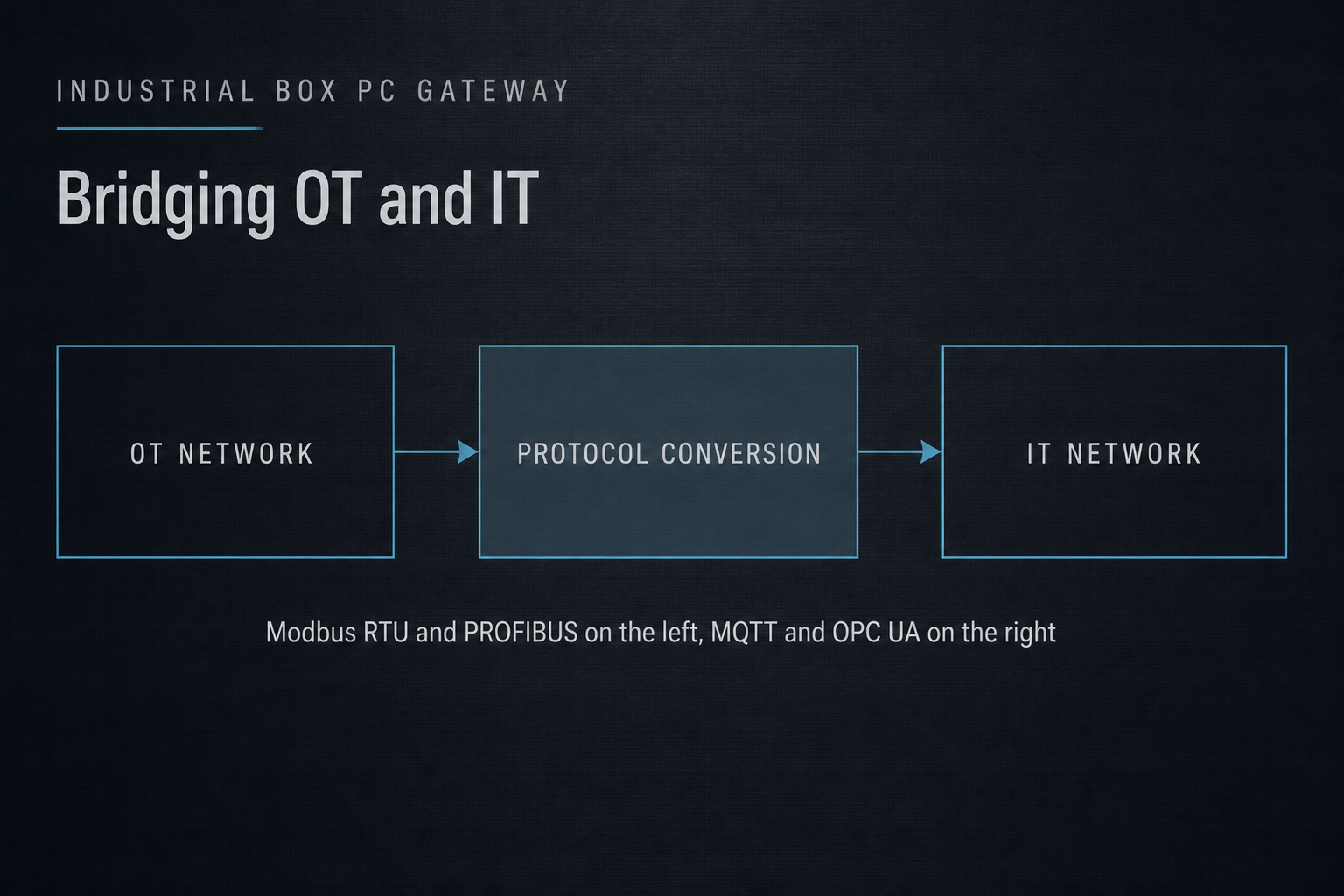

Figure 3. Data path from legacy machines through an industrial box PC gateway to IT systems.
Factory floors are notoriously fragmented. They often feature a chaotic mix of brand-new robotics and decades-old machinery that speak entirely different digital languages. Legacy equipment typically utilizes serial-based protocols like Modbus RTU or PROFIBUS. Conversely, modern cloud platforms demand lightweight internet-based protocols like MQTT or OPC UA. Industrial gateway devices excel at protocol conversion. Utilizing diverse physical I/O ports, they connect to older machines, read the legacy data, instantly translate it into modern IoT protocols, and aggregate the disparate data streams into a single unified pipeline.

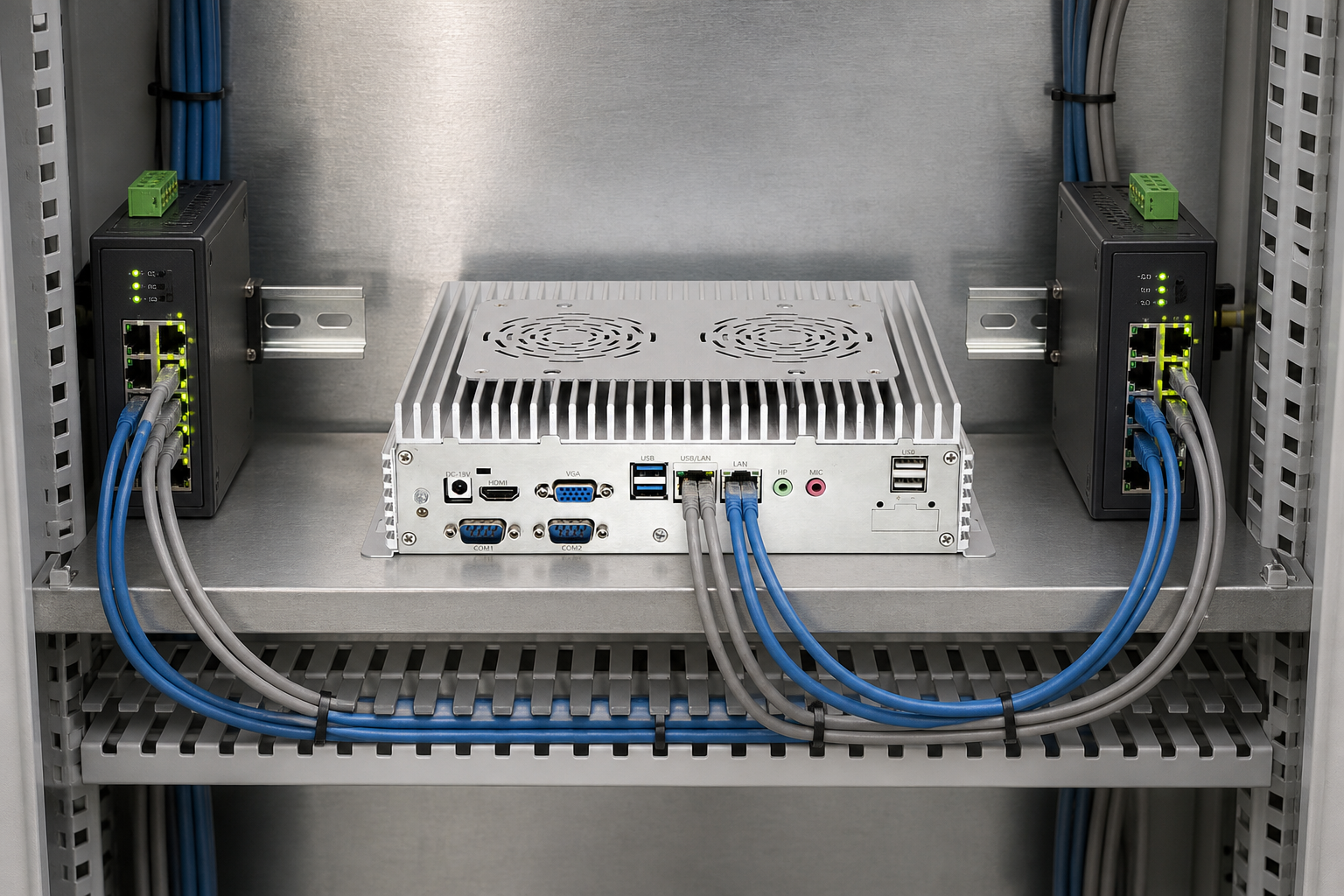

Figure 4. A BPC-102H with its LAN and USB/LAN ports feeding two separated network segments.
Factory floors are notoriously fragmented. They often feature a chaotic mix of brand-new robotics and decades-old machinery that speak entirely different digital languages. Legacy equipment typically utilizes serial-based protocols like Modbus RTU or PROFIBUS. Conversely, modern cloud platforms demand lightweight internet-based protocols like MQTT or OPC UA. Rugged edge devices excel at protocol conversion. Utilizing diverse physical I/O ports, they connect to older machines, read the legacy data, instantly translate it into modern IoT protocols, and aggregate the disparate data streams into a single unified pipeline.
Selecting the correct hardware requires strict alignment with your specific application requirements. Over-specifying wastes your IT budget, while under-specifying leads to system lag and eventual failure. Use the following criteria as a baseline standard for your next deployment.
The true value of an industrial computer lies in its ability to interface directly with external factory equipment. When specifying a compact industrial control host, prioritize the following hardware interfaces:
Serial Ports: Absolutely essential for connecting to legacy PLCs and CNC machines. Look for BIOS-configurable RS-232, RS-422, and RS-485 ports with surge isolation.
Multiple Gigabit LAN: Dual or quad Ethernet ports powered by reliable Intel controllers are non-negotiable. They allow the device to connect to the OT network on one port and the IT network on another to maintain strict physical network segregation.
Digital I/O: Isolated GPIO interfaces allow the PC to directly trigger relays, sound alarms, or read simple sensor states without needing an intermediary PLC.
For standard IoT Gateways, data aggregation and protocol conversion are not highly resource-intensive tasks. Power-efficient processors, such as the Intel Celeron J1900 or J4125 series, are highly recommended here. They generate minimal heat, which ensures the longevity of the passive cooling design. However, for Machine Vision and complex SCADA applications requiring real-time image processing, higher compute capacity is mandatory. In these demanding scenarios, Intel Core i5 or i7 processors are necessary to prevent processing bottlenecks.
Project requirement | What to confirm |
Temperature inside the cabinet | Wide-temperature rating measured at the mounting position, including summer peaks |
Legacy equipment and protocols | Serial port count and RS-232/422/485 configuration for Modbus RTU, PROFIBUS or similar |
OT / IT network separation | Dual or quad Gigabit LAN so the factory and office networks stay physically separate |
Power quality at the panel | Wide-voltage DC input range plus overvoltage, overcurrent and reverse-polarity protection |
Compute profile | Processor sized for gateway duty, or for machine vision and SCADA workloads |
Service and lifecycle | Locked Bill of Materials, revision control and the length of the support commitment |
Recent market analyses indicate a massive paradigm shift in industrial automation. Computing power is rapidly migrating from centralized cloud servers directly to the edge of the network. Facilities now demand localized processing to eliminate latency and bandwidth bottlenecks.
Edge AI integration is leading this technological charge. Future hardware architectures increasingly feature built-in Neural Processing Units or specialized Edge GPUs. This allows local hosts to execute complex inferencing algorithms in milliseconds. For example, predictive maintenance systems can now analyze acoustic data to detect bearing wear on a CNC spindle instantly, without ever sending a byte of data to the cloud.
Furthermore, the evolution of smart factories relies heavily on Time-Sensitive Networking and private 5G networks. These technologies ensure deterministic data delivery. They allow multiple robotic arms to synchronize operations with microsecond precision. Ultimately, the local control host is evolving into a hyper-converged infrastructure node that coordinates entire interconnected production cells autonomously.
Transitioning from commercial-grade computers to purpose-built industrial computers undeniably requires a higher initial capital expenditure. However, evaluating this investment through the lens of operational continuity reveals a highly compelling business case.
The true cost of computing hardware extends far beyond the initial purchase order. When a standard commercial PC inevitably fails on the factory floor, the primary financial drain is the resulting factory downtime. In high-volume manufacturing, a single hour of halted production can result in tens of thousands of dollars in lost revenue, wasted raw materials, and missed shipping deadlines. By eliminating moving parts, utilizing wide-temperature components, and securing internal connections, rugged devices drastically reduce the frequency of hardware-related production stoppages.
The commercial consumer electronics market is driven by rapid innovation, with motherboard designs changing every few months. For a manufacturing facility, this rapid turnover is a logistical nightmare. Changing hardware often requires re-certifying proprietary software and modifying system images. Industrial computer manufacturers address this by offering strict revision control and extended lifecycle support. This locked Bill of Materials practice ensures standard maintenance protocols and uninterrupted software compatibility for up to a decade.
Need help specifying an industrial box PC for an automation monitoring or gateway project? Share your equipment list, the protocols in use, and the temperature inside the cabinet, and the team can confirm which configuration is supported.
Reliable hardware is the non-negotiable foundation of any modern smart factory. Standard computers simply cannot survive the harsh realities of the manufacturing floor. Purpose-built industrial box PCs solve these systemic problems through robust, fanless engineering and specialized wide-temperature components.
Whether you are integrating high-speed machine vision, running localized SCADA software, or deploying an IoT gateway to connect legacy machines to the cloud, selecting the right computing architecture is critical. By investing in rugged technology with the appropriate serial interfaces and processing power, you protect your critical operational data and significantly boost overall efficiency. Upgrade your infrastructure today to future-proof your daily factory operations. To explore hardware configurations tailored to your specific deployment needs, browse the specialized industrial computing solutions at meetipc.com and select the system that best aligns with your automation goals.
The primary distinction lies in the physical interface and deployment method. An industrial panel PC is an all-in-one unit that includes a built-in touchscreen display, serving directly as a Human-Machine Interface for operators on the factory floor. Conversely, a box PC is a headless computer. It does not have a built-in screen and is typically mounted out of sight inside a DIN-rail control cabinet or equipment enclosure. It is designed to run entirely in the background to handle data processing or gateway routing.
Active cooling fans are a major point of failure in industrial settings. Fans pull in ambient air to cool internal components, which means they also pull in dust, metal shavings, oil mist, and moisture. Over time, this debris coats the motherboard, leading to thermal insulation, overheating, and electrical short circuits. Fanless designs utilize passive cooling, relying on a highly conductive aluminum chassis to dissipate heat. This allows the computer to be completely sealed, making it highly durable and virtually maintenance-free.
Factory electrical grids are notoriously unstable, frequently experiencing voltage drops when heavy machinery starts up, or power spikes during operation. Standard PCs require a stable AC input and will shut down or suffer power supply failure under these conditions. Industrial hardware utilizes wide-voltage DC power inputs, typically accepting anywhere from 9V to 36V. They also feature built-in overvoltage, overcurrent, and reverse polarity protection to ensure uninterrupted operation despite poor power quality.
Yes. Despite their rugged exterior, the internal architecture is based on standard x86 or ARM processors. They fully support standard operating systems including Windows 10 IoT Enterprise, Windows 11, and various Linux distributions like Ubuntu or Debian. This ensures seamless compatibility with existing SCADA software, ERP systems, and custom automation scripts without requiring specialized software development.
These systems are engineered for extreme longevity and continuous 24/7 operation. Because they utilize industrial-grade solid-state components, wide-temperature memory, and lack mechanical moving parts, they are highly resilient to physical wear. Typically, these systems boast a Mean Time Between Failures ranging from 50,000 to 100,000 hours. In practical terms, it is common for these devices to operate reliably in the field for 7 to 10 years.
