Industrial panel PC procurement begins with the machine, software, and operating environment. A terminal must fit the enclosure, communicate with existing equipment, and present information clearly throughout the working shift. Anhui Wenrui Metal Products Co., Ltd. welcomes inquiries from automation integrators, equipment manufacturers, industrial distributors, and project buyers seeking an integrated operator interface. This category brings computing, a screen, touch input, and connection ports into one equipment component.
The listed range includes OPC, IPRO, GFACE, GFACE-H, IPRO-SE, and FWS. These series should be compared individually because their published information differs. A fanless design, front protection rating, processor option, or mounting arrangement on one model should not automatically be applied to every product. Build the purchasing specification around the selected series and approved configuration, then use that specification for sample evaluation and repeat orders.
The IPRO fanless industrial touch panel PC combines an aluminum alloy enclosure with passive cooling. Its published screen range covers 10.4, 12.1, 15, 15.6, 17, 19, and 21.5 inches. The product description identifies IP65 front protection and embedded, wall, and VESA installation options. Front protection concerns the operator side; rear connectors and the completed cabinet still require appropriate environmental protection.
The GFACE front switch industrial panel computer places the power switch on the front. This layout can be useful when the rear enclosure sits inside a cabinet. Its specification distinguishes square-format and widescreen displays, offers capacitive or resistive touch, and lists serial, USB, and Ethernet connections. Match the switch position to the maintenance procedure and prevent accidental shutdown through suitable operating rules.
The OPC embedded touch screen HMI computer publishes a 15-to-32-inch screen family. It supports Windows and Linux configurations and describes capacitive touch with several mounting methods. This range is relevant when software needs a larger operator surface. Obtain the drawing and configuration sheet for the exact size rather than assuming that one mechanical layout covers every screen.
| Platform | Published distinction | Procurement focus |
|---|---|---|
| IPRO | Fanless housing and IP65 front panel | Thermal clearance, sealing at the cabinet face, selected display specification |
| GFACE | Front power switch and selectable touch technologies | Service access, glove trials, port allocation and voltage option |
| OPC | Embedded touch computers with a stated 15-to-32-inch range | Larger interface layouts, mounting geometry and software validation |

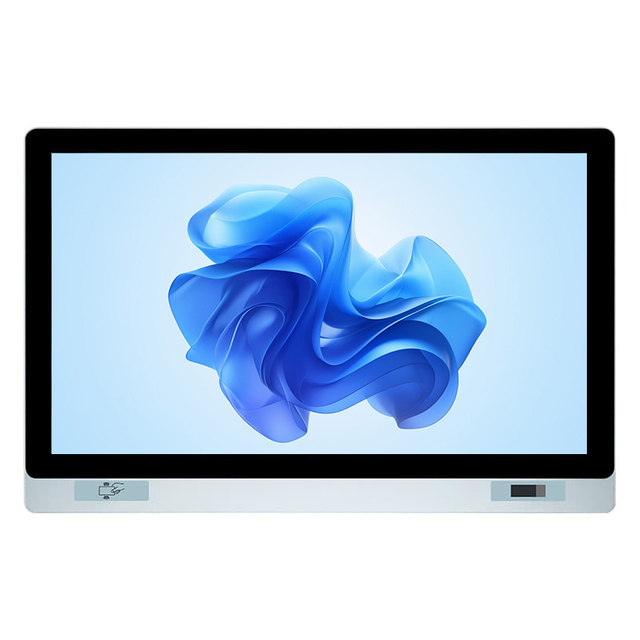

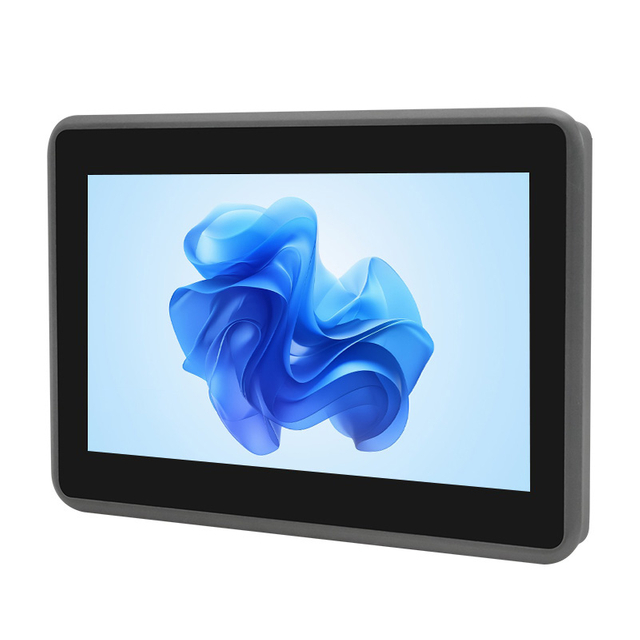

| GFACE-H, IPRO-SE, FWS | Additional listed product families | Request current model documentation before assigning detailed requirements |
An industrial HMI computer can show recipe values, batch status, alarms, and operating instructions at the machine. Keep essential actions visible without frequent page changes. Packaging-line buyers should test label printers, scanners, and PLC communication together because a responsive screen alone does not establish a reliable workflow. Use realistic product changes and fault conditions during the trial.
Quality stations often combine measurement input, inspection records, and a visual work instruction. Specify how operators identify a part, save results, and handle rejected items. Where cameras are involved, confirm bandwidth and software processing needs before choosing the CPU. The panel PC can present inspection information, but image processing capability depends on the selected hardware and application.
Warehouse terminals may require barcode input and access to a management system, while process stations emphasize trends and alarm visibility. Network availability, permissions, and recovery after interruption influence both uses. Agree which records remain local during a connection failure and how they synchronize later. These decisions help the integrator select storage, connectivity, and the software image.
A meaningful industrial panel PC quotation should identify the CPU, RAM, storage, touch type, display specification, operating system arrangement, power input, and mounting accessories. Two units with the same diagonal size may use different boards, screens, or serial-port configurations. Comparing only headline prices can therefore conceal an integration cost. Ask suppliers to separate standard equipment from optional modifications.
| Selection item | Information to provide | Useful sample check |
|---|---|---|
| Computing load | Application names, concurrent tasks and logging volume | Run the normal shift workload and inspect resource use |
| Touch operation | Gloves, cleaning conditions and required gestures | Test actual operators using production screens |
| Communication | PLC protocol, serial pinout, scanner and network requirements | Connect the real peripherals with production cables |
| Mechanical fit | Cutout, panel thickness and rear clearance | Install the sample in the intended enclosure |
| Electrical supply | Nominal DC voltage and measured site conditions | Confirm startup and recovery with the selected power arrangement |
| Environment | Cabinet temperature, contaminants and cleaning method | Check the agreed operating limits and protection scope |
Cabinet design affects the reliability of an embedded panel computer. Leave room for connector access, strain relief, heat transfer, and service removal. A tightly packed cabinet can expose otherwise suitable hardware to elevated temperature. Where a front seal is required, obtain the installation instructions and use the specified mounting method. Avoid treating a front-panel rating as proof that every installed surface is protected.
For bulk industrial panel PC orders, retain the approved hardware bill, BIOS settings, software image, and peripheral test record. Discuss how component changes will be communicated and whether a replacement must match the original mechanical drawing. A slightly cheaper first purchase may become expensive if later units require new wiring or software work. Lifecycle planning should include spare terminals, configuration backups, and a practical replacement procedure.
Customization discussions can cover enclosure appearance, logo placement, memory, storage, interfaces, display size, touch technology, and operating system preparation. Separate cosmetic changes from engineering changes. A logo request may leave the base hardware untouched, while a new cutout or connector layout requires dimensional review. Confirm feasibility, sample charges, minimum order quantity, and lead time against the actual project scope.
Provide the supplier with a cabinet drawing, connection list, software requirements, destination market, and expected order schedule. Define an acceptance checklist before approving a sample. The checklist should include startup behavior, touch calibration where relevant, display readability, communication stability, and safe service access. Approve the configured sample before placing a recurring OEM purchase order.
A panel PC can run HMI and supervisory software, but PLC replacement requires a separate control-system assessment. Deterministic timing, field interfaces, failure behavior, and any safety functions must be evaluated by the system designer. Select the computer for its assigned role in the complete machine architecture.
No. The published IPRO statement concerns the front panel. Rear ports, cable entries, enclosure joints, and mounting workmanship influence the completed system. Request the model-specific protection documentation and installation requirements before specifying cleaning or exposure conditions.
Name the required operating system release, application dependencies, licensing arrangement, and peripheral drivers. A general platform support statement does not establish compatibility with every version. Test the intended image on the selected CPU and board before approving production.
Reference the approved configuration, sample record, hardware revision, accessory list, and packaging requirements. Ask whether any component has changed since the previous shipment. Keeping these records allows purchasing teams and integrators to compare delivered units against the same acceptance criteria.
Send your interface layout, installation drawing, peripheral schedule, and estimated quantities to Anhui Wenrui Metal Products Co., Ltd. Use the Contact Us page to request an industrial panel PC configuration review and identify which requirements are essential for your equipment. A clear project brief supports a quotation that reflects installation work, software needs, and repeat supply expectations.
