Imagine walking past a vibrating CNC lathe on a bustling factory floor. A worker turns swiftly, their elbow grazes the control cabinet, and the screen goes black. The spindle stops abruptly. That single accidental bump against an exposed PC power switch just cost the plant thousands in scrapped material, broken tooling, and recalibration time. In chaotic manufacturing environments where heavy machinery vibrates and tools constantly change hands, standard commercial computers are a massive liability.
Flimsy plastic chassis and prominently placed buttons are essentially accidents waiting to happen. The definitive engineering solution to this vulnerability is upgrading to a purpose-built front switch industrial panel PC. By combining strategic physical placement, intelligent mechanical switch design, and deep-level BIOS configurations, facility managers can completely eliminate the risk of unintended power loss.
This comprehensive technical guide explores the practical hardware designs and system-level settings that make industrial computers virtually foolproof against accidental shutdowns.
Physical Protection: Ruggedized industrial PCs utilize recessed buttons, protective metal bezels, and long-press hardware requirements to prevent a passing elbow or dropped tool from triggering a shutdown.
Software Control: Operating systems like Windows allow IT administrators to remap the physical power switch to ignore momentary presses, neutralizing unauthorized contact.
BIOS Safeguards: Deep-level hardware settings dictate power button behavior, ensuring that only intentional and sustained physical pressure cuts the power at the motherboard level.
Industrial Advantage: Transitioning to purpose-built touchscreen monitors streamlines maintenance, optimizes tight electrical cabinet space, and secures critical manufacturing operations.

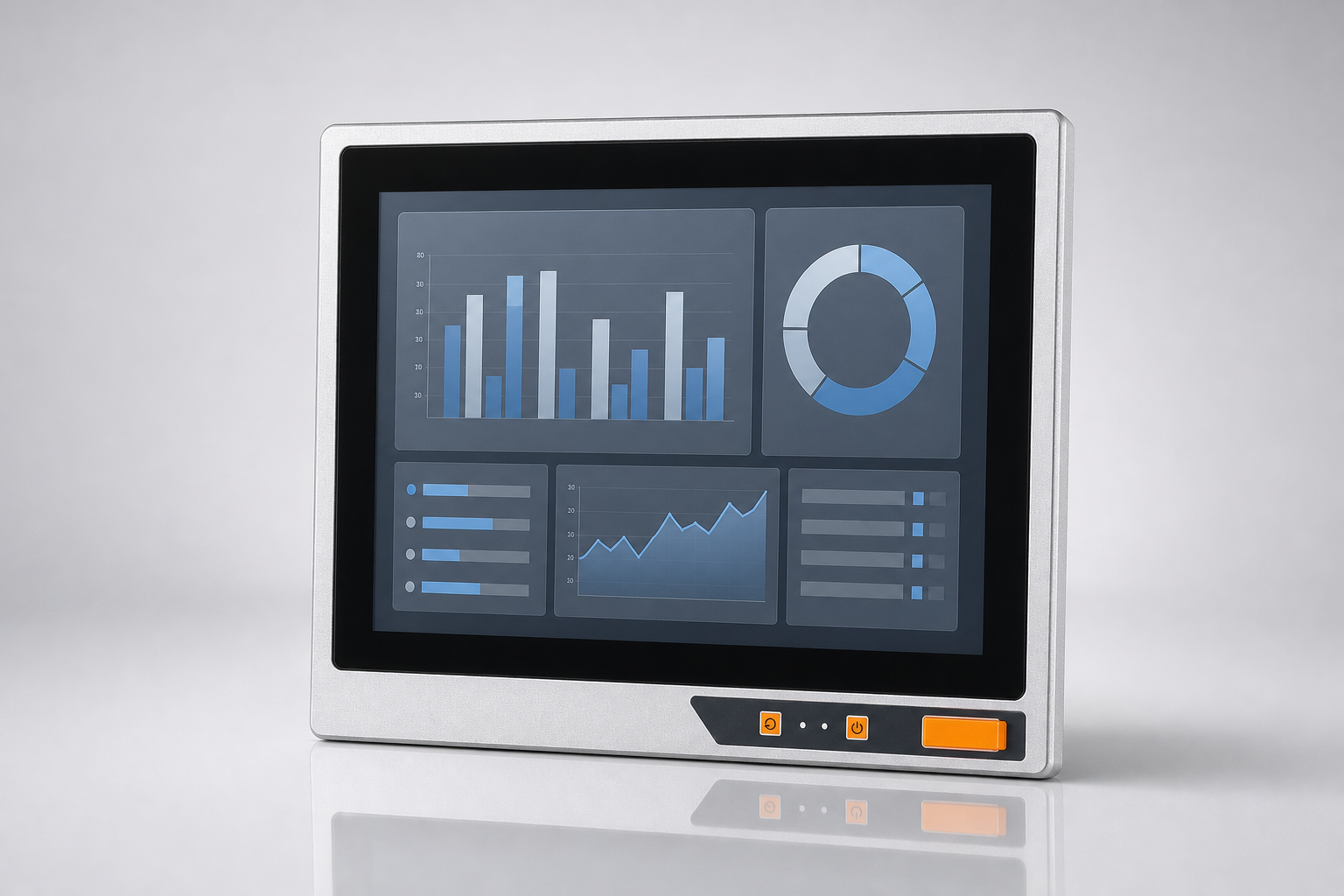

Figure 1. A GFACE front-switch industrial panel PC, with the power button recessed into the front bezel.
This article is written for plant engineers, panel builders and maintenance teams who are specifying an HMI or machine console for an environment where a bumped switch is expensive. The criteria below apply if the computer is mounted in a cabinet door or console where operators, cables, clipboards and cleaning equipment pass in front of it, or if a shutdown mid-cycle would scrap work in progress or corrupt a production record.
The industrial panel PC referenced in this article is the GFACE series: a front-switch panel PC whose power button sits recessed in the front bezel beside its function buttons and indicator LEDs, with an IP65-rated front face and fanless cooling, available with Intel Core i5 or i7 processors. The exact screen size, processor, memory, storage and mounting configuration vary by model, so confirm the available options against the current datasheet and your panel aperture before specifying.
In a standard office space, a sudden computer shutdown is a minor frustration. On an active assembly line, it is a critical operational failure. Relying on commercial-grade hardware introduces a severe vulnerability to the factory floor because of the exposed and highly sensitive power button.
Let us look at the current shift in heavy manufacturing. With the rapid deployment of Industry 4.0 and edge computing, facilities are processing gigabytes of real-time sensor data directly on the floor. Market analysts highlight a stark reality regarding this trend. Edge computing uptime is now non-negotiable. Unplanned downtime currently costs heavy industries exorbitant amounts per minute. As automated robotics rely entirely on uninterrupted local processing, hardware resilience has transitioned from an IT luxury to a fundamental baseline for survival.
When an accidental bump turns off a control system, operations halt immediately. A single shutdown event easily triggers a cascading failure across multiple production stages. The financial impact extends far beyond the few seconds it takes for the display to go black.
Recovering from an unexpected power-off is rarely simple. Operators must wait for the system to reboot. Machinery often demands manual recalibration. Software applications require a cold restart. Furthermore, materials that were mid-process during the power loss frequently fail strict quality assurance standards and must be scrapped entirely.
The difference between a graceful software shutdown and a hard power cut is stark. A graceful shutdown allows the operating system to safely close background processes, save active files, and park hard drive read and write heads. Conversely, an accidental physical button press often initiates an immediate power cut.
This sudden loss of electricity interrupts writing cycles. Active databases become deeply corrupted. Supervisory Control and Data Acquisition system logs—which are legally essential for compliance and performance tracking in many sectors—lose critical data points. Over time, repeated hard shutdowns irreversibly damage operating system files. This leads to chronic system instability, blue screens of death, and premature hardware failure.
Simply placing a button on the front of a screen is not enough. The mechanical engineering of the switch itself serves as the primary physical defense against inadvertent system halts.
Industrial hardware engineers specifically design the front power button to sit flush with or slightly below the surface of the metallic bezel. This recessed design is a brilliantly simple mechanical safeguard.

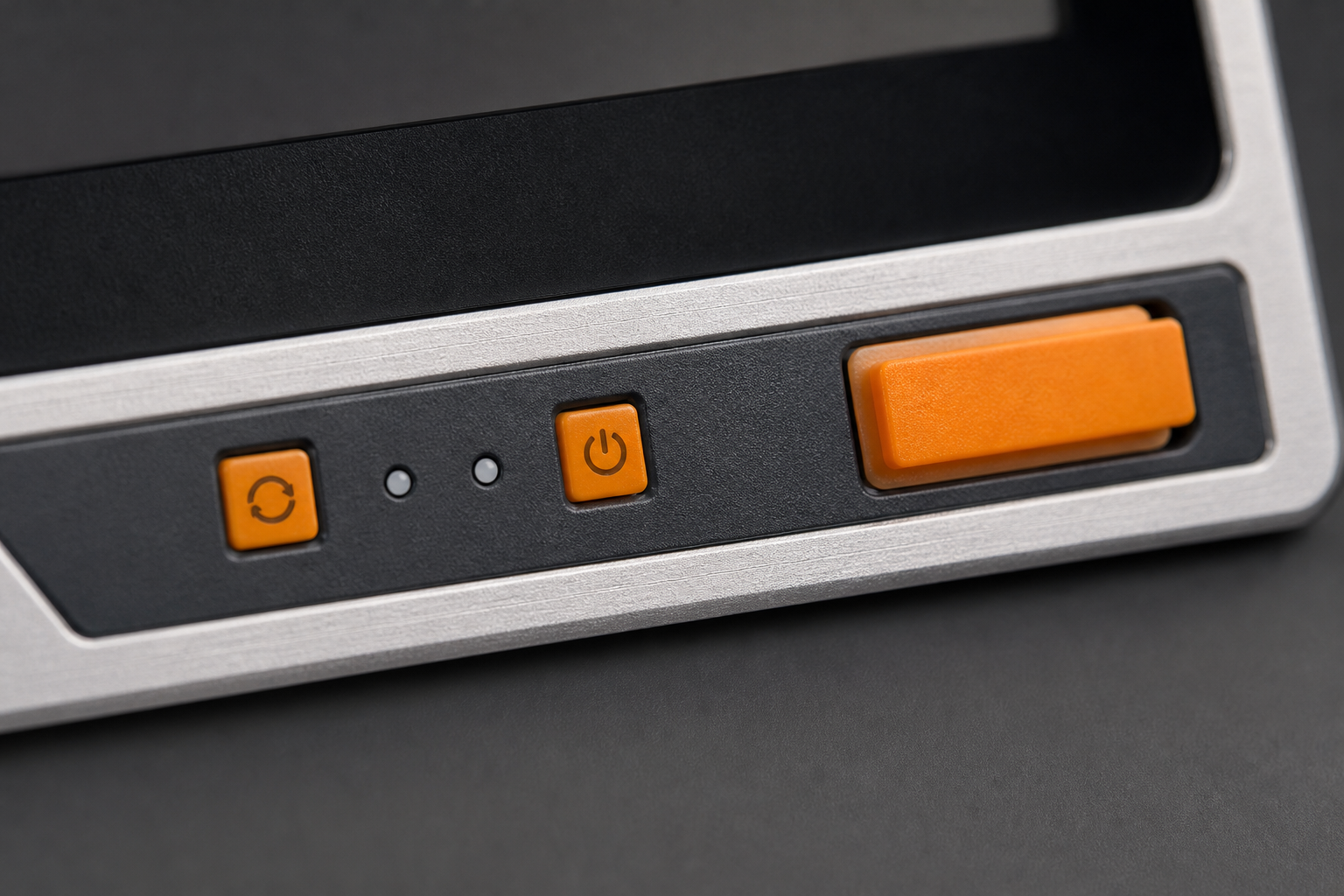

Figure 2. The recessed front power button on a GFACE panel PC, with its function buttons and indicator LEDs.
Imagine a worker walking past a machine with a heavy clipboard that slips and strikes the panel. The flat surface of the tough metal bezel absorbs the entire impact. Because the button does not protrude outward, flat objects and passing bodies simply cannot depress the switch. Activation requires a deliberate and focused press by a human finger.
Beyond recessed placement, the mechanical switches utilized in these industrial systems demand a higher actuation force. They offer stiff tactile resistance. A light or accidental tap will not depress the internal mechanism.
More importantly, these systems utilize hardware-level delays. A quick momentary press of the button is completely ignored by the motherboard. To initiate a hard shutdown, the operator must apply continuous pressure and hold the button down for a specific duration, typically three to five seconds. This specific long-press requirement virtually eliminates the possibility of a brief bump turning off the machine.
For highly sensitive environments requiring maximum security, physical access to the power button can be restricted entirely. High-end industrial PCs often feature optional physical safeguards.
These safeguards include transparent spring-loaded flip covers that must be manually lifted before the button can be reached. In military or highly sensitive control rooms, key-lock mechanisms are integrated directly into the bezel. The power button remains electronically disconnected until a supervisor inserts and turns a physical key. This ensures absolute and undisputed control over the system power state.
While physical hardware design provides the first line of defense against accidental power loss, operating system-level configurations offer a crucial secondary layer of security. For IT administrators deploying hardware in high-traffic commercial environments, standardizing power button behavior through software ensures that even intentional but unauthorized presses do not disrupt critical operations.
The most accessible method for neutralizing accidental physical button presses on a Windows system is through the native Power Options. This software safeguard ensures that if an operator bumps the front panel, the operating system simply ignores the Advanced Configuration and Power Interface signal.
To implement this basic safeguard, open the Control Panel and navigate to Hardware and Sound, then select Power Options. On the left-hand navigation pane, click on the option to choose what the power buttons do. Locate the dropdown menu next to the physical button setting and change it from Shut down to Do nothing. Save the changes.
Once applied, a standard momentary press of the power switch will no longer initiate the Windows shutdown sequence. This straightforward adjustment mitigates the vast majority of accidental shutdown risks in fast-paced industrial environments.
For enterprise deployments managing multiple human-machine interfaces, relying on manual Control Panel adjustments is inefficient and highly prone to user tampering. IT administrators can utilize the Local Group Policy Editor to enforce power management policies across all terminals.
By navigating to User Configuration, then Administrative Templates, and selecting Start Menu and Taskbar, administrators can enable the policy that removes and prevents access to the shutdown and restart commands. This configuration is highly recommended for public-facing kiosks and factory-floor terminals. It forces operators to rely on authorized maintenance personnel or centralized network commands to power down the machinery, completely bypassing local user control.
Software-level configurations in Windows are highly effective against momentary button presses, but they cannot override a hard hardware reset. If a heavy object leans against the power switch for several seconds, the motherboard will bypass the operating system and cut the power entirely. To prevent this, system integrators must adjust the BIOS or UEFI settings.
To fully grasp BIOS safeguards, it is necessary to distinguish between software-triggered shutdowns and hardware-level resets.
A software-level shutdown occurs when a quick press of the power button sends a signal to the OS, which gracefully closes applications and powers down. In contrast, holding the power button for four seconds triggers a forced hardware override. The motherboard cuts power to the CPU and storage drives instantly. This mechanism is designed as a fail-safe for frozen systems, but it is a major liability if triggered accidentally.
Industrial motherboards are engineered with deeper power management customization than standard commercial boards. By entering the BIOS interface during the boot sequence, technicians can dictate exactly how the motherboard interprets physical power button signals.
Under the Power Management Setup tabs, administrators will find settings related to the power button function. The standard configuration is often set to instant off. By changing this parameter to a four-second delay, the system will ignore any continuous pressure that lasts less than the specified duration. When combined with a recessed physical button design, this BIOS-level delay creates a virtually foolproof barrier against accidental hardware-level power cuts.
To clearly illustrate the structural differences, we can compare standard office equipment with purpose-built automation hardware.
Feature | Standard Commercial PC | Front Switch Industrial PC |
|---|---|---|
Power Button Placement | Exposed on top or side chassis | Integrated into the front bezel |
Switch Design | Protruding plastic, sensitive | Recessed metal, high tactile resistance |
Ingress Protection | None—vulnerable to dust and liquids | IP65 rated—dustproof and water resistant |
Mounting Style | Loose on a desk or floor | Flush panel mount inside sealed cabinets |
Operating Temperature | Standard room temperature | Wide temperature range for extreme environments |
Figure 3. Why button placement decides whether a power switch is pressed by accident.
Project requirement | What to confirm |
Panel aperture and mounting | Standard cut-out dimensions, plus VESA or panel-clip mounting and bezel thickness |
Front face protection | IP65 or higher front rating matched to your wash-down and dust regime |
Power button behaviour | Recess depth, required press duration and the available BIOS power-button settings |
Operator environment | Glove-friendly actuation, indicator LED visibility and screen brightness |
Cooling and cabinet space | Fanless design plus the clear air space needed behind the panel |
Compute profile | Processor class, memory and storage for your HMI, SCADA or vision workload |
Service and lifecycle | Front-service access, spare parts availability and the length of the supply commitment |
Transitioning to a purpose-built industrial panel PC addresses factory vulnerabilities directly. However, selecting the right equipment requires matching specific engineering parameters to your operational environment.
In factory automation, electrical cabinet space is a premium commodity. Control systems are frequently mounted inside tight and sealed enclosures alongside high-voltage components, motor drives, and programmable logic controllers. If a standard PC is placed inside such a cabinet, turning it on requires an operator to physically open the enclosure door. This exposes them to potential electrical hazards and introduces factory dust into a clean environment.
An front access industrial computer designed for panel mounting solves this logistical challenge perfectly. The display and all necessary operator controls sit flush on the outside of the cabinet door, while the computing hardware remains protected inside. When selecting these units, look for ultra-thin bezels and standardized VESA or panel clip mounting options to ensure a seamless fit.
Industrial hardware design must prioritize the operator workflow without sacrificing computing power. Combining a responsive capacitive touch screen with an easily accessible front power button creates a seamless interface.
For demanding applications like real-time visual inspection or 3D CAD rendering on the floor, you need robust processing. Engineering units like the GFACE Series feature Intel Core i5 or i7 processors. Operators wearing thick protective gloves can easily locate the power control when authorized maintenance is required, without the risk of accidentally triggering it during routine touchscreen operations.
The integration of a front switch is just one component of a broader ruggedized architecture. When selecting an embedded touchscreen monitor PC, verify the ingress protection rating. These units should feature fanless cooling systems that prevent metallic dust and debris from being sucked into the motherboard.
Furthermore, ensure the front bezels are strictly tested for IP65 ratings. This guarantees that neither high-pressure water jets nor fine particulate matter can penetrate the chassis through the power switch housing during aggressive wash-down procedures.
The practical benefits of specialized front-access power controls become highly evident when analyzing specific industrial deployment scenarios. Different sectors face unique environmental hazards that constantly threaten system uptime.
In heavy manufacturing and CNC machining, the working environment is chaotic. Metal shavings, cutting fluids, and heavy tools are constantly in motion. Machine operators frequently lean over control panels or move heavy materials past the screen. A front switch protects against these specific hazards. If a machine loses power during a precision CNC cut, the raw material is often ruined and the cutting tool may snap. Hardware-level power protection directly prevents these costly material losses.

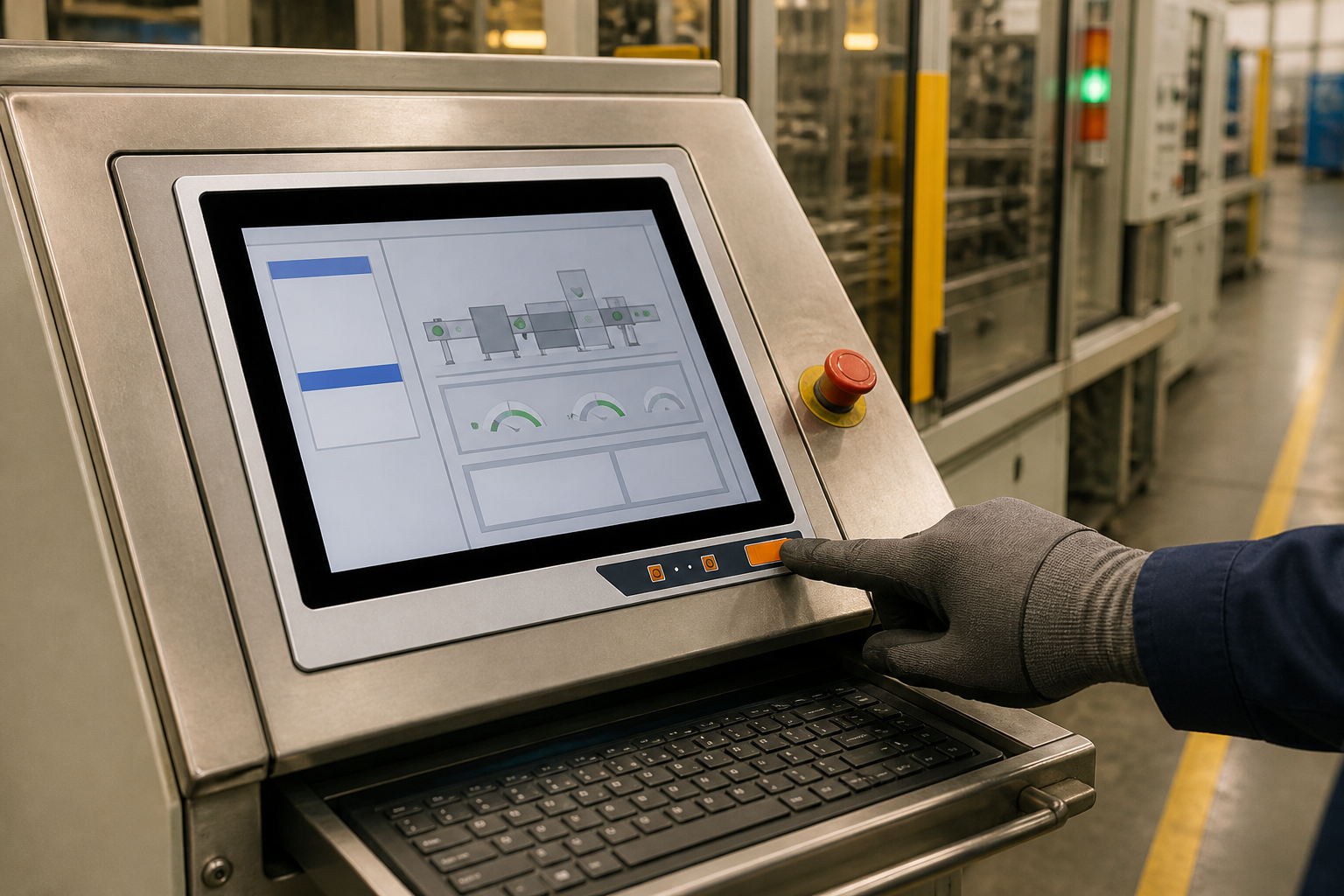

Figure 4. An operator deliberately pressing the recessed front power button on a GFACE panel PC in a control console.
Public-facing environments, such as airport check-in kiosks or automated ticketing machines, face the constant threat of vandalism and unauthorized tampering. In these scenarios, the physical power button must be accessible to maintenance staff but entirely secure from the general public. Lockable front-panel covers ensure that curious individuals cannot turn off the kiosk.
In pharmaceutical manufacturing and semiconductor cleanrooms, hygiene and environmental control are paramount. Equipment in these zones must undergo rigorous wipe-downs with harsh chemical sanitizers. Standard PC power buttons feature physical gaps where liquid can seep into the internal circuitry. Industrial front-access computers utilize flush buttons covered by waterproof membranes, allowing cleaning staff to aggressively sanitize the panel without causing short circuits.
Need help specifying a front-switch industrial panel PC? Share your panel aperture, the wash-down regime and the duty cycle of the machine it will control, and the team can confirm which configuration is supported.
Accidental shutdowns cause severe and costly downtime in modern factories. Standard computers simply lack the necessary mechanical and environmental protection to survive in these fast-paced and unpredictable settings.
Purpose-built industrial panel PCs solve this critical operational problem at the root. By combining recessed tactile front switches with robust software and BIOS-level locks, facility engineers can completely prevent careless errors from halting production. This dual-layered approach ensures your manufacturing lines, public kiosks, and critical control rooms keep running smoothly.
Do not let a bumped button ruin your production quota or damage your tooling. Secure your facility operational stability by upgrading to rugged, front-access hardware designed for maximum reliability. Evaluate your current factory floor vulnerabilities and explore the robust industrial computing solutions available at meetipc.com to find the exact configuration that matches your performance and environmental requirements.
Yes. You can modify the power button behavior by navigating to the Windows Power Options and setting the physical button action to do nothing. This effectively neutralizes momentary accidental presses at the software level. However, holding the physical button down for several seconds will still trigger a hardware-level hard reset mandated by the motherboard, unless this specific delay function is modified within the system BIOS.
A front access industrial panel PC is a highly ruggedized computing system specifically engineered to be integrated into electrical panels, control cabinets, or heavy machinery consoles. It consolidates all essential operator controls—including the primary power switch and maintenance ports—onto the front-facing bezel. This architectural design allows technicians to manage the PC without requiring physical access to the rear of the machine or opening sealed enclosures.
Embedded computing systems are rarely used for basic administrative tasks. They are typically tasked with running critical automation software, real-time machine monitoring, or continuous database logging. A sudden power loss can severely corrupt active databases, cause synchronized machinery to crash mid-cycle, and result in unrecoverable data loss. The time required to reboot the system and recalibrate the machinery translates directly to lost revenue.
No. Recessed power buttons are ergonomically designed to be easily actuated by a deliberate human finger press. The button is engineered to sit perfectly flush with the surface level of the surrounding metal bezel. This specific geometry ensures that flat objects or dropped tools cannot make contact with the switch mechanism, while still allowing operators wearing gloves to intentionally power the system on when required.
When the local physical button is neutralized via Windows Group Policy or BIOS settings, reboots are typically handled through centralized network management software. IT administrators can send a remote restart command via Wake-on-LAN or dedicated mobile device management platforms. Alternatively, authorized maintenance personnel can use a hidden secondary reset switch located inside the locked electrical cabinet.
Not when engineered correctly. Industrial-grade front switches utilize specialized waterproof membranes and rubberized O-ring seals behind the button mechanism. This completely isolates the internal electrical contacts from the outside environment. As a result, the entire front panel maintains its strict IP65 rating, allowing for high-pressure wash-downs without any risk of liquid ingress through the switch housing.
