Does factory dust constantly crash your production line computers? I have investigated countless hardware failures on the factory floor. In almost every case involving standard commercial desktops, airborne particles relentlessly choke traditional cooling fans. This triggers sudden and incredibly costly hardware meltdowns. Fortunately, modern computing architecture offers a robust workaround. In this comprehensive guide, we will explore how ventless designs completely neutralize the threat of particulate ingress. This engineering approach keeps your operations running smoothly, even in the most punishing industrial environments.
No Moving Parts: Eliminating cooling fans removes the need for intake and exhaust vents. These vents act as the primary entry points for airborne debris.
Passive Cooling Technology: A passively cooled system uses an extruded aluminum chassis as a heavy-duty heat sink. This dissipates thermal energy safely into the surrounding air.
Sealed Chassis Design: True industrial enclosures feature specific Ingress Protection ratings. This prevents microscopic particle ingress and ensures internal components remain pristine.
Lower Total Cost of Ownership: Preventing dust-induced short circuits and thermal throttling drastically reduces ongoing maintenance labor and unexpected downtime.

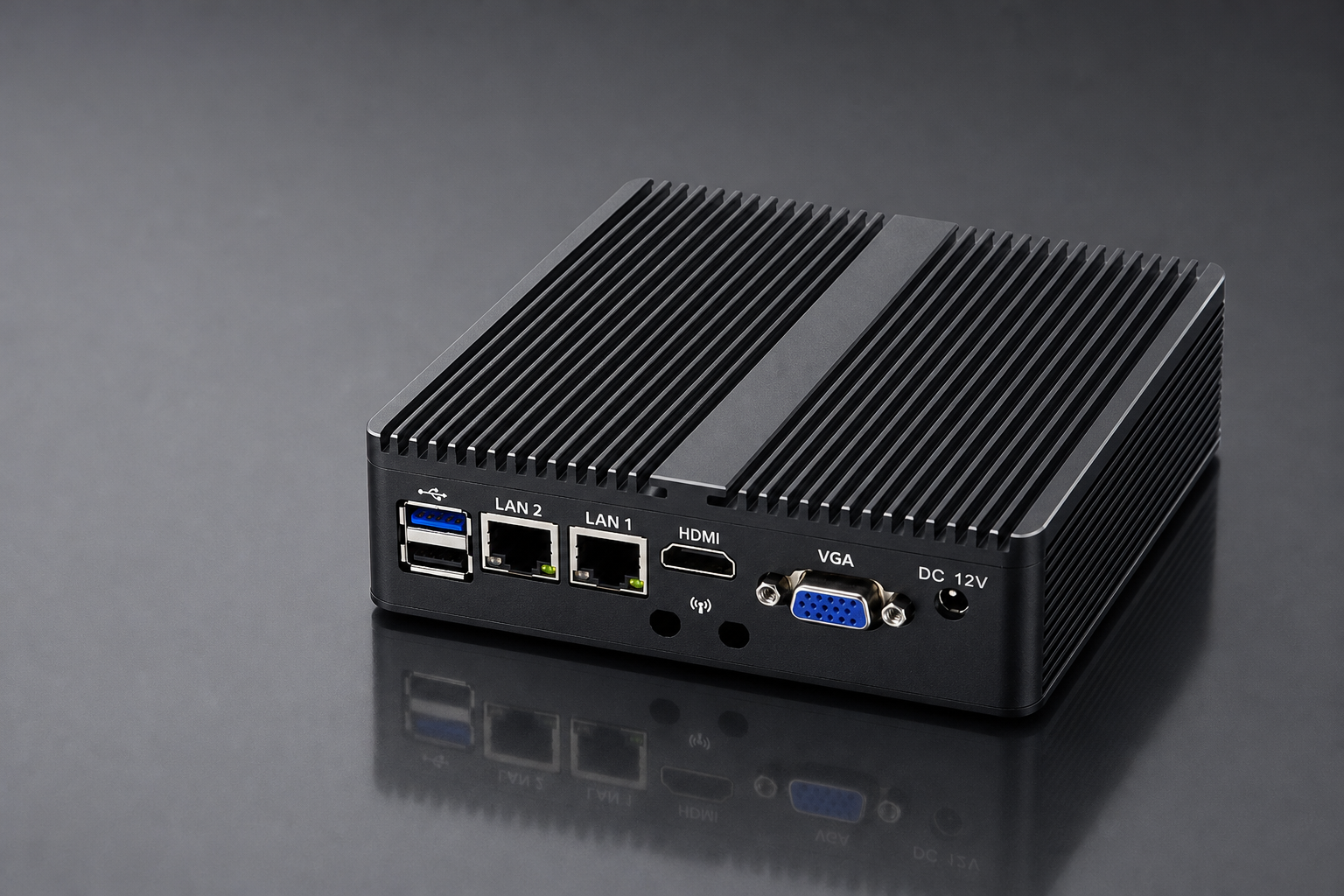

Figure 1. The NANO fanless Mini PC: a sealed, finned aluminium chassis with no fan and no intake grille.
This article is written for plant engineers, maintenance teams and IT managers who are replacing commercial PCs that keep failing in a dusty environment. The criteria below apply if your site has airborne dust, metal particles, flour, chaff or textile fibre in the air, if the computer has to sit in a control cabinet or on a machine frame, or if fan filters have become a recurring maintenance item.

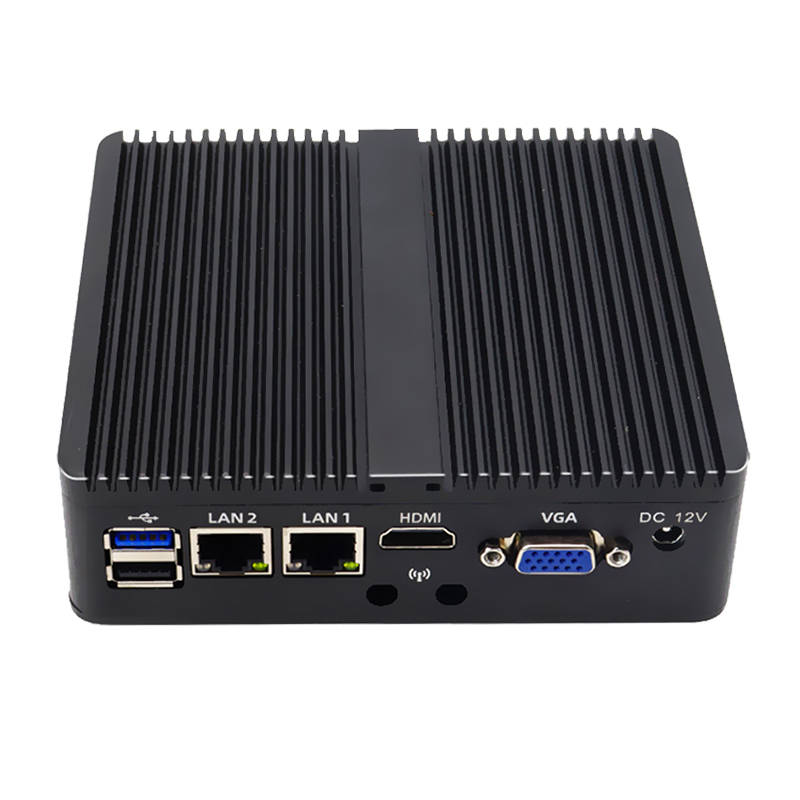

The fanless Mini PC referenced in this article is the NANO series: a compact extruded-aluminium chassis measuring 136 x 127 x 40 mm, cooled passively with no fan and no intake grille. It runs on Intel Celeron J1900 or N2840 processors with up to 8GB of DDR3L memory and dual storage (1 x mSATA plus 1 x SATA SSD or HDD), and provides dual Realtek Gigabit LAN, five USB ports, two COM ports (RS232 with optional RS485), HDMI and VGA output, and a wide operating range of -10C to 60C. Confirm the exact configuration and the wall or DIN-rail mounting option against the current datasheet before specifying.
Before diving into the mechanical specifics, we must understand why factory floors are becoming highly digitized. The rise of Industry 4.0 pushes massive amounts of data processing directly to the edge. Sensors, machine vision cameras, and automated quality control systems generate terabytes of data locally. Sending all this raw data to a remote cloud server introduces unacceptable latency for real-time manufacturing decisions.
Consequently, IT managers are forced to deploy computing power right next to the machinery. This exposes sensitive electronics to metal dust, oil mist, and extreme heat. Recent market intelligence reveals that environmental contamination is now the leading cause of edge hardware failure. Industry analysts note that standardizing on sealed architectures is no longer just a ruggedization tactic. It has become a strict strategic requirement to ensure continuous edge analytics and uninterrupted production.
Standard commercial computers belong in climate-controlled offices. Deploying them on a dirty factory floor introduces severe operational risks. To understand why industrial environments demand specialized hardware, we must examine how airborne particulates actively degrade standard computer components. Imagine a CNC lathe operator in the middle of a complex titanium cut. If the control PC ingests too much metal shaving and shorts out, the entire workpiece is ruined. Production halts immediately.
In standard desktop computers, dust accumulation is practically inevitable. Fine particles constantly settle on internal components like the motherboard, RAM, and CPU heatsinks. Over time, they form a thick layer of thermal insulation. Electronic components rely on exposed surface area to dissipate heat. When coated in a blanket of dust, this heat is trapped. Initially, the system will attempt to compensate through thermal throttling. This is a self-preservation process where the CPU intentionally slows its processing speed to lower temperatures. If the internal temperature continues to climb, the system will execute an abrupt thermal shutdown to prevent physical melting.
Traditional computers rely on active cooling mechanisms. They utilize high-speed fans to draw ambient air across internal heat sinks. In a standard office, this air is relatively clean. In stark contrast, a standard cooling fan acts as a miniature vacuum cleaner within a manufacturing facility. These fans pull in 30 to 50 cubic feet of air per minute. They actively drag sawdust, metal shavings, flour, and dirt directly into the chassis. The very mechanism designed to keep the computer alive actually accelerates its inevitable failure.
Not all dust is merely insulating. Much of industrial debris is highly conductive. In metal fabrication or carbon fiber manufacturing, the ambient air contains microscopic, electrically conductive shavings. These particles are drawn into a computer chassis and settle across exposed solder points on a motherboard. They create unintended electrical pathways. This results in immediate electrical short circuits, frequently destroying the motherboard permanently and leading to catastrophic data loss.
To mitigate the risks associated with airborne particulates, hardware engineers developed specialized computing solutions tailored specifically for harsh environments. The core of this modern solution is the fanless Mini PC. This device is engineered from the ground up to prioritize sustained reliability over consumer aesthetics.
A standard office PC utilizes commercial-grade components designed for a strictly controlled room temperature climate. Furthermore, these machines are built with planned obsolescence in mind. An industrial PC utilizes industrial-grade, wide-temperature components. Motherboards are manufactured with thicker printed circuit boards and robust solid capacitors. These components are capable of operating in extreme temperature fluctuations, often ranging from minus 20 degrees to 60 degrees Celsius. By completely removing the fan, there are zero moving parts to fail. This significantly increases the Mean Time Between Failures.
The compact form factor of these devices is a strict operational requirement rather than a stylistic choice. Industrial environments rarely have dedicated desk space for bulky tower computers. A small footprint allows these units to be integrated directly into space-constrained environments. They can be mounted on DIN-rails inside automated control cabinets, attached to the back of touchscreens via standard VESA mounts, or tucked into tight weatherproof outdoor enclosures.
The fundamental defense mechanism against internal dust accumulation is the complete elimination of airflow through the computer chassis. This structural isolation is achieved through advanced passive cooling technology.
The logic behind a fanless Mini PC is highly straightforward. Without an internal fan requiring a constant supply of fresh air, the chassis does not need intake grilles or exhaust vents. By engineering a solid, unperforated exterior, hardware designers completely remove the physical entry points for dust. As a result, the internal electronics are entirely isolated from the ambient environment.
Without a fan, the system relies heavily on the principles of thermodynamics to manage heat effectively.

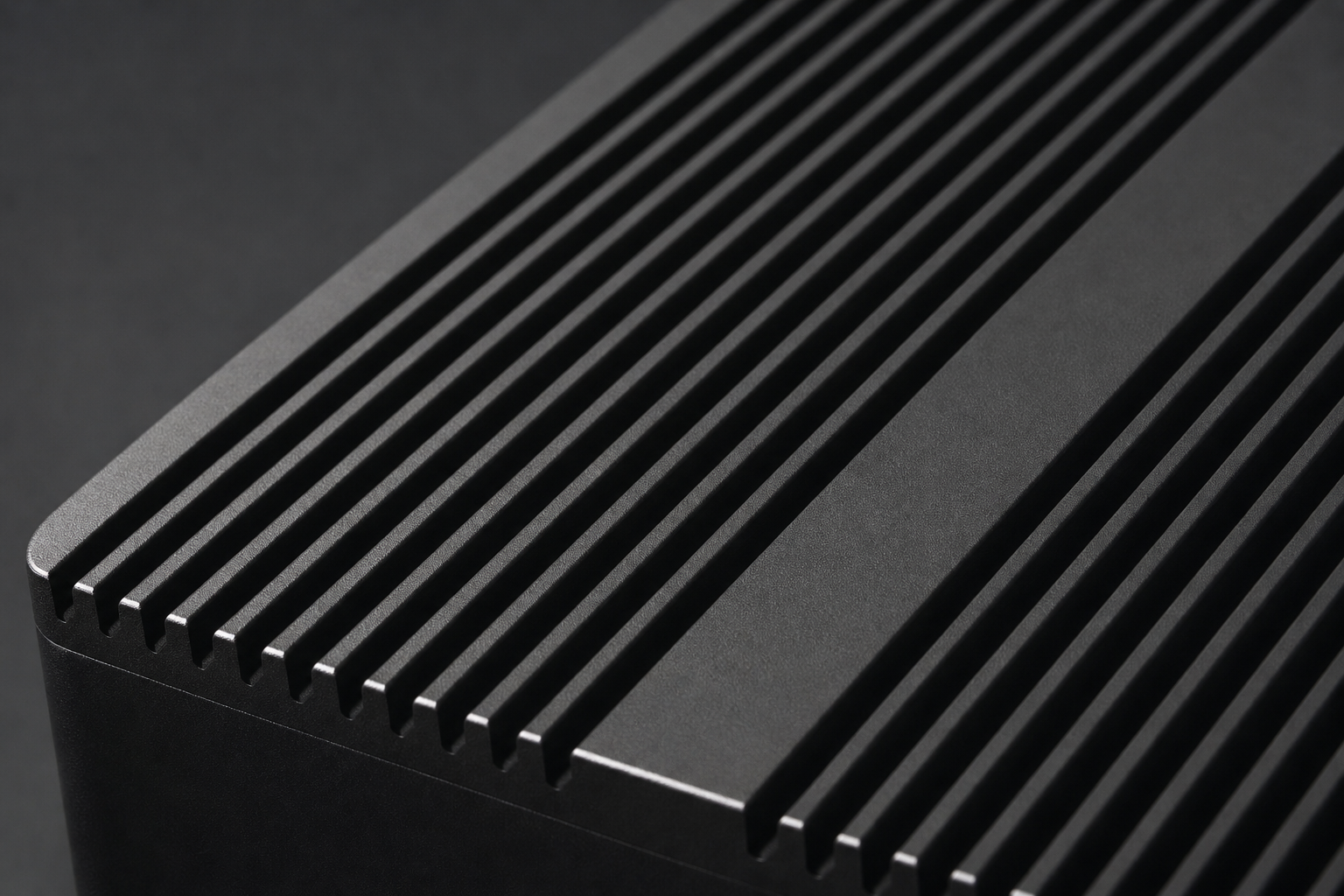

Figure 2. The extruded-aluminium fin field on a NANO fanless Mini PC - the whole chassis is the heat sink.
Conduction: The CPU generates the majority of the system heat. It is mated directly to a highly conductive thermal block, usually copper or aluminum, using industrial-grade thermal paste. This block transfers the thermal energy directly to the exterior metal chassis.
Convection: The exterior chassis features heavy-duty extruded fins. These fins dramatically increase the overall surface area of the metal. As the chassis heats up, it warms the surrounding ambient air. The warm air naturally rises, pulling cooler air over the fins from below. This creates a natural, fanless cooling cycle.
Removing the fan eliminates the most common point of mechanical failure in any computing device. When this fanless design is paired with Solid State Drives instead of traditional spinning hard drives, the entire system becomes fully solid-state. This architecture prevents dust ingress while rendering the unit highly resistant to heavy vibrations. You will frequently find these solid-state units thriving near stamping presses or mounted on automated guided vehicles.
Beyond the mere lack of vents, true industrial computers employ specific structural engineering tactics to guarantee environmental isolation. Decision-makers must look for specific certifications and build materials when evaluating hardware for dirty environments.
Ingress Protection ratings are the international standard for defining the sealing effectiveness of electrical enclosures. The first digit indicates protection against solids like dust. The second digit indicates protection against liquids.
IP Rating | Solid/Dust Protection Level | Liquid/Water Protection Level | Ideal Use Case |
|---|---|---|---|
IP50 | Dust Protected (Limited ingress permitted, no harmful deposits) | No special protection | Clean manufacturing, indoor logistics |
IP65 | Dust Tight (No ingress of dust whatsoever) | Protected against low-pressure water jets | CNC machining, woodworking, outdoor IoT |
IP67 | Dust Tight (No ingress of dust whatsoever) | Protected against temporary immersion in water | Food processing, washdown areas, agriculture |
For environments plagued by heavy particulate matter, an IP65 or IP67 rating ensures that the unit is entirely dust-tight. This provides unparalleled operational peace of mind.
The chassis material is critical for both physical durability and thermal management. High-quality industrial PCs utilize extruded aluminum. Engineers choose aluminum for its excellent thermal conductivity, allowing it to act as an efficient heat sink. It also boasts a high strength-to-weight ratio and natural resistance to oxidation, making it ideal for damp or chemically harsh environments.
A sealed chassis is effectively useless if dust can easily bypass the armor through open USB or LAN ports. Industrial PCs protect these vulnerable areas using specialized engineering. For extremely harsh environments, standard ports are replaced with M12 locking connectors. These feature threaded, waterproof, and dustproof seals. For standard port layouts, specialized rubberized dust covers are utilized to plug unused connections tightly.
For IT managers and procurement officers, justifying the transition to specialized industrial hardware requires a clear understanding of the Return on Investment. Consumer PCs undoubtedly have a lower initial purchase price. However, their operational costs in harsh environments quickly surpass those of purpose-built industrial units.
Figure 3. How dust reaches the electronics in a fan-cooled computer compared with a fanless chassis.
Feature | Standard Actively Cooled PC | Fanless Industrial PC |
|---|---|---|
Cooling Mechanism | Internal fans pulling ambient air | Passive convection via aluminum fins |
Dust Resistance | Poor (Acts as a vacuum for debris) | Excellent (Completely sealed chassis) |
Maintenance Labor | High (Requires monthly internal blowouts) | Zero internal maintenance required |
Vibration Tolerance | Low (Fan bearings and spinning drives fail) | High (100% solid-state architecture) |
Typical Lifespan | 1 to 2 years in dirty environments | 5 to 7 years in harsh environments |
The structural advantages of a sealed, fanless design make these computers the gold standard for a variety of challenging industries. Standard technology would perish in days under these conditions.
In metalworking facilities, the air hangs heavy with atomized cutting fluids, oil mists, and fine metal dust. A standard PC will ingest this mixture, creating a sticky, conductive sludge on the motherboard. Fanless PCs operate flawlessly in these hazardous zones. They process machine vision and telemetry data without risking internal contamination.
Woodworking shops and textile manufacturing plants produce massive amounts of fine, highly combustible particulate matter. If this dust builds up on a hot CPU inside a vented PC, it poses a severe fire hazard. A sealed chassis prevents combustible dust from ever making contact with high-temperature internal electronics. This ensures facility safety and regulatory compliance.
Agricultural environments involve dirt, chaff, and grain dust. Food processing plants deal with airborne flour and sugar, which can easily caramelize on hot internal components. Furthermore, food processing requires daily high-pressure chemical washdowns for sanitation. IP67-rated fanless PCs can withstand both the airborne flour during production and the subsequent washdowns without a single hiccup.
Project requirement | What to confirm |
Airborne dust and particulate load | Sealed, grille-free chassis and the IP rating that matches your cleaning regime |
Ambient temperature at the mounting position | Wide-temperature rating measured where the unit will actually sit, including summer peaks |
Mounting orientation and airflow | Clear air space around the fins, plus a wall, DIN-rail or VESA bracket that suits the installation |
I/O for legacy machinery | COM port count (RS232 / RS485), dual Gigabit LAN, USB count and display outputs |
Compute and storage profile | Processor class, memory ceiling and the mSATA / SATA storage mix the application needs |
Maintenance plan | Exterior fin-cleaning interval, and whether any filter or fan service is required |
Service life and supply | Component lifecycle, revision control and the length of the OEM support commitment |
Procuring hardware for harsh environments requires a departure from standard enterprise IT purchasing habits. When evaluating a ruggedized system, the focus must shift from pure peak performance to sustained reliability, thermal efficiency, and environmental compatibility. Selecting the correct unit involves analyzing processing architecture, industrial input/output configurations, and physical deployment constraints.
In passive cooling architectures, processing power is directly correlated with heat generation. This is measured in Thermal Design Power. Because these systems rely entirely on the chassis to dissipate heat, selecting a processor that matches your workload without exceeding the thermal limits of the enclosure is highly critical.
For foundational edge computing tasks, low-power processors are the optimal choice. If your deployment involves acting as an IoT gateway, running lightweight SCADA software, or performing simple data logging, an entry-level dust resistant compact industrial PC is ideal. Look for units equipped with an embedded Intel Celeron processor operating at a low 10 to 15 watt Thermal Design Power. This low heat output allows the system to remain highly stable even in environments where ambient temperatures reach 60 degrees Celsius.
Conversely, if the application involves machine vision or complex multi-axis CNC control, higher-performance processors are strictly required. These processors operate at a higher wattage. To safely accommodate this, the hardware manufacturer must utilize a larger extruded aluminum chassis with deeper cooling fins to increase the surface area for proper convection.
A standard consumer PC offers basic USB and display ports. These are vastly insufficient for a complex factory floor. A true industrial computer must seamlessly interface with legacy manufacturing equipment and modern industrial networks.
When specifying your hardware, carefully evaluate the need for the following industrial interfaces. Ensure the PC has native, hardware-level RS-232 or RS-485 COM ports for legacy PLC communication. Look for dual Gigabit LAN ports to ensure strict network segregation between the internal machine network and the enterprise cloud gateway. Additionally, isolated digital I/O ports are essential for direct hardware control, protecting the sensitive motherboard from rogue voltage spikes common in heavy machinery environments. A wide voltage power input, typically ranging from 9V to 36V DC, is also crucial to handle factory power fluctuations.
The physical installation of a fanless Mini PC directly impacts its ability to manage internal temperatures. Because passive cooling relies on natural air convection, the physical orientation of the cooling fins is paramount to the system survival.

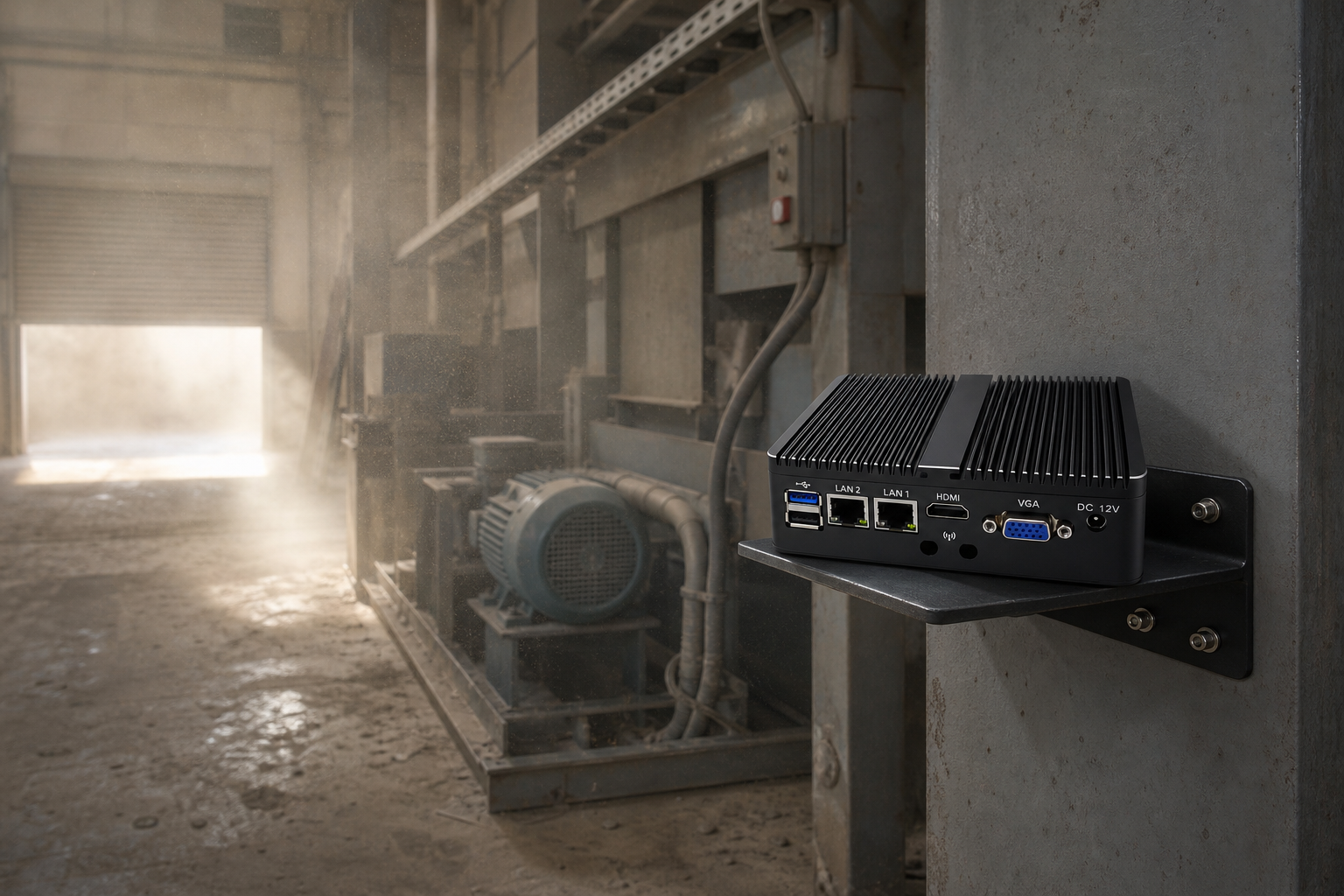

Figure 4. A NANO fanless Mini PC bracket-mounted in a dusty plant room, running without any air intake.
When mounting on a DIN rail inside a cramped control cabinet, ensure the external cooling fins are oriented vertically. This alignment allows heat to escape efficiently up and away from the unit. VESA mounting is ideal for human-machine interface applications, allowing the PC to be mounted directly behind a ruggedized monitor. Wall mounting provides a highly secure and vibration-resistant installation directly on a machine chassis.
A common misconception is that a fanless computer requires absolutely zero maintenance. While it is entirely true that internal maintenance is practically eliminated, the exterior of the unit still requires basic attention to maintain optimal thermal performance over the years.
The extruded aluminum chassis acts as the primary heat sink. Heat is transferred from the internal CPU to the outer casing, where it dissipates into the surrounding air. If a thick layer of industrial dust, flour, or sawdust is allowed to blanket the exterior of the chassis, that debris acts as a powerful thermal insulator.
If the cooling fins become completely filled with compacted debris, the surface area available for heat dissipation is drastically reduced. Facility managers should implement a periodic exterior wipe-down schedule. Wiping the exterior fins with a dry or slightly damp cloth every few months is usually sufficient. For environments with sticky particulates like oil mist combined with metal dust, a mild industrial solvent may be required to keep the aluminum fins exposed and breathing.
Inside the sealed chassis, high-grade thermal paste sits between the CPU die and the internal aluminum heat block. The purpose of this material is to fill microscopic air gaps and ensure maximum heat transfer.
Under constant high-temperature operation, all thermal compounds experience gradual degradation over a period of many years. Typically, high-quality industrial thermal interfaces will maintain integrity for 5 to 7 years. Most organizations will retire or upgrade the machine before thermal paste degradation becomes a measurable issue. However, IT administrators should proactively monitor CPU temperatures via the operating system to ensure thermal transfer remains optimal for deployments lasting over a decade.
When decision-makers compare standard commercial computers against industrial-grade fanless systems, the initial procurement cost of the industrial unit is invariably higher. This price delta is driven by the use of wide-temperature components, heavy extruded aluminum, and specialized engineering. However, evaluating hardware based solely on upfront costs is a deeply flawed methodology in industrial settings.
The true metric for hardware procurement is the Total Cost of Ownership. This factors in downtime, maintenance labor, and replacement cycles. Standard PCs require IT staff to physically remove the units, open the cases, and use compressed air to clean internal fans on a monthly basis. Fanless systems eliminate this recurring labor cost entirely.
When a standard PC fan fails due to dust accumulation, the system overheats and shuts down, halting the production line. In high-volume manufacturing, a single hour of downtime can cost tens of thousands of dollars. Because fanless systems eliminate the vacuum effect that pulls conductive dust onto the motherboard, their operational lifespan is significantly longer. A standard PC might survive 12 to 18 months in a woodworking facility. A properly specified fanless industrial PC can operate reliably for 5 to 7 years in the exact same environment.
No, provided the unit is deployed strictly within its specified operating temperature range. The engineering behind these devices relies on calculating the exact Thermal Design Power of the internal components. This is matched with an aluminum chassis that has enough surface area to dissipate that specific amount of heat. As long as the ambient air is not hotter than the maximum rated temperature, and the external cooling fins are not smothered by heavy debris, the system will remain thermally stable.
If your primary environmental hazard is fine, airborne dust, you should look for hardware with an Ingress Protection rating of IP50, IP65, or IP67. A rating of 5 indicates the unit is dust-protected. A rating of 6 guarantees the enclosure is completely vacuum-sealed and dust-tight. The second digit relates to moisture. IP65 can withstand low-pressure water jets, while IP67 can survive temporary submersion.
Not inherently, but they are engineered differently. To prevent overheating without active airflow, fanless PCs typically utilize mobile or embedded versions of processors rather than high-wattage desktop chips. These embedded processors are highly efficient and designed to deliver sustained performance without generating excessive heat. They provide more than enough computational power for industrial automation, IoT gateways, and edge analytics without sacrificing reliability.
Not automatically. While eliminating ventilation holes makes a computer highly resistant to dust, achieving a waterproof rating requires additional engineering. To be waterproof, the chassis must utilize specialized rubber gaskets, and all standard ports must be replaced with locking, waterproof connectors. If you require protection against liquids, you must specifically source an IP65 or IP67-rated system.
When properly specified and installed, a high-quality fanless industrial PC typically boasts a lifespan of 5 to 7 years in harsh, dusty environments. Because there are no moving parts to wear out and no internal dust buildup to cause short circuits, the hardware frequently outlasts the software or operating system it was originally deployed to run. Many units easily exceed 50,000 hours of continuous operation.
Yes, it is a legitimate risk in specific industries. In facilities like woodworking shops, textile mills, or grain processing plants, the ambient dust is highly combustible. If this combustible dust is pulled into a standard vented PC and settles on a CPU or power supply running at high temperatures, it can ignite. A sealed fanless PC mitigates this risk entirely by keeping combustible materials away from hot internal electronics.
Need help specifying a fanless Mini PC for a dusty plant? Share the particulate load, the ambient temperature at the mounting position and the equipment you need to connect, and the team can confirm which configuration is supported.
Airborne dust and particulate matter act as silent killers for standard enterprise electronics. They quickly choke fans and insulate critical components, leading to inevitable failure. However, by leveraging the intelligent, ventless design of industrial computing architecture, facilities can completely neutralize this threat. Passive cooling technology keeps dangerous particles exactly where they belong—outside the system.
Upgrading to specialized, sealed hardware is not just a hardware purchase; it is an investment in uninterrupted productivity and lower maintenance costs. If you are ready to eliminate dust-related downtime and protect your production lines, explore the extensive catalog at MeetIPC. You can find the exact fanless hardware configuration tailored to your specific industrial requirements, ensuring total peace of mind in the harshest working environments.
