Stopping Industrial PC Crashes: Why DC Wide-Voltage Power Is Essential for Harsh Factory Automation

In any industrial automation line, CNC machining center, automated warehouse, or remote substation, the industrial PC serves as the master controller orchestrating sensors, machine vision cameras, and PLCs. Yet, when unexplained system freezes, spontaneous reboots, and database corruptions strike on the plant floor, engineers often spend days debugging software code or replacing memory modules—only to discover the true culprit is unstable DC power delivery.

Unlike climate-controlled server rooms with clean, isolated AC power feeds, real-world factory floors operate in noisy electrical environments. High-power servo motors draw heavy startup inrush currents that drag down local line voltage; autonomous mobile robots (AGVs/AMRs) run on chemical batteries whose terminal voltage steadily decays during long shifts; and outdoor telemetry stations suffer voltage drops across hundreds of meters of cabling.

When powered by standard commercial 12V (±5%) power inputs, even minor voltage dips trigger system brownouts and shutdown cycles. To eliminate these costly disruptions, meetneng equips its AN-BOX series with industrial-grade wide voltage industrial PC architecture supporting 9V to 36V DC inputs. This guide breaks down the engineering physics of DC voltage instability, examines why wide-voltage hardware is mandatory for rugged edge computing, and provides practical criteria for specifying line-side power.

1. Why Industrial DC Power Is Inherently Unstable

In industrial facilities, DC power rails rarely deliver a steady, flatline voltage. Three primary electrical phenomena constantly threaten the operating stability of line-side computing hardware:

A. Inductive Motor Inrush & Instantaneous Voltage Sags

Whenever high-inertia inductive loads—such as large conveyor motors, hydraulic pumps, pneumatic compressors, or industrial welding robots—switch on, they draw starting currents 5 to 8 times their rated steady-state values. This instantaneous surge creates a severe voltage sag across shared DC distribution buses. A nominal 12V bus can easily plummet to 8.5V for several hundred milliseconds, causing fixed 12V controllers to trip their under-voltage lockout (UVLO) circuits and crash instantly.

B. Battery State-of-Charge (SoC) Voltage Decay in Mobile Fleets

Autonomous Mobile Robots (AMRs), Automated Guided Vehicles (AGVs), electric forklifts, and mining trucks rely on onboard lithium-ion or lead-acid battery packs. A nominal 24V battery pack may read 28.8V while freshly charged on floating voltage, but gradually drops to 21.0V or lower during heavy discharge under load. During cold-weather vehicle engine or hydraulic cranking, battery voltage dips even further. Computing equipment must handle this wide operating envelope without unexpected restarts.

C. Voltage Drop Across Long-Distance DC Cable Runs

In expansive manufacturing plants, photovoltaic solar farms, and trackside rail monitoring enclosures, power distribution panels are often located 50 to 200 meters away from edge devices. Wire resistance ($R = \rho \cdot L / A$) inevitably causes substantial ohmic voltage drop ($V_{drop} = I \cdot R$). A centralized 24V power supply may only deliver 16V to 18V at the far end of the terminal line.

D. Alternator Load Dumps & High-Voltage Inductive Spikes

When heavy electrical loads disconnect abruptly while generators or battery chargers are running, inductive energy stored in wiring collapses, generating high-voltage transient spikes (load dumps) reaching 30V to 60V. Standard consumer electronics lacking surge suppression will suffer instant motherboard component puncture.

2. Narrow-Voltage vs. Industrial Wide-Voltage Power Architecture

Understanding the difference between narrow fixed-input power circuits and industrial wide-voltage power supplies clarifies why consumer hardware consistently fails in the field:

3. Engineering Anatomy of Meetneng's 9V–36V DC Power Architecture

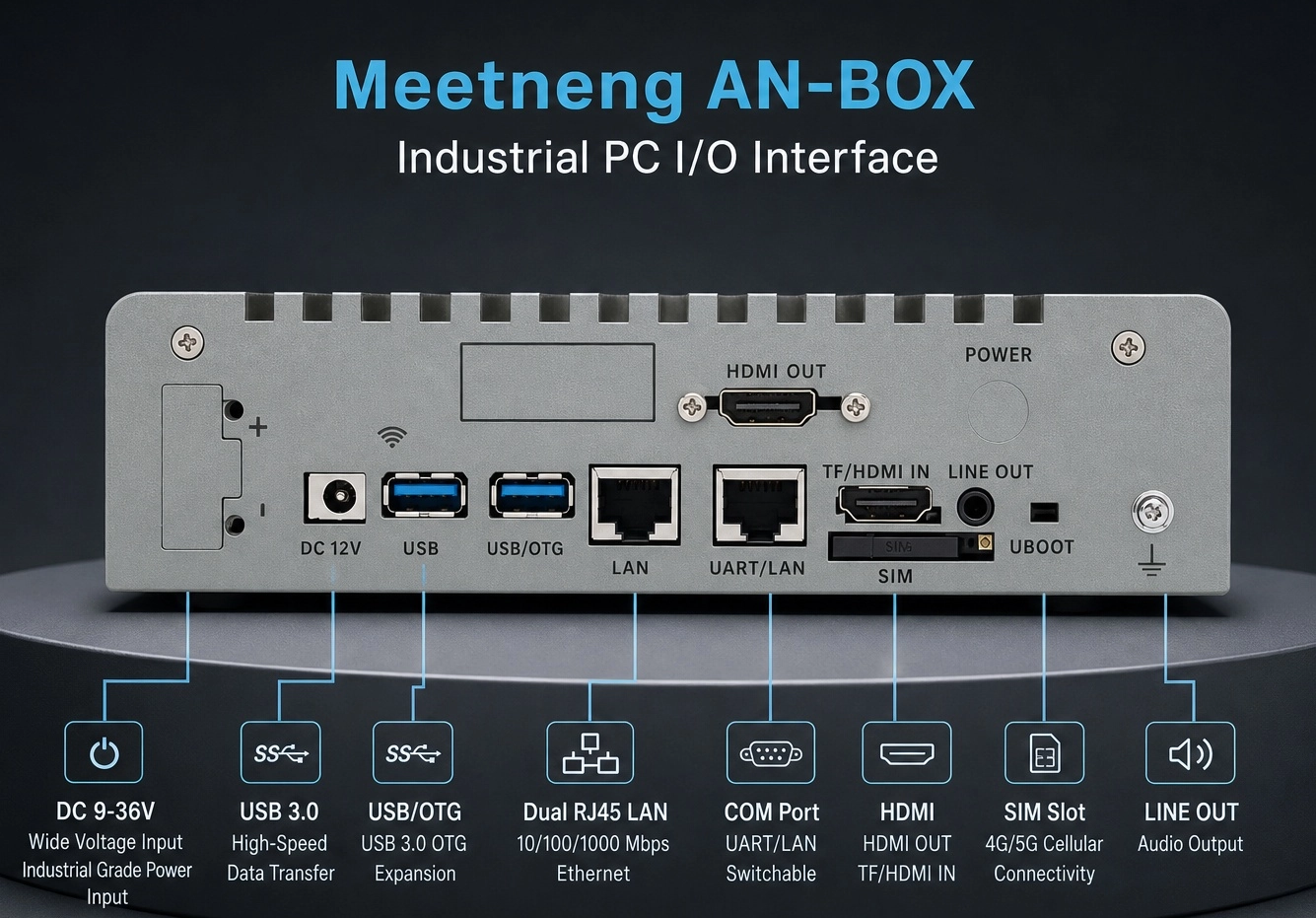

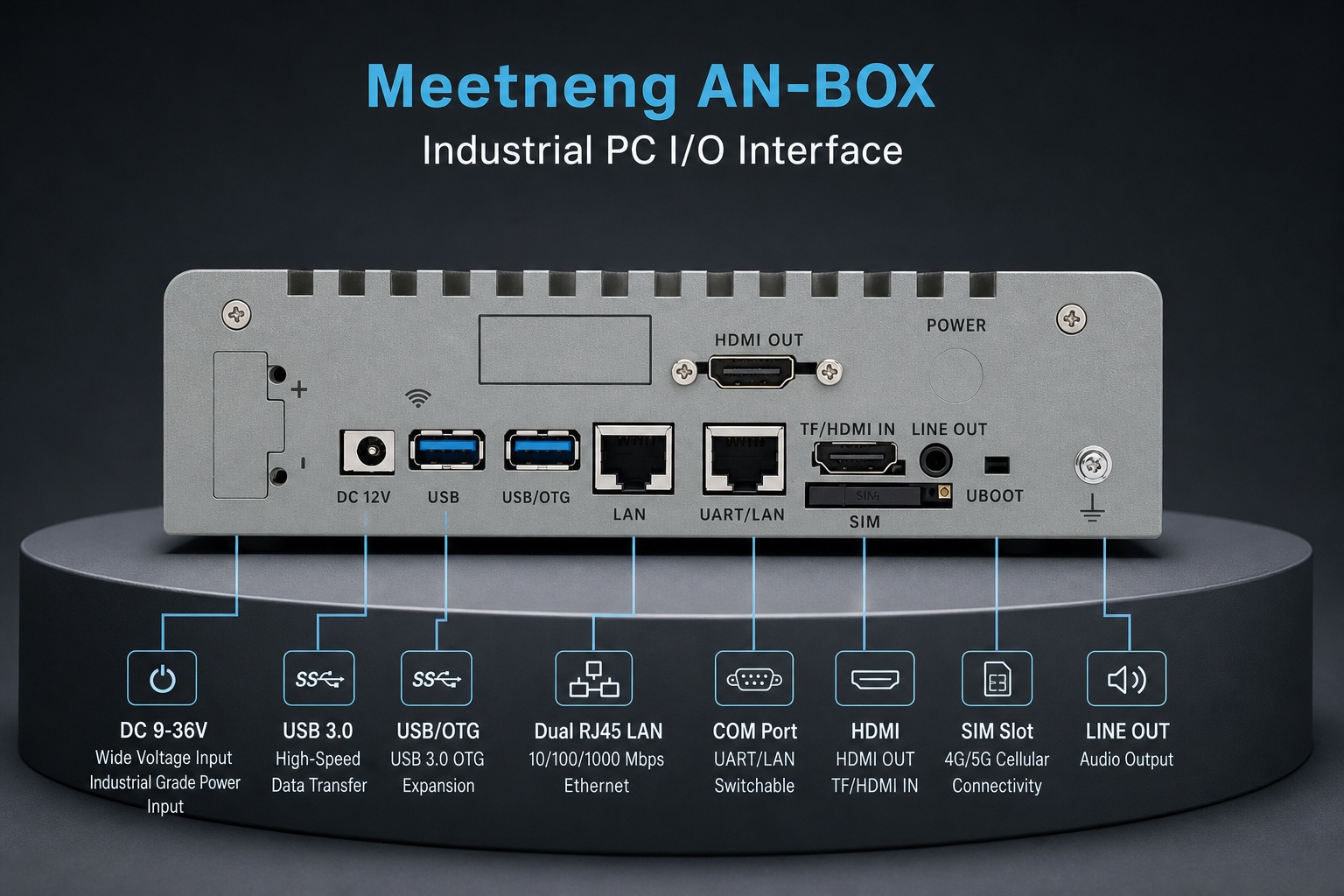

Meetneng does not simply expand the input voltage window on paper; the AN-BOX series implements a multi-stage industrial power conditioning sub-system integrated directly onto the carrier board:

1. High-Efficiency Buck-Boost Dynamic Voltage Regulation

The core of Meetneng's power stage utilizes a high-frequency synchronous buck-boost converter circuit paired with millisecond-level feedback loops. When the input voltage dips below 12V (down to 9V), the boost controller dynamically steps up the voltage; when the input climbs above 12V (up to 36V in 24V/28V industrial systems), the synchronous buck stage steps down the voltage smoothly. Internal rail stability is held within a tight ±2% tolerance, shielding the CPU, RAM, and SSD from thermal and electrical stress.

2. Multi-Tier Transient & Surge Protection

To survive harsh electrical transients, the power input stage incorporates industrial-grade protective components:

· TVS Clamping Diodes: High-power Transient Voltage Suppressor (TVS) diodes rapidly clamp high-voltage electrostatic discharge (ESD) and line surges.

· Reverse Polarity Protection: Integrated protection diodes prevent catastrophic board failure if installation technicians accidentally reverse the positive and negative DC wiring.

· Over-Current & Short-Circuit Protection: Auto-recovery electronic fuses immediately isolate the core system during downstream short circuits.

3. Wide Operating Temperature Resilience (-10°C to 60°C)

Standard commercial electrolytic capacitors dry out at high temperatures and lose capacitance in freezing weather, causing power ripple to spike. Meetneng utilizes 100% solid industrial capacitors and temperature-hardened magnetic inductors, guaranteeing cold-boot startup at sub-zero temperatures and continuous 24/7 operation under full CPU load in hot machinery cabinets.

4. Key Application Scenarios Where Wide-Voltage IPCs Are Mandatory

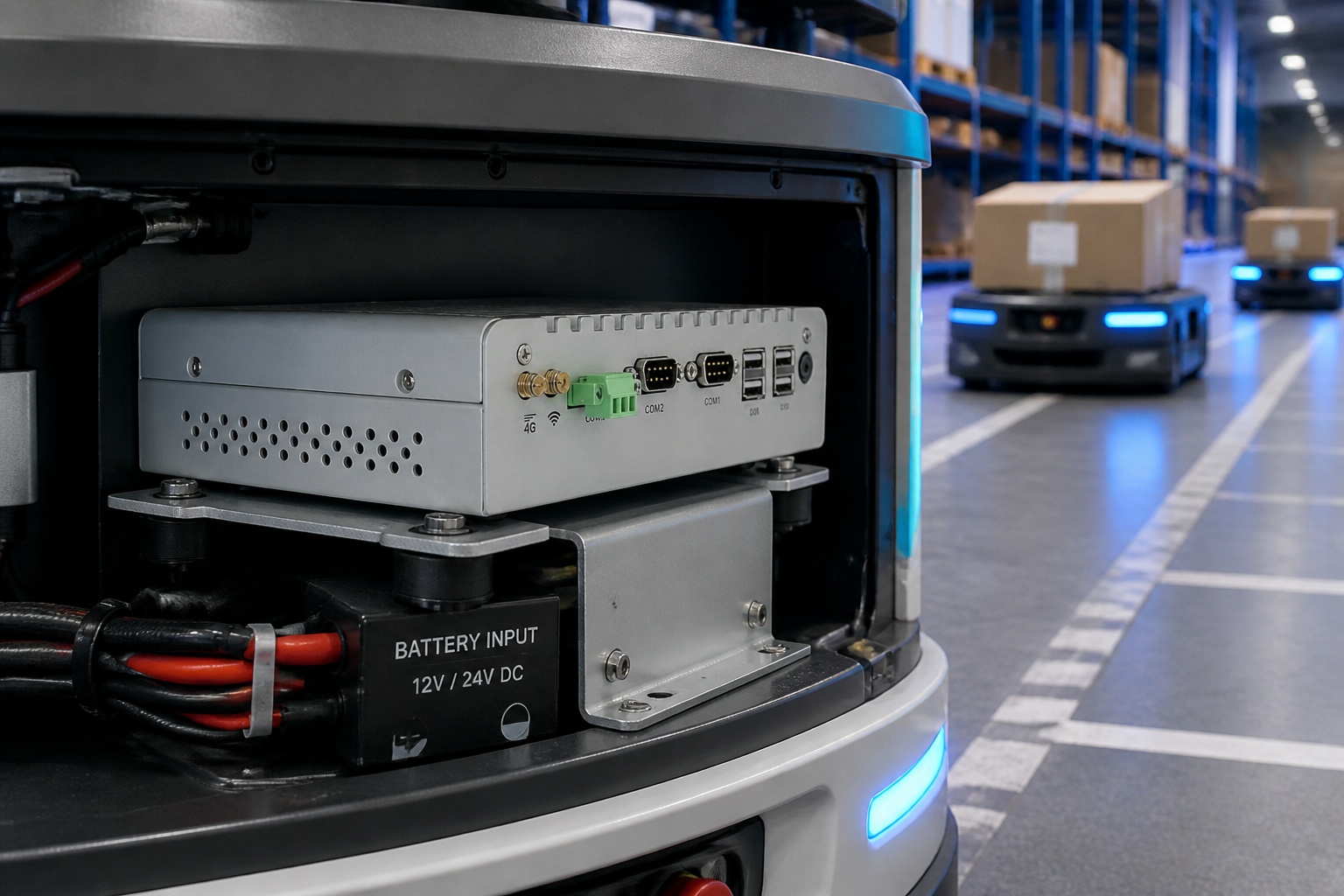

Scenario A: Automated Guided Vehicles (AGVs) & Autonomous Mobile Robots (AMRs)

Mobile warehouse robots run on onboard 24V or 36V battery packs. As the robot accelerates, navigates ramps, or activates lifting actuators, the DC rail fluctuates wildly. An industrial box PC with 9V–36V input connects directly to the robot's main battery circuit without requiring an expensive, bulky external DC-DC regulator, saving valuable payload weight and space.

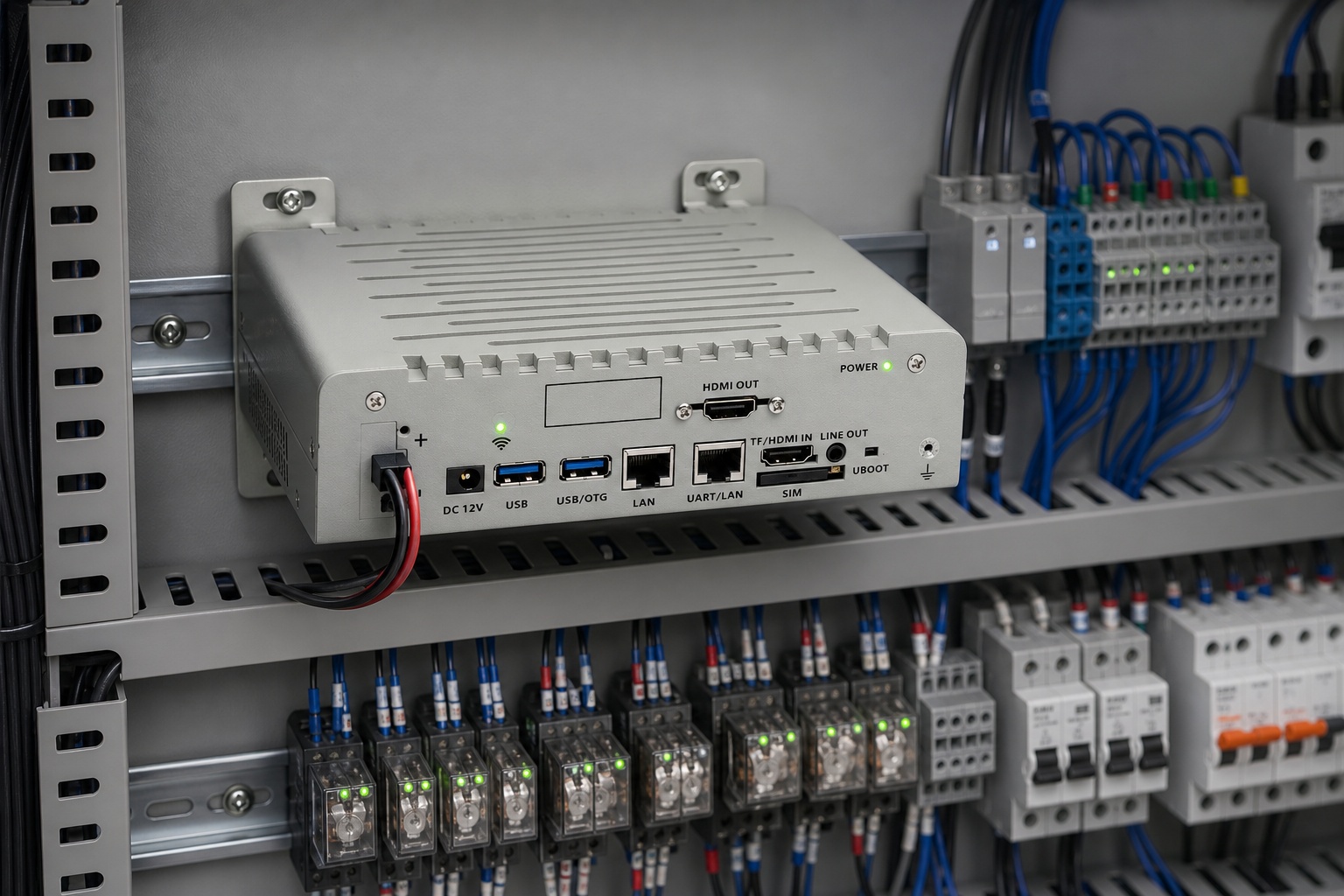

Scenario B: Factory Automation & Machine Vision Inspection

In high-speed assembly and CNC lines, adjacent pneumatic valves, welding guns, and spindle motors introduce continuous electrical noise and sags into 24V cabinet control lines. Meetneng's wide-voltage filtering ensures machine vision algorithms and line-side PLCs run without interruption.

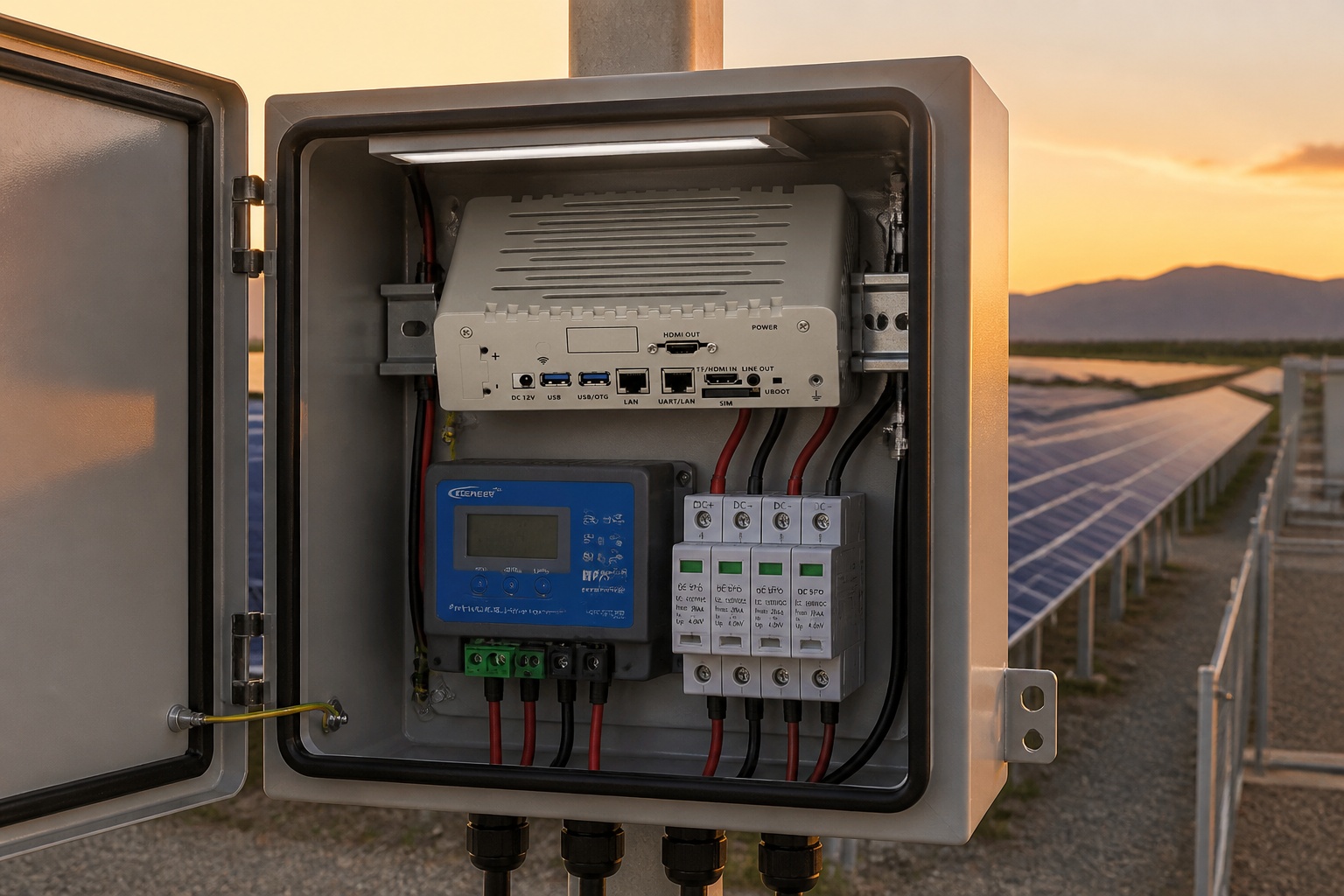

Scenario C: Outdoor Renewable Energy & Battery Storage (BESS)

Remote solar power substations and wind energy monitoring stations operate on battery banks that experience extreme charge/discharge cycles and severe daily ambient temperature swings. The embedded edge computer must maintain uninterrupted telemetry logging and 4G communication through cold desert nights and blistering summer afternoons.

5. Meetneng AN-BOX Series Hardware Specifications Matrix

The Meetneng AN-BOX family pairs wide-voltage power reliability with scalable ARM computing architectures across five specialized model tiers:

6. Frequently Asked Questions (FAQ)

Q1. Why can't I just use a standard 12V power supply with a separate external DC-DC converter module?

While adding an external DC-DC step-down/step-up converter is possible, it introduces several major disadvantages: it adds extra points of electrical failure, consumes valuable enclosure DIN rail space, creates additional wiring clutter, and generates heat. An industrial PC with native integrated 9V–36V wide-voltage circuitry provides higher conversion efficiency, compact packaging, and verified system-level reliability.

Q2. Does a wide-voltage input protect the industrial PC from reverse wiring mistakes?

Yes. Meetneng AN-BOX series industrial computers incorporate reverse polarity protection diodes at the power input stage. If a field technician accidentally connects positive voltage to the negative terminal, the protection circuit blocks the current flow, preventing damage to the motherboard and internal silicon components.

Q3. How does wide-voltage support benefit in-vehicle and mobile robotic deployments?

Vehicles and mobile robots (AGVs/AMRs) typically run on 12V, 24V, or 36V battery systems. During motor acceleration or heavy payload lifting, battery voltage dips significantly; during battery charging or regenerative braking, voltage spikes. A 9V–36V wide-voltage IPC accommodates this entire operational swing seamlessly without requiring auxiliary power conditioning modules.

Q4. What happens if the input voltage drops below 9V or spikes above 36V?

If input voltage drops below 9V, the integrated Under-Voltage Lockout (UVLO) circuit safely shuts down the unit to prevent unpredictable brownout logic states. If voltage exceeds 36V, high-speed TVS transient clamping diodes and Over-Voltage Protection (OVP) circuits suppress the spike, protecting sensitive internal components from electrical overstress.

Q5. Can the Meetneng AN-BOX series run both Android and Linux operating systems?

Yes. The AN-BOX series natively supports both Android and Debian Linux distributions. System developers can choose the OS environment best suited for their edge software architecture, whether deploying lightweight web-based HMIs, custom Python telemetry scripts, or native industrial control applications.

Summary & Recommendation

In industrial automation, system stability is only as reliable as the power delivery feeding your computing hardware. Specifying a fanless industrial computer with native 9V–36V DC wide-voltage protection eliminates unexpected downtime, simplifies enclosure wiring, and safeguards your equipment against dirty factory power.

Whether deploying robotic fulfillment fleets, line-side machine vision, or remote solar monitoring, the Meetneng AN-BOX Series delivers field-proven electrical resilience and scalable ARM computing performance. Contact our application engineering team to specify the ideal processor, memory, and I/O configuration for your next deployment.
