Unplanned downtime costs manufacturers thousands of dollars per minute, and thermal throttling and hardware failure are the primary culprits in 24/7 plants. Commercial-grade computers rely on cooling fans, which pull conductive dust, moisture and metallic particulates into the motherboard; their bearings fail under continuous vibration while high ambient temperatures degrade commercial components until the system dies. Industrial-grade thermal management answers this with purpose-built thermodynamics, specialized materials and strict physical isolation, so the hardware survives conditions that destroy standard electronics within days. This guide explains how each cooling architecture holds continuous, stable operation under extreme conditions.
Passive Cooling is the Standard: A fanless industrial touch computer relies on thermodynamics, using extruded aluminium chassis and heat pipes to dissipate heat without moving parts, which removes the failure points a fan introduces.
Environment Dictates Architecture: Passive, active, solid-state or liquid cooling each suit a different deployment - ambient temperature, airborne particulates and IP rating requirements decide which.
Thermal Design Impacts Performance: Proper thermal management prevents CPU throttling and keeps processing power consistent for critical embedded HMI panel computer applications.
Installation Matters: Even the best thermal design fails if mounting orientation, cabinet micro-climates and clearance guidelines are ignored.
Continuous 24/7 operation requires absolute thermal stability: zero throttling at maximum load, with MTBF expectations for industrial hardware often exceeding 50,000 hours. That demands internal temperatures well below the maximum silicon junction limits, because continuous high-load processing generates thermal output faster than the chassis can shed it. Four metrics establish a reliable baseline:
The processor holds base clock speeds under 100% utilization for at least 24 continuous hours without triggering the PROCHOT signal.
Internal chassis temperatures stay at least 15°C below the maximum rated operating temperature of the most sensitive component, typically the storage drive or memory.
The external chassis dissipation rate exceeds the combined Thermal Design Power (TDP) of all internal components running at once.
The system returns to idle temperatures within five minutes of a maximum load cycle ending.
Those figures are easier to hold when the computing platform is treated as a variable rather than fixed. A sealed, fanless chassis has a finite dissipation budget, so the practical way to protect the baseline is to match the processor to the enclosure: the same 10.4 to 21.5-inch panel takes a standard Intel Core board, other Intel options or an Android board, so a low-wattage platform goes into a sealed cabinet in a hot area while a higher-performance board is reserved for a ventilated one. Because the enclosure and cutout do not change, the design is not re-qualified when the platform changes.
Standard cooling fails predictably in harsh environments. Commercial fans draw ambient air across the motherboard, introducing conductive dust, oil mist and corrosive gases that short-circuit exposed surface-mount components, while their bearings dry out and seize under the constant low-frequency vibration of adjacent CNC mills or stamping presses.
Standard thermal paste degrades just as fast. The silicon die and the copper heatsink expand at different rates, so the heat-up and cool-down of every shift pumps the paste out from between them. Once the thermal interface fails, microscopic air gaps act as heavy insulation; the processor overheats within seconds and shuts down to prevent a localized fire.
Modern processors protect themselves by dropping clock speed to lower voltage and heat generation, which is what thermal throttling means. A 10-15% loss of speed ruins critical industrial applications, and real-time data acquisition systems miss sensor inputs, corrupting batch records and compliance logs.
Machine vision suffers most. High-speed GigE Vision cameras need massive, uninterrupted bandwidth to analyse parts moving on a conveyor, so if the CPU throttles the system drops frames - and a dropped frame means a defective product passes inspection without triggering the rejection mechanism. Automated control systems then miss timing windows and cause machinery collisions, turning a cooling issue into a production loss.
Passive cooling dominates harsh environment deployments. A fanless industrial touch computer eliminates all moving parts, replacing fans with heavy-duty aluminium heat sinks, while thermal pads and copper heat pipes move heat from the CPU and GPU to the external chassis.
Inside a sealed copper heat pipe a vacuum lowers the boiling point of the working fluid: CPU heat vaporizes it, the vapour travels to the cooler end attached to the chassis, condenses and releases that heat into the metal, and a sintered wick draws the liquid back by capillary action. The cycle runs continuously with no pump and no moving parts.
The trade-offs are specific. Passive cooling is highly reliable and dust-proof, but it strictly limits the maximum Thermal Design Power (TDP) of the internal components, because high-wattage processors generate more heat than convection can dissipate. Designers therefore match energy-efficient processors to the physical cooling capacity of the enclosure.
The enclosure itself is part of that thermal path, which is why a fully enclosed industrial body is a cooling feature and not only a durability one. A die-cast aluminium housing with integrated moulding seals the electronics inside with no intake, no exhaust and no filter: heat has one route out, through the metal, and nothing can carry dust, oil mist or coolant onto the board. It also removes the maintenance item fanned systems cannot escape, because there is no filter to change and no bearing to monitor around the clock.
Figure 1 - The sealed thermal path: with no fan and no intake, the processor's heat is carried by the internal heatsink and heat spreader into the aluminium housing and released through the rear fins.
Some applications demand active cooling. Edge AI and heavy machine vision systems with multiple GigE cameras need processors beyond the reach of passive dissipation, and industrial-grade active cooling differs completely from commercial designs: sealed fan chambers, dual-ball bearing fans instead of sleeve bearings, and filtered pathways that pass air over internal heatsinks without exposing the motherboard to outside air. These systems buy maximum processing power but add mechanical failure points, and they need strict schedules for filter replacement and fan RPM monitoring.
Extreme high-load environments use advanced thermal management. Data centers and high-density control rooms deploy Coolant Distribution Units (CDUs) for precise coolant circulation and temperature regulation, with cooling plates attached directly to processors; this delivers unmatched efficiency, but it adds complexity, and the maintenance overhead, fluid leak risk and power draw have to be weighed against the gain. Solid-state thermoelectric or Peltier coolers take the other specialized route, driving a current across two dissimilar metals to create a large temperature differential for localized extreme-temperature zones. Both approaches sit outside the usual scope of a panel PC installation, and are worth considering only when the thermal load genuinely exceeds what conduction can carry away.
The enclosure dictates passive dissipation. Engineers use extruded aluminium, typically AL6063 alloys, for its conductivity and rigidity, and fin depth and spacing set the surface area available for heat transfer: deeper fins expose more metal to ambient air and raise the thermal capacity of the chassis.
Fin spacing matters as much as fin depth. Optimal spacing lets air flow freely between the ridges, while fins placed too close together overlap their boundary layers, choking the convection current and trapping heat against the metal. Poor extrusion quality also leaves microscopic air pockets inside the metal, which act as insulators and create hot spots on the surface.
A production panel PC shows how those principles are applied. The rear face of the IPRO range is a single die-cast aluminium plate carrying large curved fins across the full width of the panel, formed as part of the housing rather than bolted on, so heat spreads from the motherboard into the whole back plate before it reaches the air. Surface area scales with panel size, which is why the larger models carry the same platform as the smaller ones at the same ambient rating.

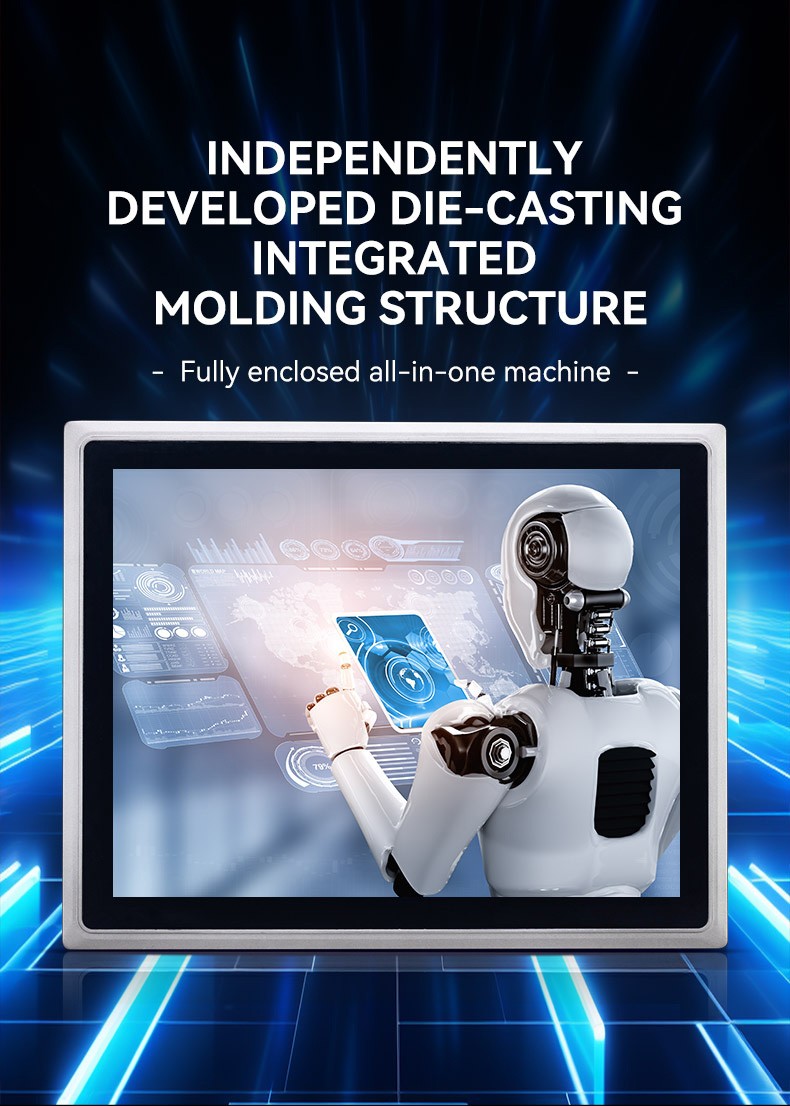

Figure 2 - One die-cast aluminium body rather than a sheet-metal box: the integrated moulding structure seals the electronics into a single fully enclosed housing, so the only way out for the processor's heat is through the metal itself.
Four figures decide whether an installation on a hot line will hold up: the depth the chassis occupies behind the front face, the mass the panel has to carry, and the two temperature bands the unit is rated for.
Panel size | Chassis depth | Gross weight | Operating temperature | Storage temperature |
|---|---|---|---|---|
10.4 in | 55.8 mm | 2.75 kg | -10 to 60 C | -20 to 70 C |
12.1 in | 55.6 mm | 3.3 kg | -10 to 60 C | -20 to 70 C |
15 in | 58.8 mm | 3.75 kg | -10 to 60 C | -20 to 70 C |
15.6 in | 58.6 mm | 3.8 kg | -10 to 60 C | -20 to 60 C |
17 in | 58.6 mm | 5.65 kg | -10 to 60 C | -20 to 60 C |
19 in | 58.6 mm | 5.7 kg | -10 to 60 C | -20 to 60 C |
21.5 in | 53.5 mm | 6 kg | -10 to 60 C | -20 to 60 C |
Every model stays under 60 mm deep, so a 50 mm gap behind the enclosure face leaves the fin field in open air even in a shallow machine door. Weight matters wherever the panel sits in a door or swing frame rather than a fixed wall, because the gasket has to stay compressed under its own load.
Figure 3 - The IPRO range spans 10.4 to 21.5 inches: a sealed aluminium bezel with a flat glass front, which is the only part left visible once the unit is mounted in a panel.
Computing, interface and power specifications are shared across the range and configured per project: an Intel Core 5th Generation processor with 8 GB memory and 256 GB storage as standard, other processors and Android options on the same chassis, dual LAN, 2 x RS-232/485 expandable to 5 x RS-232, 4 x USB, HDMI and VGA, optional GPIO, and Windows or Linux. A wide-voltage DC input helps thermally too, because it absorbs supply swings that would otherwise become heat inside the regulator.
Thermal management begins at the PCB layout stage. Engineers separate heat-generating components from heat-sensitive ones: the CPU, GPU and power supply produce most of the heat, so designers place them away from SSDs, RAM and LCD controller boards, preventing hot spots from degrading sensitive silicon. Internal copper heat spreaders then direct energy toward the external heat sink, and 2-ounce copper layers inside the PCB let the whole circuit board act as a secondary spreader, conducting heat out of surface-mount parts far faster than a commercial board.
Hardware design works alongside software control. BIOS and UEFI manage power states directly, and modern operating systems manage processor C-states through the Advanced Configuration and Power Interface (ACPI): when an embedded HMI panel computer runs through low-demand cycles, the OS drops the processor into deep sleep states (C3, C6 or C7), lowers its voltage and stops the clock to idle cores. That keeps the baseline temperature low and preserves the headroom needed for sudden spikes in demand.
Industrial components carry wide operating temperature ratings, where typical commercial silicon fails below 0°C or above 40°C. Extreme cold brings its own problems: below freezing the electrical resistance of silicon changes, causing timing errors and boot failures. Low-temperature boot mechanisms warm critical components before the system powers on - the BIOS holds a pre-boot state and applies power only to internal heaters until sensors report a safe temperature - while insulation and conformal coating prevent condensation from short-circuiting the board during rapid shifts such as moving a unit from a freezing warehouse to a heated loading dock.
Read the published numbers as two separate bands rather than one. A fanless industrial panel PC is typically rated -10°C to 60°C operating and -20°C to 70°C or -20°C to 60°C storage, depending on panel size, and only the operating band says what the machine can actually run at. The storage figure describes transport and shutdown; if a site genuinely runs below -10°C or above 60°C, the enclosure needs heating or cooling rather than a different gasket.
Maximum junction temperature is the absolute thermal limit of the silicon die itself, usually around 100°C, while the rated ambient operating temperature describes the surrounding air: a system rated for 60°C ambient keeps its junction below the failure point as long as the air does not exceed 60°C.
Exceeding the ambient rating collapses the thermal delta. Heat only transfers from hotter to cooler, so once the ambient air approaches the chassis temperature the rate of transfer slows drastically, internal components climb toward their junction limit, and the system throttles or shuts down to prevent damage.
The factory floor temperature rarely matches the internal cabinet temperature. Enclosed control panels trap heat from power supplies, PLCs and motor drives: a floor might measure 25°C while the sealed cabinet interior reaches 55°C from the combined output of everything inside it.
Sizing hardware on room temperature rather than the cabinet micro-climate guarantees throttling. Engineers must total the heat load of every enclosed device and make sure the cabinet itself can reject it through ventilation, heat exchangers or active cooling units. Ignoring the micro-climate is the most common cause of premature hardware failure in industrial deployments.
Waterproofing conflicts directly with heat dissipation. High IP ratings require fully sealed enclosures, and an IP65 or IP67 rating means no air exchange with the outside environment, so the system relies entirely on conduction through the chassis walls. A fully sealed Industrial Panel PC therefore needs a large external heat sink to compensate, and where high-pressure washdowns are mandatory, internal components are limited to low-wattage, high-efficiency processors.
Keep the mechanical meaning of "fully enclosed" separate from a certified IP number. A die-cast fanless housing with no intake and no exhaust is genuinely closed to the atmosphere, which makes it suitable for dusty and oily plants, but an IP rating is a test result for a specific model at a specific face and has to be quoted from the supplier's report rather than inferred from the enclosure design.
Passive cooling relies entirely on natural convection. Hot air rises, so vertical mounting aligns the external fins with that upward airflow and creates a chimney effect, pulling cool air in at the bottom and exhausting hot air at the top. Horizontal mounting destroys the effect: mounted flat or facing upward in a console, hot air rises out of the fins and stalls, leaving a blanket of stagnant air on top of the chassis. Improper orientation can cut passive cooling efficiency by up to 40%, pushing a functional system into throttling at the wrong angle.
Clearance is the other half of the same requirement. Keep the fin field in open air and keep wire ducts and cable bundles out of it: chassis depth across the range is 53.5 to 58.8 mm, so a 50 mm gap behind the front face is normally enough for convection - but only if nothing is packed against the fins afterwards.
Deploying hardware without calculating thermal load invites failure. Identify the maximum TDP of the processor under 100% load, add the wattage of the display panel, internal storage and expansion cards, and measure the facility's absolute maximum ambient temperature in peak summer. Compare that total against the manufacturer's dissipation specifications: if the combined wattage exceeds the cooling capacity of the chassis at the target ambient, move to a larger chassis, reduce the processing load, or add active cooling to the surrounding environment.
Work from published figures rather than assumptions when you make that comparison. A fanless panel PC rated for -10°C to 60°C operating temperature is stating the ambient band its cooling architecture was designed around, so a cabinet that peaks above 60°C in August sits outside the envelope even though the same unit runs comfortably at 40°C all year.
Cooling Architecture | Primary Mechanism | Best Use Case | Maintenance Requirement | Vibration Tolerance |
|---|---|---|---|---|
Passive (Fanless) | Aluminium heat sinks and heat pipes | Dusty, high-vibration factory floors | Low (fin cleaning only) | Extremely high |
Active (Fanned) | Dual-ball bearing fans and filters | High-load edge AI and machine vision | Medium (filters and fans) | Moderate |
Liquid Cooling | Coolant distribution units (CDU) | Extreme-density data centers | High (fluid checks, pump monitoring) | Low |
Solid-State (Peltier) | Thermoelectric temperature differential | Localized extreme temperature zones | Medium (power supply monitoring) | High |
Physical installation dictates cooling success. Leave at least 50 mm of open space around all heat sink fins, and never block rear panels with cable bundles or mounting brackets. Shield the display from direct sunlight, which causes severe solar loading and bakes the LCD controller board, and keep the chassis away from industrial ovens, large motors or uninsulated steam pipes, because radiant heat destroys the thermal delta that passive cooling depends on. The mechanical side of the same installation - cutout tolerance, gasket compression and rear clearance - is covered in our guide to flush mounting an embedded industrial panel PC.
Fanless systems need periodic cleaning of the external heat sink fins, because layers of dust, shavings or dried coolant act as insulation, ruining surface-area efficiency and blocking airflow; a blast of compressed air at routine maintenance prevents the buildup. Fanned systems instead demand filter replacement schedules and monitoring of fan vibration and RPM drops, so failure is predicted before a fan seizes. Power quality feeds the same problem: voltage fluctuations make internal power supplies work harder, and that inefficient conversion appears as unnecessary heat, so wide-voltage DC inputs keep delivery stable and extend motherboard life.
Audit the installation environment to determine the absolute maximum ambient temperature during peak seasonal shifts.
Calculate the exact Thermal Design Power (TDP) requirements of your software applications under full load.
Measure internal cabinet clearances to guarantee unobstructed natural convection for vertical heat sink fins.
Establish a preventative maintenance schedule for external fin cleaning or internal filter replacement.
Confirm the operating temperature band and the chassis depth of the model you intend to use, and keep cables clear of the rear fin field.
A: Blocked heat sink fins, heavy dust accumulation acting as insulation, ambient temperatures above the rated specifications, or horizontal mounting that destroys natural convection.
A: Yes, but calculate the cabinet's internal micro-climate first. The enclosed space traps heat from every internal device, and the cabinet itself has to dissipate that combined load to the outside room.
A: Throttling forces the CPU to drop its clock speed to reduce heat, and that loss of processing power makes GigE Vision cameras drop frames, so inspection triggers are missed and defective products pass through.
A: It is what happens when a device is mounted vertically: hot air rises through the vertical heat sink fins and exhausts at the top while cooler ambient air is drawn in at the bottom.
A: Unstable power forces internal voltage regulators to work harder, and that inefficient conversion generates excess heat. A wide-voltage DC input stabilizes delivery and removes an avoidable thermal load from the motherboard.
A: Yes. High ingress protection requires a fully sealed enclosure to block water and dust, which traps internal heat and needs a larger external heat sink to compensate for the lack of internal airflow.
A: Fanless panel PCs are normally specified for continuous 24/7 duty, because the failure modes that limit uptime in a fanned computer - filter clogging, bearing wear and dust drawn in through the intake - do not exist in a sealed chassis. The limit is thermal rather than mechanical: the installation has to respect the unit's operating temperature band at the worst ambient of the year, with the fin field unobstructed and the cabinet micro-climate included in the calculation.
A: It can, because a sealed chassis rejects heat only by conduction through its own metal, which is why a fanless unit is built around a die-cast aluminium body with a large finned rear face and paired with energy-efficient processors. What it gives back is stability: no intake air to filter, no fan to seize and no path for dust, oil mist or washdown water to reach the board.
