Operators in mission-critical control rooms and high-throughput manufacturing floors need 24/7 visibility into SCADA systems and MES data. Standard commercial displays and decoupled PCs fail here. Deploying standard hardware in harsh environments guarantees thermal throttling, particulate ingress, and vibration-induced downtime. You need hardware built for the floor. Evaluating a 19 Inch Industrial Panel PC means looking past basic resolution specs. You must assess ruggedization, I/O compatibility, and lifecycle longevity. This guide breaks down the technical criteria for selecting an integrated computing solution that guarantees uptime in demanding production environments.
Form Factor Utility: The 19-inch display strikes the optimal balance between providing sufficient screen real estate for complex data visualization and fitting within standard industrial control cabinets or OEM machinery.
Touch Interface Selection: Choosing between Projected Capacitive (PCAP) and Resistive touch depends entirely on operator PPE (e.g., heavy gloves) and environmental contaminants (e.g., water or oil).
Thermal and Environmental Resilience: Fanless designs, rugged metal housings, and IP65/IP67-rated front bezels are non-negotiable for mitigating dust, moisture, and mechanical failure risks during continuous use.
Lifecycle Management: True industrial panel PCs offer locked bill of materials (BOM), extended availability (5-7+ years), and reliable delivery from stock, preventing costly software recertification and mounting redesigns.
Control room operators monitor multiple data streams simultaneously. They cannot rely on excessive scrolling or toggling between windows during an active production run. Engineers face a different physical constraint. They must fit hardware into existing NEMA enclosures, OEM machines, or standard 19-inch server racks. The 19-inch form factor bridges this gap. It provides ample viewing area for a large industrial HMI terminal while maintaining a footprint compatible with legacy panel cutouts.
Screen real estate directly impacts operational efficiency. A 19-inch display allows operators to view complex piping and instrumentation diagrams (P&ID) without losing critical details. It fits neatly into standard kiosk enclosures without requiring custom fabrication. You can standardize on one hardware size for both desktop workstations and machine-mounted terminals. This standardization simplifies your spare parts inventory and reduces the number of backup units you need to keep on the shelf.
Aspect ratio selection dictates software compatibility. Many legacy SCADA systems were built for standard 4:3 or 5:4 aspect ratios. Forcing these older applications onto modern widescreen displays causes severe image distortion. It stretches pump icons and misaligns text fields, which can lead to operator reading errors. A standard 19-inch monitor typically offers a 5:4 ratio. This preserves the native layout of older software. Conversely, modern data workstations often require widescreen formats. Widescreen allows for side-by-side application viewing. You must match the aspect ratio to your specific software requirements before finalizing a chassis.
Ergonomics and workplace safety improve with proper mounting. Flush-mounting a terminal into doors, walls, or cabinets eliminates physical snag hazards. Bulky desktop setups with exposed cables create tripping risks. They also gather metal shavings and dust. A flush-mounted panel PC integrates seamlessly into the work environment. It provides a clean, wipeable surface. Operators interact with it comfortably without leaning over cluttered desks or navigating around exposed wiring harnesses.
Selecting internal hardware involves balancing processing power with environmental constraints. High-performance CPUs, like the Intel Core i5 or i7 series, handle heavy data processing and complex visualization tasks. However, these chips generate massive heat. In a fanless, sealed enclosure, dissipating this heat becomes the primary engineering challenge. Lower-power processors, like the Intel Celeron series, generate less heat but may struggle with modern, graphics-heavy MES applications.
Thermal throttling occurs when a processor overheats and reduces its clock speed to prevent permanent silicon damage. In high-ambient-temperature environments like foundries or boiler rooms, this leads to sluggish system performance. Screen updates lag. Touch inputs register late. To prevent this, industrial panel PCs utilize extruded aluminum heatsinks. The entire rear chassis acts as a massive heat dissipator. This fanless design eliminates moving parts. Fans draw in dust, clog, and eventually fail. Fanless architecture ensures continuous operation even in unconditioned factory spaces.
Storage and memory resilience dictate system lifespan. Standard consumer hard drives fail quickly under continuous vibration from stamping presses or CNC routers. Industrial-grade Solid State Drives (SSDs) are mandatory. These drives feature wide temperature ratings and robust flash memory controllers designed for high read/write cycles. Memory modules (RAM) should feature conformal coating. This thin polymeric film protects electronic circuits from moisture, dust, and chemical contaminants. It prevents short circuits caused by condensation or airborne particulates settling on the motherboard.
Commercial vs. Industrial Component Specifications | ||
Component | Commercial Grade | Industrial Grade |
|---|---|---|
Cooling Mechanism | Active fans (prone to dust clogging) | Fanless extruded aluminum chassis |
Storage Media | Standard SSD (0°C to 40°C) | Wide-temp Industrial SSD (-40°C to 85°C) |
Memory (RAM) | Standard bare PCB | Conformal coated against moisture/dust |
Chassis Material | Plastic or thin stamped metal | Die-cast aluminum or stainless steel |
Display visibility dictates operator effectiveness. Factory floors feature intense overhead lighting. Outdoor control stations face direct sunlight. Standard 250-nit commercial monitors wash out completely. You need high-brightness LCD panels pushing 1000 nits or more for sunlight readability. Optical enhancements further improve visibility. Anti-glare (AG) coatings scatter reflected light. Anti-reflective (AR) coatings increase light transmission. These treatments reduce operator eye strain during twelve-hour shifts and ensure alarms are visible from across the floor.
Touchscreen selection dictates how operators interact with the machine. You must map touch technologies directly to the operator environment. The wrong choice leads to input errors and decreased productivity. The two dominant technologies are Projected Capacitive (PCAP) and Analog Resistive.
Projected Capacitive (PCAP) touch operates via an electrostatic field. PCAP excels in multi-touch applications. It allows for pinch-to-zoom and complex gestures. It offers high optical clarity because the touch sensor sits behind a layer of glass. This glass surface resists scratches from tools or rings. Edge-to-edge glass designs eliminate bezels where dirt and bacteria accumulate. This makes PCAP ideal for pharmaceutical or food processing environments requiring frequent chemical washdowns.
PCAP has distinct limitations on the heavy industrial floor. Heavy water pooling on the screen causes false inputs or ghost touches. The electrostatic field struggles to register inputs through thick leather or heavy rubber gloves. While some PCAP controllers offer glove-touch tuning, they remain less reliable than resistive screens for heavy PPE applications. If your operators wear welding gloves, PCAP will fail them.
Analog Resistive touch relies on physical pressure. Two conductive layers sit separated by a tiny air gap. Pressing the screen pushes the layers together, registering the touch. This technology remains the standard for heavy industrial use. Operators use thick gloves, styluses, or even the back of a screwdriver to interact with the screen. Water droplets, oil spills, or heavy dust do not cause false inputs.
Resistive touch involves trade-offs. The multiple layers slightly reduce optical clarity compared to PCAP. The outer layer is typically a durable polyester film. It is more susceptible to physical damage than glass. Sharp objects can scratch or puncture the surface. Despite these drawbacks, resistive touch provides unmatched reliability in highly contaminated environments.
PCAP vs. Resistive Touch Technology | ||
Feature | Projected Capacitive (PCAP) | Analog Resistive |
|---|---|---|
Input Method | Bare finger, thin surgical glove | Any physical object, heavy gloves, stylus |
Multi-Touch | Yes (up to 10 points) | No (Single touch only) |
Water/Debris Immunity | Poor (water causes ghost touches) | Excellent (ignores water and dirt) |
Surface Durability | High (Glass front, scratch resistant) | Moderate (Polyester film, can puncture) |
Industrial environments destroy commercial hardware. You must evaluate ruggedization standards to ensure long-term survival. Ingress Protection (IP) ratings define a device's ability to keep out solids and liquids. Understanding the practical difference between IP ratings is mandatory when deploying a production monitoring touch workstation.

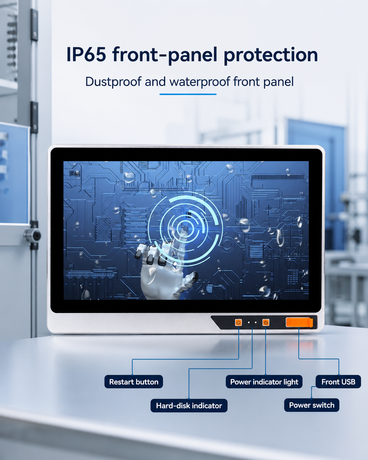

An IP65 rating means the device is dust-tight and protected against low-pressure water jets. Often, industrial panel PCs feature an IP65 rating only on the front bezel. This works perfectly for panel-mounted installations where the rear of the unit sits inside a protected NEMA 4 or NEMA 12 cabinet. Full IP67 ratings indicate the entire enclosure is sealed. An IP67 device withstands temporary immersion in water. This level of protection is necessary for standalone VESA-mounted units in meat processing washdown areas.
Enclosure materials dictate durability and thermal performance. Extruded aluminum and stainless steel are the most common options. Extruded aluminum offers excellent heat dissipation and natural corrosion resistance. It works well in general manufacturing and dry environments. Stainless steel, specifically 304 or 316 grades, provides superior chemical resistance. It withstands harsh caustic detergents used in food and beverage processing or pharmaceutical cleanrooms without pitting or rusting.
Shock and vibration resistance prevent catastrophic hardware failures. Heavy machinery generates constant vibration. Military standard MIL-STD-810G testing provides a benchmark for ruggedness. Look for systems with soldered memory and storage components. Cable retention systems prevent internal connections from vibrating loose. A rigid internal chassis isolates sensitive electronics from external shocks.
Wide temperature operations are necessary for extreme environments. Cold storage facilities require components rated for sub-zero temperatures. Foundries demand high heat tolerance. Standard PCs operate between 0°C and 40°C. True industrial units utilize components rated for -20°C to 60°C or wider. Internal condensation management prevents moisture buildup during rapid temperature changes, ensuring the motherboard does not short out when a bay door opens in winter.
Proper integration ensures the panel PC functions seamlessly within your existing infrastructure. Mounting configurations vary based on the application.
Panel Mounting: This is the most common method for control cabinets. You create a precise cutout in the cabinet door. The PC drops into the cutout. Heavy-duty mounting clips pull the front bezel tight against the door. A continuous poured polyurethane gasket ensures a watertight seal, maintaining the cabinet's NEMA rating.
VESA Mounting: This utilizes standard hole patterns, typically 75mm or 100mm, on the rear of the device. You attach the unit to articulating arms, desktop stands, or wall brackets. VESA mounts provide ergonomic flexibility for operators standing at data workstations.
Rack Mounting: This integrates the panel PC into standard 19-inch server racks. This approach places the HMI directly alongside networking gear in server rooms or mobile broadcast units.
OEM Integration: Machine builders use custom open-frame designs as drop-in replacements for legacy machinery, allowing them to upgrade the computing power without redesigning the entire machine chassis.
I/O connectivity bridges the gap between modern computing and legacy industrial equipment. While USB and HDMI are standard, industrial environments require specialized ports. Native COM ports (RS-232/422/485) remain essential. Many older PLCs, CNC machines, and industrial sensors rely on serial communication. USB-to-serial adapters introduce latency and driver dropouts. Native COM ports ensure reliable, direct communication with legacy hardware.
Network architecture demands robust Ethernet connectivity. Dual Gigabit LAN ports are standard on industrial units. They provide network redundancy. If one switch fails, the secondary port maintains the connection. More importantly, dual LAN allows for the physical separation of IT (Information Technology) and OT (Operational Technology) networks. This separation prevents direct access to critical control systems from the corporate network, hardening your facility against cyber threats.
Expansion slots provide future-proofing. PCIe or Mini-PCIe slots allow you to add proprietary fieldbus cards, such as EtherCAT or PROFINET. They also accommodate cellular modems or Wi-Fi modules for remote connectivity. This flexibility ensures the panel PC adapts to evolving communication standards without requiring a complete hardware replacement.
Deploying a 19 inch industrial panel PC involves navigating specific implementation risks. Commercial-grade all-in-one PCs look appealing due to lower upfront acquisition barriers. However, deploying commercial hardware in industrial settings leads to high failure rates. Dust clogs active cooling fans, causing thermal shutdowns. Commercial touchscreens fail under heavy use. The continuous replacement cycle causes severe operational downtime.
Supply chain reliability directly impacts facility uptime. When a machine goes down, you need replacement hardware immediately. Partner with vendors who offer reliable delivery from stock or rapid COTS (Commercial Off-The-Shelf) availability. Long lead times for custom configurations leave production lines idle. Standardizing on a widely available form factor mitigates this risk.
Deployment pitfalls often stem from environmental oversights. Inadequate grounding is a common issue. Ground loops cause touchscreen ghosting or complete interface failure. You must adhere strictly to industrial grounding protocols. Use isolated I/O ports to protect the motherboard from voltage spikes generated by heavy machinery starting up on the same power grid.
Operator rejection is another significant hurdle. If a touchscreen does not respond well to the required PPE, operators will find workarounds or damage the screen out of frustration. Mandatory pilot testing with actual factory floor PPE prior to mass deployment is essential. You must verify that the screen registers inputs accurately with the exact gloves your team wears daily.
Operating System (OS) compatibility requires long-term planning. Consumer versions of Windows force automatic updates. These updates break legacy SCADA software or force unexpected reboots during production runs. Windows 10 or 11 IoT Enterprise provides long-term update control. It allows administrators to lock down the system, disable unnecessary features, and utilize kiosk mode. Kiosk mode restricts users to a single application, preventing unauthorized software installations.
A locked Bill of Materials (BOM) guarantees hardware consistency. Consumer PC manufacturers constantly change internal components based on availability. A different motherboard revision requires new drivers, breaking your certified software image. Industrial vendors provide a locked BOM. The internal components remain identical for the product's 5-7 year lifecycle. This consistency allows you to maintain a single software image for all deployed units, drastically reducing IT overhead.
Audit your physical mounting constraints and measure existing panel cutouts before selecting a chassis type.
Define your legacy I/O requirements, specifically noting the required number of native COM ports and dual LAN connections.
Assess operator PPE requirements to determine whether PCAP or resistive touch technology is appropriate for your facility.
Request a demo unit to conduct environmental and operator testing under actual production conditions.
A: Industrial panel PCs feature fanless designs, rugged metal housings, and wide operating temperature ranges. They utilize industrial-grade components designed to withstand continuous vibration and dust. Commercial PCs use active cooling fans that draw in contaminants and lack the IP ratings required for factory environments. Industrial units also offer extended lifecycle availability.
A: Yes, but you must select the correct touch technology. Analog resistive touchscreens respond to physical pressure and work flawlessly with any glove type. Projected Capacitive (PCAP) screens rely on electrical conductivity and generally struggle with thick leather or heavy rubber gloves, though some can be specially tuned for light glove use.
A: Yes. For outdoor or brightly lit environments, you need a high-brightness display. Look for panels rated at 1000 nits or higher for true sunlight readability. Additionally, the unit should feature anti-glare coatings, UV-resistant touch sensors, and an all-weather enclosure capable of managing internal condensation and extreme temperatures.
A: An IP65 front panel rating means the front bezel and touchscreen are entirely dust-tight and protected against low-pressure water jets from any direction. However, this rating only applies to the front. The back of the unit remains vulnerable and must be installed inside a sealed control cabinet to maintain overall system protection.
A: Mounting options depend on the environment. Panel mounting integrates the unit flush into a control cabinet door using cutouts and mounting clips. VESA mounting uses standard rear hole patterns for attachment to articulating ergonomic arms. Rack mounting fits the unit into standard 19-inch server racks. OEM integration allows for custom machine placement.
A: Many industrial facilities still operate legacy PLCs, CNC machines, and specialized sensors that do not support Ethernet communication. Native COM ports provide reliable, direct serial communication without the latency or driver instability often introduced by USB-to-serial adapters. This ensures seamless integration with existing operational technology.
A: A locked Bill of Materials (BOM) is a vendor guarantee that the internal components of a PC will not change during its lifecycle. This matters because changing a motherboard or network controller requires new drivers. A locked BOM allows IT departments to build and maintain a single, stable software image for years.
