Integrating an HMI directly into machine enclosures, walls, or control cabinets requires precise mechanical alignment to maintain structural integrity and aesthetic uniformity. Engineers and system integrators must achieve a perfect flush mount without compromising the enclosure's ingress protection (IP) rating, thermal dissipation, or vibration resistance. Poor mounting execution leads to gasket failure, moisture ingress, and premature hardware failure. An Embedded Industrial Panel PC is a ruggedized, all-in-one computing solution that combines a touchscreen display with an embedded processor. Unlike standalone monitors, it requires accounting for both display ergonomics and internal computing thermals. This guide covers the mechanical requirements, evaluation criteria and implementation steps for flush mounting an embedded industrial panel PC into industrial equipment and operator consoles.
Precision Cutouts are Critical: Flush mounting requires exact cutout dimensions and enclosure material thicknesses so the mounting clips can generate adequate compression.
Sealing Dictates Reliability: An IP65, IP67 or IP69K rating at the integration point depends on gasket alignment and uniform torque during installation.
Thermal Clearance is Non-Negotiable: Embedding a PC in a sealed cabinet alters its thermal dynamics, so rear clearance and passive cooling pathways must be designed in.
Hardware Selection Impacts Maintenance: The bezel type and mounting mechanism decide whether servicing needs full machine downtime or simple rear access.
Flush mounting integrates the display directly into a flat surface: you cut a precise hole, the rear chassis passes through it, and only the front bezel remains visible outside. Unlike VESA mounts on external arms or wall mounts hung on a surface, it optimizes physical space, eliminates external cable routing and keeps cables protected inside the cabinet.
The anatomy of a panel mount industrial computer involves several specific components. The flanged front bezel overlaps the cutout edges, the rear chassis houses the processor, memory and I/O ports, a waterproof gasket sits behind the bezel, and mounting brackets pull the assembly tight against the exterior wall, compressing that gasket to create the environmental seal.
Success criteria depend on three mechanical factors: structural rigidity, so the enclosure supports the device weight without flexing; environmental sealing, so the gasket prevents fluid and dust ingress; and aesthetic alignment, since the screen must sit perfectly level. Crooked installations signal uneven gasket compression, which guarantees eventual seal failure.
Mounting Method | Space Efficiency | Cable Protection | Environmental Sealing | Best Application |
|---|---|---|---|---|
Flush / Panel Mount | Excellent | Internal / Fully Protected | High (IP65/IP67 at front) | Control cabinets, machine doors |
VESA Mount | Moderate | External / Exposed | Depends on chassis rating | Articulating arms, operator stations |
Wall Mount | Good | External / Conduit required | Depends on chassis rating | Facility walls, structural pillars |
Three numbers have to be checked before any metal is cut: the cutout the chassis passes through, the depth it occupies behind the panel, and the mass the door has to carry without bowing.
Specification | 15-inch | 17-inch | 19-inch |
|---|---|---|---|
Overall dimensions (W x H x D) | 358.4 x 286.7 x 49.1 mm | 383.8 x 315.3 x 49.6 mm | 429.5 x 357 x 49.6 mm |
Suggested cutout (W x H) | 349.4 x 277.7 mm | 381 x 312.9 mm | 425.5 x 350.5 mm |
Gross weight | 3.7 kg | 5.6 kg | 6.2 kg |
Display resolution | 1024 x 768 | 1280 x 1024 | 1280 x 1024 |
Brightness / contrast | 350 cd/m2 / 1000:1 | 250 cd/m2 / 1000:1 | 250 cd/m2 / 1000:1 |
Touch panel | Capacitive, USB controller, rated for 5 million touches or more | same | same |
Mounting method | Embedded / wall mounted / desktop | same | same |
Power input | DC 12 V (optional 9-36 V wide voltage) | same | same |
Two conclusions follow. Chassis depth stays under 50 mm, so roughly 50 mm of rear clearance leaves room for cabling even in a shallow machine door; and because the cutout grows about 35 mm per size step, an enclosure built around a 15-inch unit can often be re-cut for a 17-inch unit later.
Computing and interface options are configured per project rather than fixed by panel size. The same panel and cutout accept either an Intel computing module or an Android one, and the I/O set covers dual LAN, 2 x RS-232/485 expandable to 6 x RS-232, 4 x USB, HDMI and VGA, optional GPIO, plus Windows and Linux. Cooling is fully passive with the rear chassis acting as the heatsink. Operating temperature is -10 C to 60 C; storage is -20 C to 70 C on the 15-inch unit and -20 C to 60 C on the 17 and 19-inch units.
Because cutouts, bezel finishes and interface layouts are project-specific, ask the vendor for the DXF or STEP file and for the panel PC customization service before committing to a door design.
Before cutting metal, evaluate the installation site, because poor planning leads to ruined enclosures and thermal failures.
Evaluate internal hardware requirements early, because CPU, RAM and storage dictate power draw and high-performance processors generate heat that constrains the enclosure. Select an industrial touchscreen HMI computer with a fanless architecture: solid-state designs minimize failure points, and passive heatsinks reject heat through the rear chassis, which you have to account for in the cabinet. Simple HMI applications need minimal CPU power, while machine vision or local database hosting demands more - and more performance means larger heatsinks and a deeper rear chassis, so verify depth against your cabinet dimensions.
Processor selection is usually finalized later than the panel size, so the practical answer is a platform offering more than one computing module on an identical chassis. When the same cutout accepts either an Intel board or an Android board, the mechanical design - cutout, gasket, clips and cable entry - does not change when the control software does, and a builder can standardize on one panel across product lines. It also keeps spare-part inventory small: one panel size, one gasket type and one clip set.
Stainless steel offers excellent rigidity, aluminum conducts heat well, polycarbonate panels may need internal reinforcement, and reinforced drywall works for facility integration. Whatever the material, it must prevent bowing under the PC's weight, because a bowing panel breaks the waterproof seal by pulling the enclosure away from the gasket. Most standard mounting clips require 1.5 mm to 6.0 mm: thinner panels may warp, and thicker panels prevent clips from engaging. Measure before ordering hardware, and if the panel exceeds the maximum, order custom mounting studs.
Analyze the environmental risks of the deployment area. Manufacturing floors expose equipment to metallic dust; food processing and chemical washdowns demand specific bezel materials, since stainless steel resists corrosion better than aluminum and polycarbonate screens resist shattering.
The IP rating relies on the installation: a factory-rated IP65 bezel means nothing if installed poorly, because any gap lets moisture destroy internal PLCs and power supplies. IP65 handles low-pressure jets, IP67 survives temporary submersion and IP69K withstands high-pressure, high-temperature washdowns, so match the rating to your cleaning protocols.
IP Rating | Solid Protection | Liquid Protection | Typical Industrial Use Case |
|---|---|---|---|
IP54 | Dust protected | Splashing water | Indoor dry manufacturing, packaging lines |
IP65 | Dust tight | Low-pressure water jets | CNC machining, general automation |
IP67 | Dust tight | Temporary submersion | Heavy washdown areas, outdoor kiosks |
IP69K | Dust tight | High-pressure, high-temp jets | Food processing, pharmaceutical cleanrooms |
The rating is only meaningful once verified on the assembled machine, not on the panel alone. Ask which IP level the specific model has actually been tested to at the front face and under what gasket conditions, rather than assuming this guide's IP65 discussion applies to every unit.
Embedding a heat-generating device alters cabinet temperatures, and sealed cabinets trap hot air. Because the PC relies on a temperature delta to cool itself, cooling stops once the cabinet air matches the heatsink temperature: the processor throttles, then shuts down.
Leave at least 50 mm behind the chassis plus lateral clearance for airflow, and never pack cables against the cooling fins or route wire ducts through the exhaust zones. Vertical heatsink fins promote natural convection; horizontal fins trap hot air against the chassis.
Deeper treatment of long-run cooling behaviour inside sealed cabinets is covered in our guide to stable cooling during long operation.
Proper execution prevents hardware damage and maintains warranties, and rushing the installation guarantees future problems.

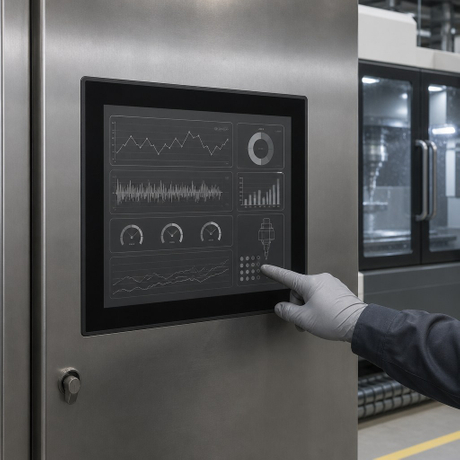

Figure 1 - The finished integration: only the front bezel sits proud of the cabinet door, while the cutout, gasket and rear cabling stay protected inside the enclosure.
Precision Cutout and Surface Preparation: Use vendor-supplied mechanical drawings, downloading the DXF or STEP files and using them to program your laser cutter or CNC punch. Even a one-millimeter deviation causes problems: a cutout that is too large prevents the gasket from sealing, and one that is too small prevents chassis insertion. Deburring the edges is mandatory, since sharp edges can slice the gasket. Remove all metal shavings and cutting fluids with a degreaser so the gasket seats against a perfectly flat, clean surface and does not snag during insertion.
Gasket Placement and Chassis Insertion: Inspect the factory-installed gasket for tears, dry rot or missing sections, and do not substitute liquid sealants, because silicone caulking makes removal impossible and voids most warranties. Insert the computer through the cutout from the front, supporting the heavy rear chassis; two technicians may be needed above 15 inches. Do not drag the bezel against the cutout edges, because that can tear or roll the gasket and compromise the entire IP rating.
Securing the Mounting Hardware: Standard hardware includes dog-bone clips, threaded studs for thick enclosures and clamp brackets for heavy-duty compression. Check the kit first, since missing clips create weak points in the seal. Attach the clips to the rear chassis slots, hook them behind the host panel, space them evenly around the perimeter, hand-tighten, and confirm the device sits level before applying torque, because the alignment cannot be adjusted afterwards.
Torque Specifications and Seal Verification: Tighten the screws in an alternating star pattern - top left, bottom right, top right, bottom left - because tightening one side completely warps the bezel and lifts the opposite side. Use a torque-limiting screwdriver and the torque from the manual: excessive force crushes the seal permanently and can crack the touchscreen glass. Most industrial panels require very low torque, typically around 1.2 Nm (10.6 in-lbs). Finally, shine a flashlight around the bezel edge and confirm no gaps exist.
Standard aluminum bezels have a raised lip that protects the screen from side impacts and houses the touchscreen membrane, but it creates crevices where dust, oil and food particles accumulate, so they suit dry manufacturing environments. True-flat glass fronts eliminate those crevices by extending the glass to the edge of the chassis, which is why food processing and pharmaceutical facilities specify them: zero-bezel screens wipe clean instantly, harbor no bacteria and resist chemical sanitizers.
Projected capacitive (PCAP) screens offer true-flat aesthetics, multi-touch gesture control and scratch-resistant glass, but they need tuning for heavy gloves, since thick leather blocks the capacitive signal, and standing water can cause ghost touches. Resistive touchscreens work via physical pressure and suit environments requiring heavy PPE or tools - they respond to thick gloves, styluses or wrenches and ignore water droplets - but they need a bezel lip to house the flexible membrane, which is susceptible to punctures.
For capacitive screens, confirm the specification against the real working condition rather than the datasheet. A panel driven through a USB controller and rated for five million touches or more is a reasonable baseline for a control surface pressed across three shifts, and with no membrane to puncture it cleans down more easily than a resistive overlay. The variables still to check are glove thickness, standing water and electrical noise from nearby drives, so ask how sensitivity is calibrated and test with the gloves your operators actually wear.
Standard touchscreens have a small air gap between the LCD panel and the touch sensor, and rapid temperature changes condense moisture inside it. Flush mounting makes this worse by trapping the screen against the cold exterior while the rear chassis generates heat. Optical bonding fills that gap with clear resin, eliminating internal fogging and increasing the durability of the glass.
Uneven force strips mounting threads, warps the touchscreen assembly and creates microscopic gasket gaps that draw in moisture through capillary action, while the operator may not notice until water corrodes the electronics. Mandate torque-limiting screwdrivers and specified inch-pounds or Newton-meters, train technicians on star-pattern tightening, and have a second technician verify the settings. Never use power drills on mounting clips; they apply unpredictable torque spikes.
CNC machines, stamping presses and injection molders generate vibrations that travel through the enclosure into the mounting hardware, gradually backing out the clips until the seal breaks and the computer rattles in the cutout. Use thread-locking compounds on all mounting screws, specify industrial-grade SSDs instead of spinning drives, choose fanless architectures, and zip-tie internal cables so they cannot chafe and cause shorts.
Flush mounting into a non-ventilated cabinet traps heat and pushes the PC past its maximum operating temperature, causing CPU throttling or sudden failure, rapid capacitor degradation and erratic touchscreen behaviour. Model the cabinet interior thermally, including PLCs, power supplies and drives, and consider cooling units or heat exchangers. Select a wider operating temperature range and paint the cabinet a light colour.
Check the actual rating rather than the headline class. A panel PC specified for -10°C to 60°C covers most indoor machine-shop and cleanroom installations, but the cabinet's internal air temperature decides whether the processor throttles. Where the enclosure will exceed that band - a foundry, a cold store or an outdoor kiosk - select a unit whose published range covers the site, and treat storage limits such as -20°C to 70°C as transport figures only.
Flush mounting a metal chassis into a metal enclosure requires proper grounding, because ground loops cause erratic touchscreen behaviour and inject noise into the processor. Connect the grounding lug on the rear chassis directly to the cabinet earth - do not rely on the mounting clips, since painted enclosures insulate them - scraping away a little paint near the stud if necessary, and use a braided strap for high-frequency noise rejection.
Grounding is the first line of defence against electromagnetic interference, not only a safety measure. An all-metal chassis against a metal enclosure shields well, but it creates a long loop when the earth path is left to the mounting clips. Bond the stud to the cabinet earth with a braided strap, keep inverter and servo cables separated from the panel's signal and serial runs, and specify a wide-voltage DC input - 12 V nominal with an optional 9-36 V range - so supply transients are less likely to reach the processor. Units engineered for electromagnetic compatibility in a drive-heavy cabinet put that bond on a dedicated stud, so the shielding path survives maintenance and repainting.

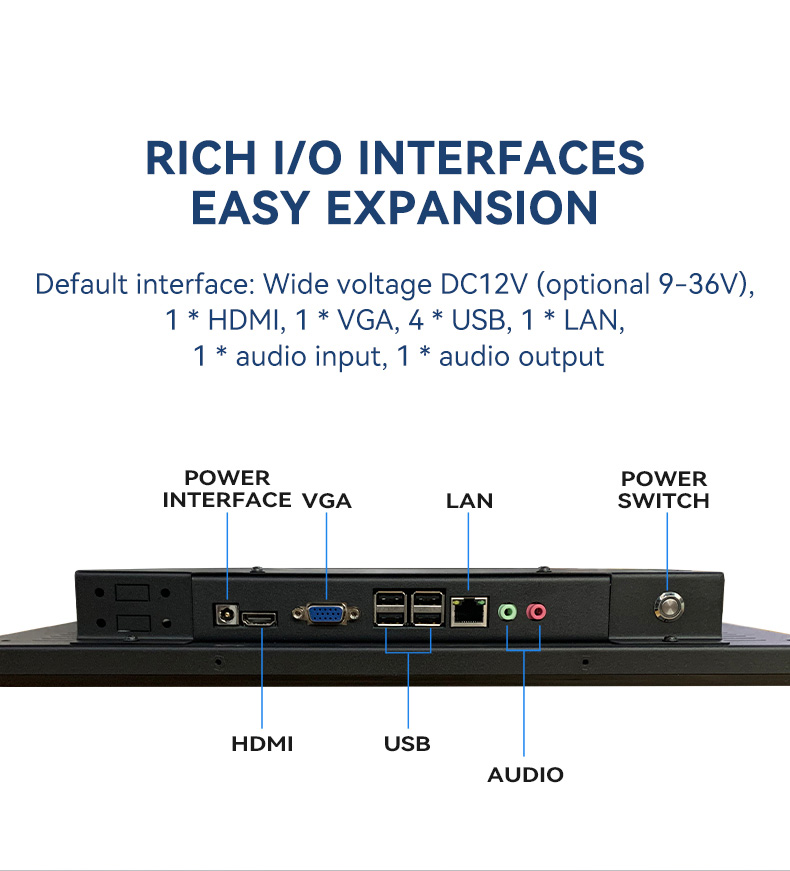

Figure - The rear connection interface of a fanless embedded panel PC: wide-voltage DC input, HDMI and VGA, 4 x USB, dual LAN, audio and expandable RS-232/485 serial ports, with the earth stud used for cabinet bonding.
A standard flush installation needs rear cabinet access: technicians open the control panel, unseat the clips and push the unit out through the front, which takes time and requires machine shutdown. Modular panel PCs detach the computing box from the bezel without breaking the front IP seal, so only the rear module is swapped - which minimizes downtime, speeds up board replacement and simplifies spare parts.
Measure the internal depth and thermal load of the enclosure to confirm clearance for a fanless chassis.
Download the exact DXF or STEP files for your CNC or laser cutter.
Specify the Newton-meter torque settings and procure a torque-limiting screwdriver.
Apply a medium-strength thread-locking compound to all mounting clips.
Bond the rear chassis earth stud to the cabinet, and confirm the IP level of the model before sealing the machine.
A: They describe the same integration method: both insert the device through a cutout so the front bezel sits against the exterior surface. Some engineers reserve "flush mount" for zero-bezel designs sitting level with the enclosure; panel mounts may have a slight overlapping lip.
A: Flush mounting optimizes space and protects cables. VESA mounts expose cables and need articulating arms, whereas flush mounting embeds the device in machine doors or walls, using the host enclosure for extra protection.
A: With a flawless seal. Cut the panel precisely so the surface stays flat, use the factory-supplied gasket, and tighten the clips evenly in a star pattern. Uneven torque breaks the seal and voids the rating.
A: There is no universal standard; dimensions vary between manufacturers and screen ratios, so always request the DXF or STEP file before cutting metal. For reference, one fanless 4:3 range uses a 349.4 x 277.7 mm cutout on the 15-inch model, 381 x 312.9 mm on the 17-inch and 425.5 x 350.5 mm on the 19-inch.
A: Yes. Stainless steel gives superior rigidity and prevents bowing under the weight of the computer. Make sure the clips match the panel's gauge thickness so the gasket compresses properly.
A: At least 50 mm for most fanless systems, so the passive heatsink can radiate heat. Leave lateral clearance too, and never pack cables against the rear chassis.
A: Connect the grounding lug to the cabinet earth with a braided strap instead of relying on the mounting clips, which painted enclosures insulate. Separate power cables from signal and serial runs, use shielded cable for serial lines, and specify a wide-voltage DC input so supply transients cannot easily reach the processor.
A: Yes. One 15, 17 or 19-inch chassis keeps a single cutout, gasket and clip set per size, while several computing modules fit the same panel, including Intel and Android configurations, which keeps spare-part inventory small.
