Smart pharmacy automation is changing how pharmacies, hospitals, and healthcare technology integrators manage dispensing workflows, operator interfaces, and connected equipment. Behind every automated dispensing cabinet, robotic pharmacy module, barcode workflow, or centralized dispensing line, there is a human-machine interface that operators must be able to read and control with confidence.
That is where an industrial touch panel PC for smart pharmacy automation becomes important. Instead of combining a separate monitor, computer, and mounting frame, an industrial panel PC can provide a compact touchscreen control platform for pharmacy automation equipment and operator workstations.
MeetNENG industrial touch panel PCs are designed for embedded, wall-mounted, desktop, cantilever-mounted, and boom-mounted installations. Depending on the selected configuration, the product family supports multiple screen sizes, Intel processor options, expandable memory and storage, a 10-point capacitive touchscreen, front-panel IP65 protection, and wide-temperature operation.
Pharmacy automation is not only about the dispensing mechanism. Operators also need a clear interface for workflow instructions, machine status, inventory information, exception handling, barcode processes, and system communication. The HMI must fit the physical equipment, remain easy to operate, and work with the software environment selected by the system integrator.
A standard office computer may be unsuitable when the device needs to be embedded into a control cabinet, mounted at an operator station, or used in a space where the front panel is cleaned frequently. A dedicated industrial touch panel PC can simplify the mechanical and electrical design by bringing the display, processing platform, touch interface, and essential connectivity into one enclosure.
For hospital pharmacy automation projects, the right hardware should be selected together with the complete system design. The panel PC is an HMI and computing platform; it does not replace the pharmacy management system, dispensing robot, automated dispensing cabinet, barcode system, or required validation and compliance process.

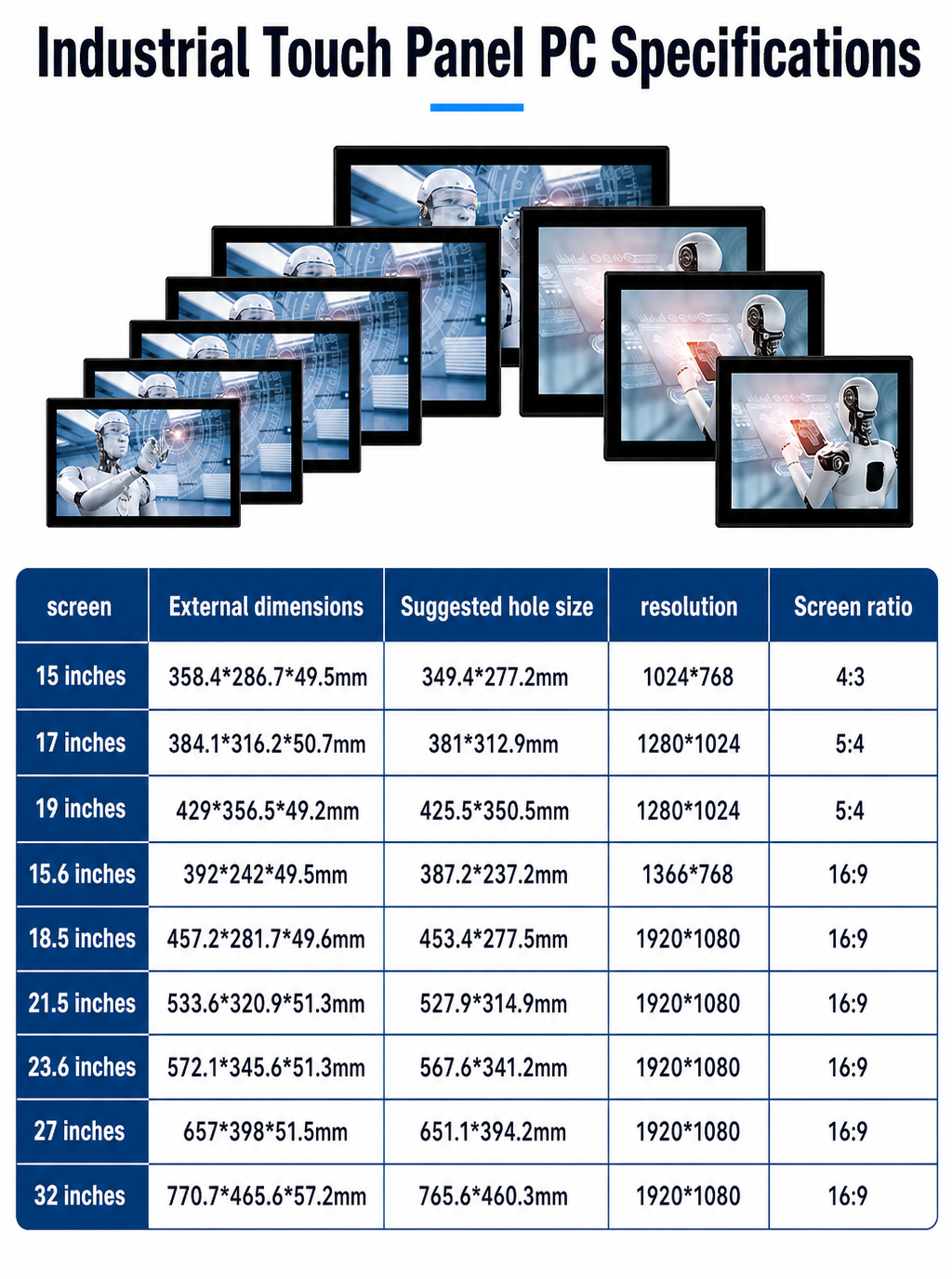

Operators need enough screen area to view information without making the control panel unnecessarily large. MeetNENG’s product materials show a range of screen sizes from 15 inches to 32 inches, including 15, 17, 19, 15.6, 18.5, 21.5, 23.6, 27, and 32-inch options.
This range allows integrators to match the panel PC to different applications:
● A compact screen for a space-limited control cabinet
● A medium-size display for an automated dispensing workstation
● A larger screen for dashboards, multi-step workflows, or multiple information panels
The best choice depends on viewing distance, software interface design, available panel space, and the mounting cutout. Always confirm the final dimensions and hole size for the selected model before production.
A pharmacy automation HMI may need to run a simple control interface, a browser-based dashboard, a local application, or several connected software services. The required configuration will therefore vary by project.
The MeetNENG product range shown in the supplied materials includes Intel Celeron J1800/J1900 and Intel Core options from the 3rd through 10th generation, with memory options shown as 4GB, 8GB, 16GB, and 32GB. These options give OEMs and system integrators a starting point for matching computing capacity to their application.
Before placing an order, confirm:
● Operating system and software compatibility
● Application memory requirements
● Whether local data storage is required
● Whether the computer will connect to a remote server or cloud platform
● Whether the selected CPU, RAM, and storage combination is available for the target screen size
Touch interaction is central to an HMI. Pharmacy automation operators may need to acknowledge an alert, select a dispensing task, enter a quantity, scan a code, or move through a workflow quickly.
The MeetNENG materials show a 10-point capacitive touchscreen. A multi-touch interface can support modern software interfaces and provide a familiar interaction method for operators. For a real project, buyers should also test the touch experience with the intended gloves, screen layout, user interface controls, and cleaning procedure.
The touch panel should be evaluated as part of the complete application—not only as a display specification. Button size, screen brightness, viewing angle, software response, and operator training all affect usability.

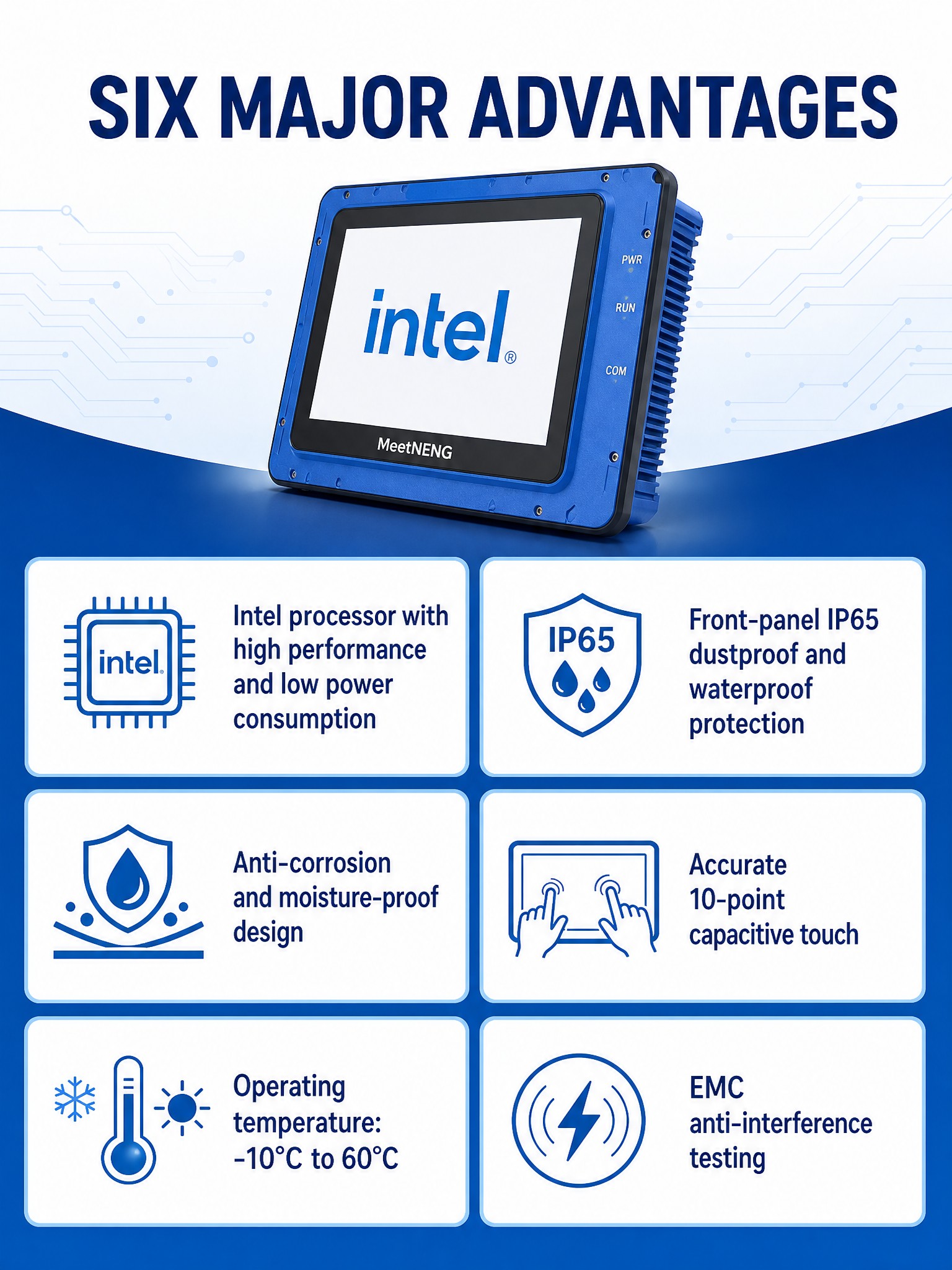

Pharmacy automation equipment may be located in areas where the front surface is cleaned regularly or exposed to dust and occasional moisture. The supplied MeetNENG product materials identify front-panel IP65 dustproof and waterproof protection for the industrial panel PC design.
IP ratings should always be reviewed in context. A front-panel rating is not automatically the same as full-enclosure protection, and it does not define resistance to every chemical, cleaning agent, immersion condition, or installation environment. Integrators should confirm the exact model’s test conditions and cleaning compatibility before deployment.
For a smart pharmacy project, useful questions include:
● Is the IP65 protection specified for the front panel only?
● How is the panel sealed after installation?
● Which cleaning agents are approved for the surface?
● Does the installation frame maintain the intended protection level?
● Are connectors and cable exits protected in the finished machine?
Automation equipment may operate in different rooms, cabinets, warehouses, or production-support areas. According to the supplied product materials, the shown operating temperature range is -10°C to 60°C, while the storage temperature range is shown as -20°C to 70°C. Relative humidity is shown as 5% to 95% without condensation.
The materials also show a wide-voltage DC12V input, with an optional 9–36V range. This may be useful for OEM machine designs with different power architectures, but the exact input option must be confirmed for the selected configuration.
The same materials identify EMC anti-interference testing as a product feature. Buyers should request the applicable test documentation and verify that the final integrated machine meets the standards required for its target country and application.
The panel PC should be selected together with the machine structure. A mismatch between the display dimensions and the cutout can lead to mechanical redesign, delayed assembly, or an uncomfortable operator position.
MeetNENG’s installation graphic shows six mounting approaches:
1. Snap-embedded installation
2. Wall-embedded installation
3. Wall-mounted installation
4. Desktop installation
5. Cantilever-mounted installation
6. Boom-mounted installation
The product materials also show common interfaces including HDMI, VGA, four USB ports, LAN, and audio. Depending on the project, integrators may need additional interfaces, wireless communication, 4G/5G connectivity, serial communication, or another expansion module. These requirements should be confirmed before the final configuration is approved.
Pharmacy automation equipment is rarely identical from one project to another. A panel PC may need a specific mounting cutout, screen ratio, processor, memory, storage device, logo, interface combination, brightness level, or installation method.
The supplied MeetNENG OEM/ODM material presents customization options for:
● Color
● Shape
● Size
● Material
● Logo
● Resolution
● Brightness
● Screen format
● Interface
● Configuration
● Peripheral modules
● Installation method
This is valuable for automation equipment manufacturers that need the HMI to fit an existing enclosure or a new machine design. Customization should be treated as an engineering process: provide the machine drawings, display opening, installation orientation, software requirements, power input, interface list, and target environment so the supplier can confirm feasibility.
For projects that require a branded operator interface, ask the supplier whether the boot screen, logo, enclosure finish, packaging, and documentation can be customized for the final machine.
A successful pharmacy automation project requires more than a product page. Before confirming a panel PC supplier, request a configuration sheet and clarify:
● The exact screen size, resolution, aspect ratio, and external dimensions
● The suggested panel cutout or hole size
● CPU, RAM, storage, and operating system options
● Touchscreen type and touch performance with gloves
● Front-panel protection scope and cleaning instructions
● Operating and storage temperature conditions
● Power input and consumption for the selected model
● Interface and expansion requirements
● Installation method and mechanical drawings
● Sample availability for software and mechanical testing
● Quality documents, test reports, and country-specific compliance requirements
● Warranty, lead time, minimum order quantity, and after-sales support
For healthcare-related automation, it is especially important to separate hardware capability from system-level compliance. The panel PC may be one component of a larger solution, while the automation system, software, data security, validation, and local regulatory responsibilities belong to the complete project team.
It is an integrated computing and touchscreen platform used as the human-machine interface for pharmacy automation equipment, operator workstations, control cabinets, and connected dispensing workflows. It combines a display, computer hardware, touch input, and selected interfaces in one industrial enclosure.
Yes, an embedded panel PC can be designed into a machine panel or control cabinet when the dimensions, cutout, mounting structure, power input, operating temperature, and connector locations are suitable. The selected model should be checked against the mechanical drawing before production.
The supplied product materials show snap-embedded, wall-embedded, wall-mounted, desktop, cantilever-mounted, and boom-mounted installation methods. Final availability depends on the selected model and project configuration.
The supplied materials show screen sizes from 15 inches to 32 inches, including both 4:3/5:4 and 16:9 formats. Confirm the exact size, resolution, dimensions, and cutout for the model required by your system.
The supplied product materials identify front-panel IP65 dustproof and waterproof protection. Buyers should confirm the exact rating scope, installation conditions, connector protection, and approved cleaning process for the selected configuration.
The supplied materials list Windows 7/8/10, Linux, and Android as system options. Operating-system availability should be confirmed for the selected CPU, memory, storage, and software requirements.
The supplied OEM/ODM material shows customization options covering size, shape, color, logo, resolution, brightness, interfaces, configuration, peripheral modules, and installation method. Share your drawings and application requirements to confirm the feasible configuration.
No. It is a configurable industrial computing and HMI platform. The complete pharmacy automation system may also include dispensing machinery, pharmacy software, scanners, controllers, network infrastructure, validation, safety measures, and country-specific compliance work.
A smart pharmacy automation project needs an HMI that fits the machine, supports the software, and remains practical for daily operation. Screen size, touch response, front-panel protection, temperature range, power input, installation method, connectivity, and customization all influence the final result.
MeetNENG industrial touch panel PCs provide a configurable starting point for pharmacy automation OEMs, system integrators, and equipment manufacturers. With multiple screen sizes, Intel processor options, 10-point capacitive touch, flexible installation methods, and OEM/ODM configuration support, the platform can be evaluated for automated dispensing equipment, pharmacy workstations, and other industrial healthcare-technology interfaces.
Planning a pharmacy automation HMI? Contact MeetNENG with your required screen size, panel cutout, CPU, memory, storage, operating system, mounting method, interfaces, and environmental conditions. The MeetNENG team can help review the configuration for your machine design.
