Manufacturers are moving from paper-based production records and isolated machine screens toward connected shop-floor workstations. The goal is simple: make production instructions, work orders, machine status, quality checks, and operator input available where the work takes place.

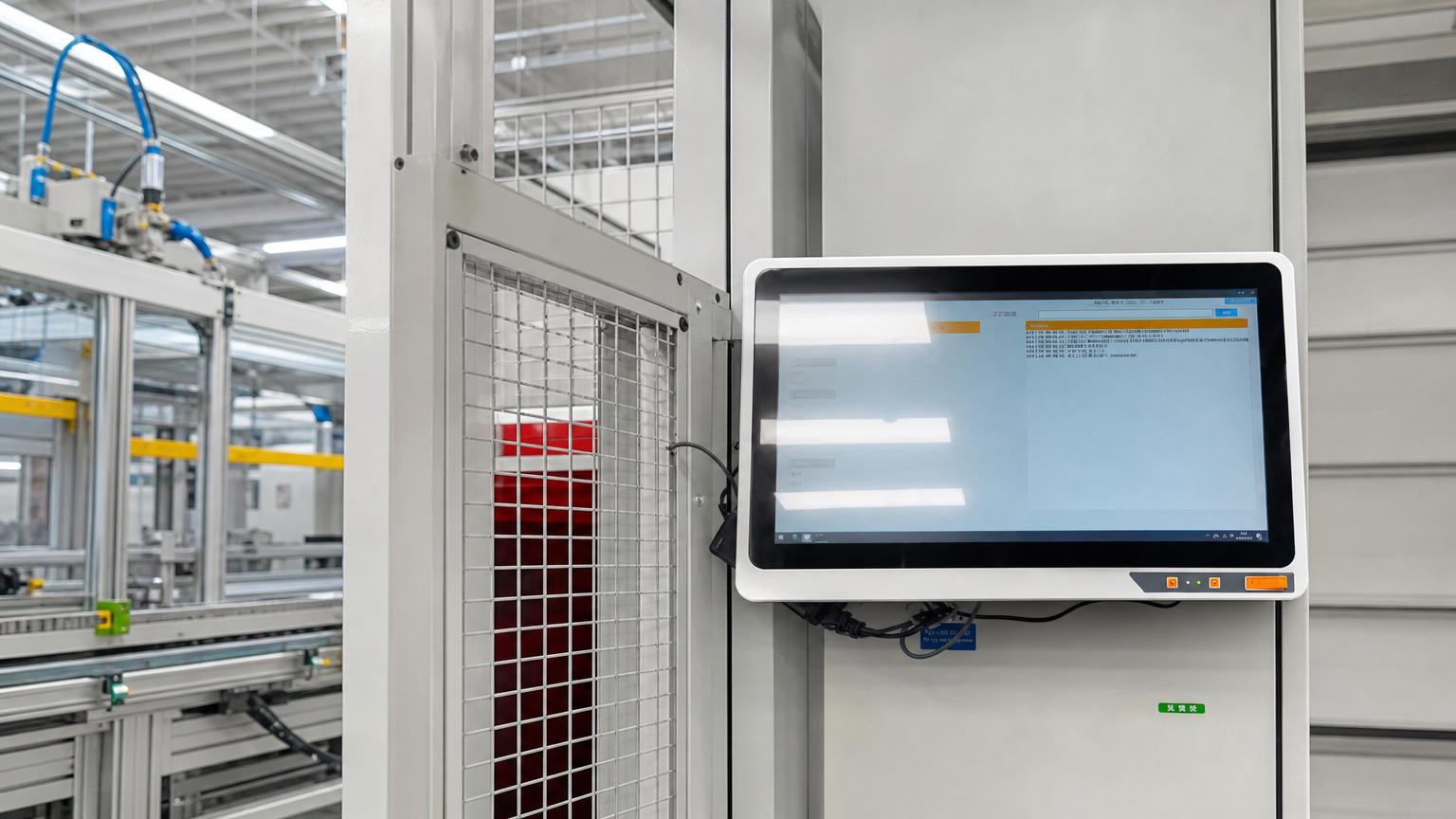

An industrial panel PC can serve as the operator-facing hardware layer in that architecture. It can provide a touchscreen interface at a machine, production cell, inspection station, or line-side workstation while the software team connects the terminal to the plant’s MES, ERP, SCADA, or manufacturing applications.
MeetNENG industrial touch all-in-one computers are designed for industrial control and operator-interface applications. The supplied product materials show Intel processor options, DDR3/DDR4 memory support up to 32GB, SSD/HDD storage options, HDMI and VGA output, Gigabit Ethernet, optional wireless connectivity, front-panel IP65 protection, dual-fan assisted heat dissipation, and a range of physical interfaces.
Quick answer: An industrial panel PC does not automatically create an MES/ERP integration. It provides the rugged touchscreen computer and I/O platform on which the plant’s approved software, browser interface, HMI application, or data-collection client can run. The final integration depends on the MES, ERP, machine controls, network design, software, and system integrator.
In a connected manufacturing environment, MES and ERP systems serve different but related purposes. ERP commonly supports higher-level business planning, orders, materials, and resource information. MES focuses more closely on production execution, work instructions, tracking, quality, and shop-floor events.
The operator terminal sits at the point where people and equipment interact with those systems. Depending on the plant architecture, an industrial panel PC may be used to:
● Display work orders and digital work instructions
● Let operators confirm process steps
● Support production-status updates
● Present machine or line dashboards
● Provide a browser or local application interface
● Collect operator-entered production information
● Display quality-check or inspection forms
● Provide access to traceability or batch information
● Connect to scanners, peripherals, or local control equipment
The exact workflow depends on the software and controls selected by the manufacturer. The panel PC is the hardware platform; it is not a substitute for MES software, ERP software, PLC programming, SCADA configuration, network security, or production-process validation.
A normal office computer may be suitable for an administrative desk, but a machine-side or line-side workstation has different design constraints. The device may need to fit an enclosure, support touch operation, connect to industrial peripherals, withstand the plant environment, and remain serviceable for the expected lifecycle.
Industry buyers often compare an industrial panel PC with three other arrangements:
Hardware approach | Typical strength | Key question to verify |
Office desktop or laptop | Easy availability and general-purpose computing | Is it suitable for the mounting, environment, touch workflow, and service plan? |
Industrial monitor plus separate box PC | Flexible hardware separation | Will the enclosure, cables, power, and maintenance become more complex? |
Industrial panel PC | Integrated display and computing platform | Does the selected configuration match the application, cutout, I/O, and software? |
Thin client or dedicated terminal | Centralized application management | Does the plant network and software architecture support the required operating model? |
The best architecture is project-specific. For manufacturers that want a single machine-side touchscreen computer, an industrial panel PC can reduce the number of separate hardware components in the operator station.
Not every shop-floor terminal performs the same task. A simple browser-based production screen may have different requirements from a local HMI application, visualization dashboard, database client, or edge-processing workload.
The supplied MeetNENG product graphic shows Intel processor options, including processor families from Intel Celeron and Intel Core generations. It also shows DDR3/DDR4 memory support up to 32GB.
Before selecting a configuration, confirm:
● The operating system required by the MES, ERP client, HMI, or browser
● Application CPU and memory requirements
● Whether the terminal runs locally or accesses a remote application
● Whether local data caching or temporary storage is needed
● Whether the selected CPU and memory combination is available for the target model
Do not select a processor only because it appears powerful on a product sheet. Match the configuration to the software image, display workload, peripherals, network architecture, and expected service life.
A shop-floor terminal needs to be readable at its intended working distance. A small screen may be suitable for a compact machine interface, while a larger screen may be more appropriate for work orders, dashboards, multi-step instructions, or inspection forms.
The supplied product materials show multiple screen formats and sizes, including 10.4, 12.1, 15, 15.6, 17, 17.3, 18.5, 19, and 21.5-inch options. They also show capacitive and resistive touch options.
For the final selection, evaluate:
● Viewing distance and available machine-panel space
● Whether operators use gloves
● Required touch accuracy and button size
● Screen brightness and ambient factory lighting
● The mounting cutout and external dimensions
● Whether the interface needs to show a dashboard and data-entry controls together
Touch technology should be tested with the actual software controls and operator workflow rather than evaluated from the word “touch” alone.
The supplied MeetNENG feature graphic shows SSD/HDD storage options and support for dual hard drives. This may be relevant where the application needs local storage, a recovery partition, or a specific system image, but the required storage architecture should be confirmed with the software and IT teams.
The materials also show HDMI + VGA dual-display output, with support for synchronous or asynchronous dual display described in the source graphic. This can be considered when an operator station needs a second display, but the final output behavior depends on the operating system, graphics hardware, software, and connected monitors.
A panel PC installed inside or beside a machine may operate in a more constrained space than a desktop computer. Enclosure design, ambient temperature, airflow, processor selection, and service access should be reviewed together.

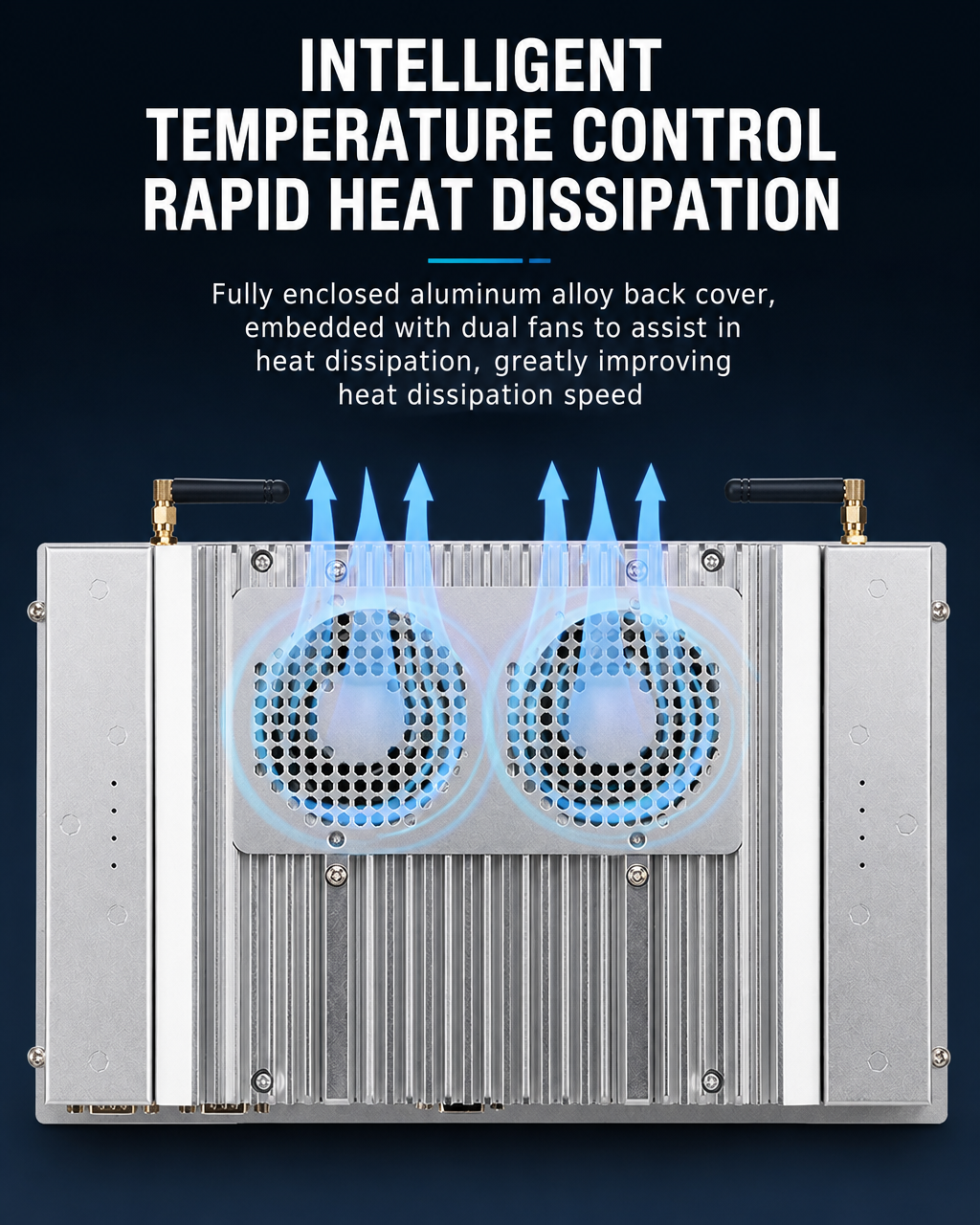

The supplied MeetNENG thermal graphic shows a fully enclosed aluminum-alloy rear cover with dual fans to assist heat dissipation. This is a visible design feature, not a guarantee of a particular operating temperature, noise level, or service life.
For the engineering review, ask:
● What is the operating temperature range for the exact configuration?
● Is the panel PC installed inside a sealed cabinet or in open factory air?
● How much clearance is required around the rear cover?
● How are the fans accessed for inspection or replacement?
● Does the machine enclosure need additional ventilation?
● Is the installation orientation compatible with the thermal design?
Thermal performance should be confirmed using the final processor, storage, enclosure, and operating conditions—not from a generic image alone.

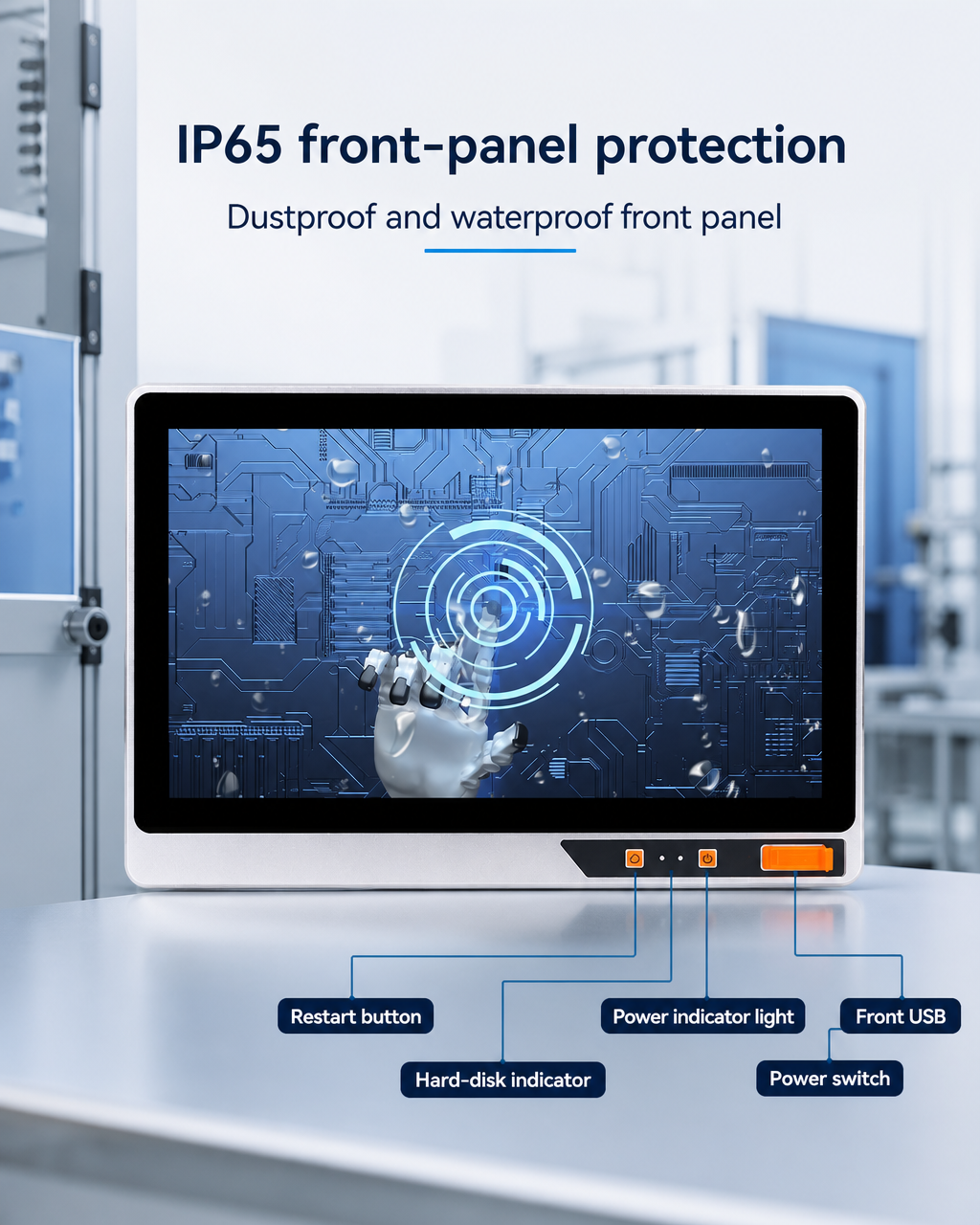

The supplied product graphic identifies IP65 protection for the front panel and describes the panel as dustproof and waterproof. This can be relevant for a machine-side interface that is exposed to factory dust or routine surface cleaning.
However, buyers should interpret the rating correctly. Front-panel IP65 does not automatically mean that the entire computer enclosure, rear connectors, cable exits, or finished machine assembly has the same protection level. It also does not, by itself, specify resistance to every cleaning chemical, high-pressure washdown, immersion condition, or corrosive atmosphere.
Before deployment, confirm:
● The exact scope of the IP65 rating
● The installation frame and gasket requirements
● The protection level of rear connectors and cable exits
● Approved cleaning agents and procedures
● The difference between dust/water protection and chemical resistance
● Whether the completed machine requires additional environmental protection
The physical interface design is central to a shop-floor terminal. Depending on the architecture, the terminal may need wired Ethernet, serial ports, USB peripherals, external displays, audio, power input, or optional expansion modules.

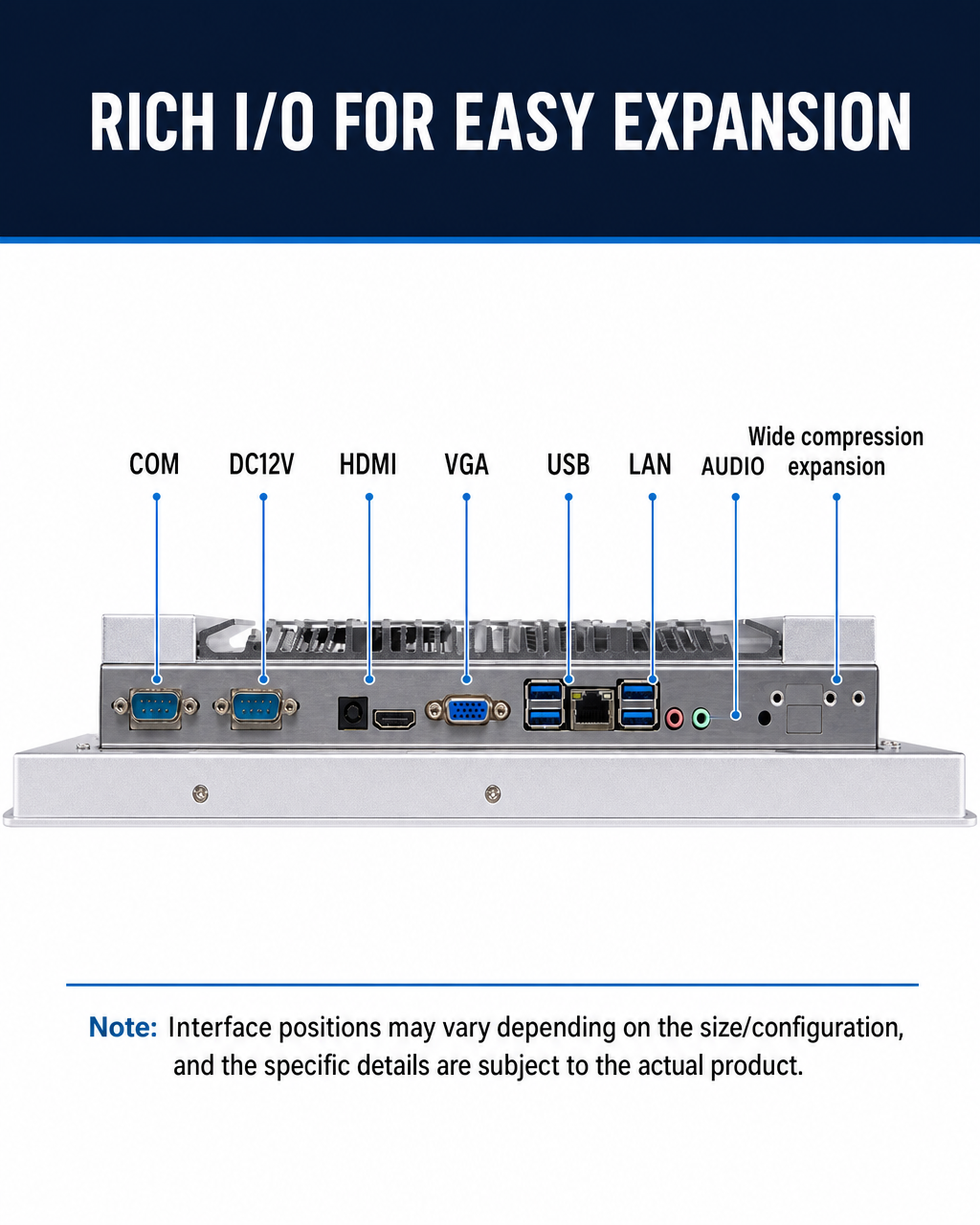

The supplied MeetNENG I/O graphic shows interfaces including:
● COM
● DC12V
● HDMI
● VGA
● USB
● LAN
● AUDIO
● Wide-compression expansion
The source also notes that interface positions may vary depending on size and configuration, and that specific details should be confirmed against the actual product.
This is important because a terminal’s physical ports do not automatically prove compatibility with a specific MES, ERP, PLC, fieldbus, barcode reader, or industrial protocol. The software and controls teams should define the required connection method before the hardware is finalized.
A reliable deployment begins with an interface map rather than a product name. Define what data must move between the operator, machine, MES, ERP, and supporting systems.
List the actions performed at the terminal:
● Log in or identify the operator
● Open a work order
● Read digital instructions
● Confirm material or tooling
● Start, pause, or complete a step
● Enter measurements or inspection results
● Report a quality issue
● Record downtime or an exception
● View production status
● Request assistance or maintenance
This step determines the required screen size, touch layout, peripherals, and application behavior.
Clarify whether the panel PC will run:
● A browser-based MES interface
● A local MES client
● An HMI application
● A SCADA visualization client
● An ERP or manufacturing portal
● A device-management application
● A remote-desktop or thin-client environment
The required operating system, memory, storage, graphics output, and support model depend on this decision.
Document the intended path between the terminal, machine controls, MES, ERP, and other systems. Specify whether the terminal communicates through Ethernet, serial connection, USB peripherals, wireless networking, or a separate gateway.
Do not assume that a panel PC alone will translate machine data or connect two enterprise systems. Protocol conversion, middleware, database access, cybersecurity, user authentication, and network segmentation may be handled by other components in the architecture.
Confirm:
● External dimensions
● Panel cutout or mounting pattern
● Cable clearance
● Viewing angle
● Operator reach
● Rear service access
● Power input
● Grounding and enclosure design
● Heat dissipation space
● Cleaning access
A correct mechanical fit is as important as CPU or display selection.
Before ordering samples or production units, request a model-specific configuration sheet and clarify:
1. Which CPU, RAM, storage, and operating system combinations are available?
2. What are the exact screen dimensions, resolution, aspect ratio, and cutout size?
3. Is the touch panel capacitive, resistive, or available in both options?
4. How does touch operation perform with the intended gloves?
5. What is the exact scope of the front-panel IP65 rating?
6. What cleaning and maintenance procedures are recommended?
7. What operating and storage temperature ranges apply to the selected model?
8. What I/O ports are included, and how do their positions vary by configuration?
9. Are HDMI and VGA dual-display functions available for the selected CPU and OS?
10. What wireless or expansion options are available?
11. What mechanical drawings and sample units can be provided for integration testing?
12. Which quality documents, test reports, and country-specific compliance documents are available?
13. What are the warranty, lead time, minimum order quantity, and support terms?
For an MES/ERP project, also provide the supplier with the intended software environment, interface list, mounting drawing, operating conditions, and target production workflow. This allows the hardware configuration to be reviewed against the actual use case.
An industrial panel PC is an integrated computer and display platform designed for industrial operator interfaces, machine-side workstations, HMI applications, data collection, and related factory-floor tasks. It typically combines a screen, computing hardware, touch input, enclosure, and selected interfaces.
A panel PC can host or display the approved software used in an MES/ERP-connected workflow, but the hardware alone does not create an integration. The final connection depends on the MES, ERP, machine controls, middleware, network, protocols, cybersecurity design, and system integrator.
It can be used as the operator interface for a digital production workflow, such as digital work instructions, production confirmation, inspection entry, or status reporting. Whether it replaces paper depends on the plant’s software, process design, validation, and user-acceptance requirements.
An industrial panel PC is designed around industrial installation requirements such as machine mounting, touchscreen operation, enclosure integration, selected I/O, serviceability, and environmental considerations. A commercial PC may still be appropriate for an office or protected area, but it should be evaluated carefully before use on the production floor.
The supplied product materials show HDMI and VGA dual-display output, including synchronous or asynchronous dual-display wording. Confirm the exact behavior, resolution support, operating-system compatibility, and availability for the selected model.
The supplied I/O graphic shows COM, DC12V, HDMI, VGA, USB, LAN, AUDIO, and wide-compression expansion. Interface positions may vary by screen size and configuration, so the actual model specification should be confirmed before ordering.
The supplied product material identifies IP65 protection for the front panel. Buyers should confirm the exact model, installation conditions, connector protection, gasket requirements, cleaning method, and whether the completed machine needs additional protection.
The supplied product materials present configurable options such as processor, memory, storage, screen size, resolution, brightness, touch type, interfaces, and installation details. Share the application requirements and mechanical drawings with MeetNENG to confirm the feasible configuration.
MES and ERP projects deliver more value when operators can access the right information where production happens. An industrial panel PC can provide the touchscreen computing platform for machine-side HMI applications, production data collection, digital work instructions, dashboards, and other shop-floor workflows.
The important decision is not simply choosing a computer with a touch display. The final terminal should match the software workload, screen and touch requirements, thermal design, front-panel protection, physical I/O, network architecture, mounting method, and long-term service plan.
MeetNENG industrial touch all-in-one computers provide a configurable hardware starting point for manufacturers, machine builders, and system integrators evaluating MES/ERP-connected production terminals. Contact MeetNENG with your screen size, mounting method, CPU, RAM, storage, operating system, I/O list, software environment, and factory conditions for a project-specific configuration review.
