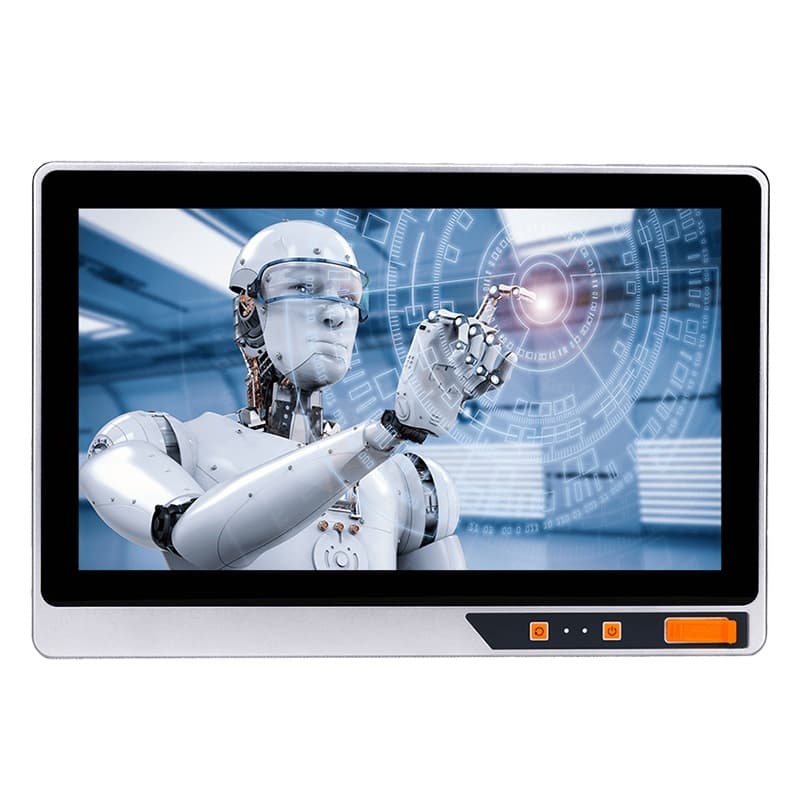

Selecting an industrial panel PC is rarely just about processing power; the physical interface dictates operator efficiency, error rates, and overall system usability. Specifying the wrong dimension leads to costly operational friction. If a screen is too small, operators suffer from input errors and fatigue. If it is too large, the unit may fail spatial constraints, thermal limits, or budget parameters. Moving beyond basic diagonal measurements requires a systematic evaluation of operator distance, software UI density, aspect ratios, and environmental mounting constraints to ensure long-term deployment success. Choosing the optimal industrial panel PC screen size prevents these bottlenecks and aligns hardware capabilities with human interaction requirements on the factory floor.
Application Dictates Dimension: Machine-level controls require compact footprints, while complex SCADA or ERP dashboards necessitate larger, high-resolution displays.
Aspect Ratio Matters: The shift from legacy 4:3 software to modern 16:9 widescreen formats is a critical dependency in the sizing decision.
Ergonomics and Accuracy: Operator distance, glove usage, and viewing angles directly inform the minimum viable industrial HMI screen size.
Environmental Trade-offs: Larger screens increase power consumption, heat generation, and mounting stress, requiring strict environmental evaluation.
Step-by-Step Procurement: Adopting a structured framework ensures that physical dimensions align perfectly with software specifications and mechanical environments before purchase.
Screen dimension directly correlates to operational throughput and error reduction on the factory floor. Operators rely on clear visual feedback to monitor machine status, acknowledge alarms, and input production data. When a display fails to provide adequate real estate for these tasks, interaction times increase. Success in hardware selection means operators can navigate menus intuitively without squinting or executing accidental commands. Proper sizing eliminates the friction between human intent and machine response. In high-speed manufacturing environments, a delay of even a few seconds per interaction compounds over a shift, leading to measurable productivity losses. You need a display that presents all necessary control elements clearly without requiring excessive scrolling or menu diving.
Calculating the optimal viewing distance dictates the baseline requirements for your hardware. An operator standing at arm's length for active touch control needs a different display profile than a supervisor monitoring a line from five feet away. Active touch applications demand screens that keep critical controls within immediate reach. Passive monitoring stations benefit from larger panels that broadcast status updates across wider areas. For instance, a CNC machine operator needs a screen positioned exactly at eye level and within a 20-inch reach, whereas an overhead Andon board requires massive dimensions for visibility across a 50-foot radius.
Off-axis viewing requirements also play a major role in dynamic plant environments. Operators rarely stand perfectly centered in front of a machine. They monitor systems from various angles while performing manual tasks. Displays must maintain color accuracy, contrast, and brightness when viewed from the side, above, or below. Larger screens often provide better off-axis readability, but only if they utilize high-quality IPS or VA panels. Poor viewing angles on a large screen can result in color inversion, making critical red warning indicators look brown or gray from a distance.
The relationship between screen real estate and the prevention of accidental inputs is absolute. Dense user interfaces packed onto small displays lead directly to fat-finger errors. Every mistaken input forces an operator to correct the action, wasting time and potentially disrupting production sequences. Software designers must scale buttons and sliders appropriately, but hardware limitations often force compromises. If your SCADA software features complex piping diagrams and dozens of toggle switches, forcing that interface onto a 7-inch screen guarantees operational failure.
Accommodating gloved operators introduces strict physical requirements. Minimum touch target sizes typically need to be 20mm by 20mm for heavy work gloves. This physical constraint dictates the overall panel dimensions. If a control dashboard requires twenty distinct buttons on a single screen, a compact display simply cannot accommodate the necessary touch target sizes for gloved hands. Expanding the industrial HMI screen size resolves this spatial conflict, allowing for adequate spacing between interactive elements.
Balancing the physical operator workspace footprint with the screen area needed for safe human-machine interaction requires precise measurement. Factory floors and control cabinets offer limited real estate. A massive display might provide excellent visibility but block physical access to emergency stop buttons or mechanical overrides. Engineers must evaluate the total volumetric space available, ensuring the chosen hardware integrates seamlessly without creating physical hazards or obstructing workflow. You must account for the swing radius of cabinet doors, the routing of thick industrial cables, and the proximity to moving machine parts.
Following a structured framework prevents costly specification errors and ensures the hardware matches the operational reality. Skipping steps in this process often leads to retrofitting delays and compromised system performance.
Step 1: Define the Application Environment & Mounting Space. Measure the maximum width, height, and depth clearances of the installation site. Account for cable routing and airflow requirements around the chassis. Do not forget to measure the internal cabinet depth if panel mounting.
Step 2: Map Software Interface Requirements. Analyze the native application resolution, UI element layout, and text scaling needs. Legacy software may distort on modern aspect ratios. Test your software on standard monitors of varying sizes before committing to an industrial form factor.
Step 3: Determine Operator Interaction Style. Assess whether the system relies on passive viewing, heavy touch inputs, or gloved operations. This dictates touch target dimensions and the required touch sensor technology.
Step 4: Select the Ideal Aspect Ratio. Choose between legacy square and modern widescreen formats based on the primary application layout. Match the hardware to the software, not the other way around.
Step 5: Match Screen Diagonal to Operator Distance. Align the screen size with the physical positioning of the worker. Differentiate between immediate touch distance and distant overview monitoring.
Step 6: Account for Environmental and Thermal Tolerances. Evaluate heat load, vibration profiles, and IP washdown requirements for the chosen size footprint. Larger glass surfaces react differently to environmental stress.
Step 7: Standardize and Future-Proof. Balance the selection against lifecycle longevity, spare parts availability, and future software upgrades. Standardizing on specific dimensions simplifies maintenance and reduces inventory overhead.

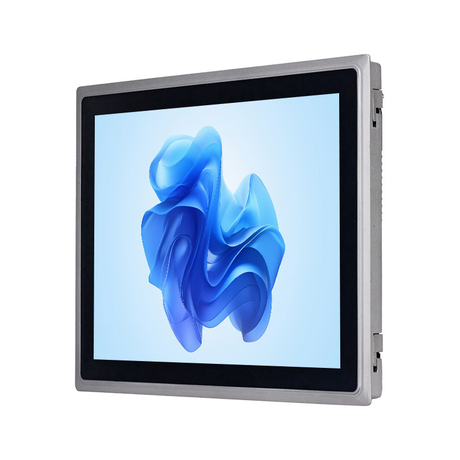

The 4:3 aspect ratio remains highly relevant in specific industrial contexts. These displays are ideal for retrofitting older machinery, supporting legacy SCADA software, and replacing older CRT monitors without rewriting underlying code. Upgrading hardware while maintaining the original software layout saves significant engineering hours. Common sizes in this category include 12-inch, 15-inch, and 17-inch models. They fit perfectly into square cutouts on existing control panels, making drop-in replacements straightforward. When dealing with legacy PLCs that output fixed resolutions like 800x600 or 1024x768, a 4:3 display prevents image stretching and maintains visual fidelity.
Modern industrial software development heavily favors widescreen formats. A widescreen industrial PC excels at displaying multi-pane dashboards, modern web-based HMIs, and side-by-side application viewing. Operators can monitor a live camera feed next to a telemetry readout without toggling windows. These formats provide distinct advantages in displaying wider schematics and reducing vertical scrolling. Common sizes include 10.1-inch, 15.6-inch, 18.5-inch, and 21.5-inch models, aligning with contemporary consumer display standards and simplifying software porting.
Aspect Ratio | Common Resolutions | Primary Use Cases | Pros | Cons |
|---|---|---|---|---|
4:3 (Standard) | 800x600, 1024x768 | Legacy SCADA, CRT replacement, older machinery | Drop-in replacement for older panels, no software rewrite needed | Limited horizontal space, feels outdated for modern web apps |
16:9 (Widescreen) | 1366x768, 1920x1080 | Modern HMIs, multi-pane dashboards, video monitoring | Excellent for side-by-side data, matches modern software design | Requires wider mounting cutouts, legacy software will stretch |
16:10 (Widescreen) | 1280x800, 1920x1200 | Detailed schematics, ERP interfaces | Provides slightly more vertical space than 16:9 | Less common than 16:9, fewer panel options available |
Compact displays serve specific, focused roles on the production floor. The primary use case involves direct machine-level control, simple start/stop interfaces, embedded systems, and basic telemetry readouts. Key sizes include 7.0-inch, 10.1-inch, and the standard 10.4 inch panel PC configurations. When evaluating these units, engineers prioritize their ability to fit into tight enclosures and operate with low power draw. They are highly cost-effective for mass deployment across hundreds of identical machines. However, they are unsuitable for complex graphics, heavy touch-screen navigation, or multi-layered menus due to limited pixel real estate. You will often find these mounted directly onto robotic arms or small packaging machines where space is at an absolute premium.
Mid-range displays represent the industry sweet spot for general automation, assembly line monitoring, and standard HMI applications. Key sizes include the 12.1-inch, the legacy 15-inch standard, and modern 15.6 inch panel PC models. This category balances adequate UI real estate with manageable physical footprints. The 15.6-inch size specifically bridges the gap between modern widescreen software requirements and compact mounting limitations. It provides enough width for detailed schematics while remaining light enough for standard VESA arm mounting without excessive reinforcement. This size category is the default choice for most new machine builds, offering flexibility for both simple controls and more complex data visualization.
Large format displays manage high-level operational oversight. Their primary use cases include plant floor dashboards, ERP/MES system interfaces, detailed CAD drawings, and complex process schematics. Key sizes focus on 18.5-inch and 21.5-inch widescreen systems. These units are designed for high-information density, control room applications, and multi-operator visibility. They allow entire teams to view production metrics simultaneously. However, deploying them requires robust mounting hardware, higher budgets, and careful thermal management due to increased backlight heat generation. You must ensure the mounting structure can handle the cantilevered weight if using a swing arm.
Diagonal measurement alone provides an incomplete picture of display quality. A larger screen with low resolution degrades clarity and causes worker eye strain. Stretching a 1366x768 resolution across a 21.5-inch display results in pixelated text and jagged graphics. Matching the hardware resolution to the software's native design is critical to avoid scaling and blurring artifacts. A 1920x1080 (Full HD) resolution on a 15.6-inch or larger display ensures crisp text rendering, reducing operator fatigue during long shifts. High pixel density becomes especially important when operators need to read small text in alarm logs or decipher intricate wiring diagrams on the screen.
Screen size directly impacts the cost, sensitivity, and durability of the touch sensor. Projected Capacitive (PCAP) multi-touch and 5-wire resistive touch behave differently as dimensions increase. Resistive screens rely on physical pressure, which can feel inconsistent on very large surfaces. PCAP technology scales exceptionally well, offering smartphone-like responsiveness. Larger PCAP screens benefit from stable calibration, flush bezel depths, and edge-to-edge glass designs that prevent dust accumulation and simplify cleaning procedures. When specifying large displays for food processing or pharmaceutical environments, edge-to-edge PCAP glass is mandatory for maintaining sanitary conditions.
Two systems with the exact same diagonal screen size can have radically different total dimensions. Physical bezel width dictates the final enclosure footprint. A ruggedized unit with a thick aluminum bezel requires a much larger panel cutout than a modern, slim-bezel design. Engineers must calculate the total cabinet depth, which often increases with larger screen sizes to accommodate internal cooling and power components. Consulting a detailed panel PC size guide ensures the mechanical cutout matches the specific model's chassis, not just its viewable area. Always verify the mechanical drawings before cutting steel panels.
Larger LCD backlights require more power and generate significantly more heat. This thermal load potentially compromises fanless PC architectures in high-ambient environments. If a 21.5-inch display operates in a facility reaching 45°C, internal components risk thermal throttling. Mitigation requires evaluating wide-temperature rated components, selecting high-efficiency LED backlights, and ensuring adequate enclosure airflow. Engineers must verify that the chosen chassis provides sufficient heatsink surface area to dissipate the combined heat of the processor and the large display panel. In extreme cases, you may need to implement active cabinet cooling to support large-format displays.
Increasing the screen size alters the mechanical dynamics of the hardware. Larger screens have a higher center of gravity, larger surface areas, and more glass weight. This makes them susceptible to heavy industrial vibration and mechanical shock. A 21.5-inch panel mounted on a standard swing arm will experience severe torque during machine operation. Mitigation involves specifying high-shock ratings, choosing optical bonding to reinforce the glass, and utilizing reinforced VESA arms or rigid, multi-point panel cutouts to eliminate flexing. Optical bonding fills the air gap between the touch sensor and the LCD, dramatically increasing impact resistance.
Larger screens present a wider sealing perimeter. This extended perimeter makes the unit more prone to bezel flexing and water ingress under high-pressure washdowns typical in IP66 or IP69K environments. Thermal expansion and contraction affect large glass panels more severely than compact ones, potentially degrading the waterproof gasket over time. Mitigation requires specifying rugged cast aluminum enclosures with high-quality, continuous poured gaskets and ensuring the mounting surface itself is perfectly flat to prevent twisting the chassis during installation. Uneven mounting surfaces will warp large chassis, breaking the IP seal instantly.
Audit your existing software interface to determine the required resolution and aspect ratio before selecting hardware dimensions.
Measure the physical mounting space, accounting for chassis depth, cable clearance, and required airflow.
Calculate the operator viewing distance and interaction style to establish the minimum acceptable touch target size.
Evaluate the environmental conditions, specifically vibration and ambient temperature, to ensure the selected screen size will not compromise system reliability.
Choosing the right screen size is more than a dimensional choice—it dictates your operator’s efficiency and system durability.
At MeetNeng, we offer a comprehensive range of highly ruggedized, fanless industrial panel PCs—from ultra-compact [10.4 inch panel PCs] to high-definition [15.6 inch panel PCs]and large-format 21.5" displays. Our systems are engineered with wide temperature tolerances, customizable IP66/IP67 sealing, and optically bonded glass to withstand the harshest environments
A: Yes, but the software will either stretch to fill the screen, causing distortion, or display black bars on the sides. Upgrading the software UI to natively support 16:9 is recommended for optimal usability.
A: A 15-inch or 15.6-inch display is typically the minimum recommended size. This provides enough physical space to design UI buttons that are at least 20mm x 20mm, preventing accidental inputs.
A: Not necessarily. Many large-format industrial panel PCs utilize efficient LED backlights and massive cast-aluminum heatsinks to remain completely fanless, even in high-temperature environments.
A: Larger screens have longer sealing perimeters, making them slightly more susceptible to gasket failure under high-pressure spray. High-quality manufacturing and rigid mounting are required to maintain IP66/IP69K integrity.
A: Panel mounting generally provides superior stability and vibration resistance for large displays because it supports the perimeter of the chassis. VESA mounting requires heavy-duty, reinforced arms to handle the weight.
A: No, screen size does not dictate touch sensitivity. Sensitivity depends entirely on the touch controller and the technology used, such as PCAP or resistive sensors, regardless of the physical dimensions.
