In modern industrial automation systems, operators often need to monitor multiple parameters, alarms, trends, and machine statuses at the same time. Traditional HMI displays with limited screen space may require frequent scrolling, making operation less efficient.

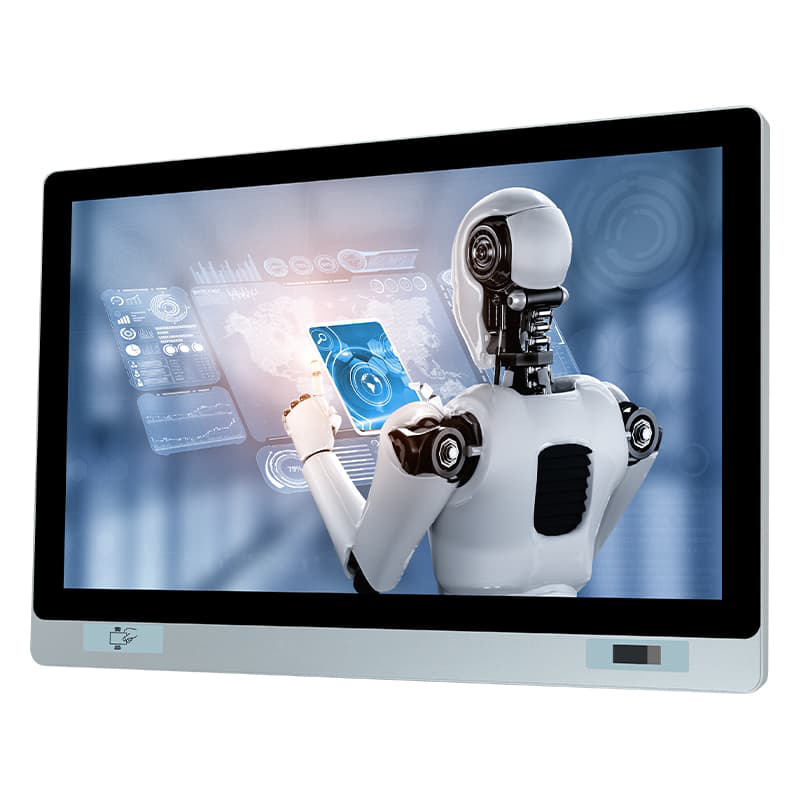

A widescreen HMI panel PC provides a larger display area, allowing more process information to be displayed simultaneously and improving operator visibility and decision-making.
Hidden operational costs accumulate rapidly when plant operators constantly scroll, switch screens, and battle tab fatigue. Complex industrial processes demand immediate reaction times and absolute clarity. Buried critical alarms and excessive navigation clicks delay these essential reactions. Traditional 4:3 aspect ratio screens force compromised visualization layouts. They create severe cognitive overload and bury critical Level 3 process data beneath nested menus. This narrow perspective significantly increases the risk of operator error during high-stress situations. Migrating to a modern hardware architecture directly solves these visualization bottlenecks. A wider field of view enables high-performance design principles on the plant floor. It eliminates the need for scrolling while drastically improving situational awareness. Upgrading your hardware foundation allows operators to monitor entire process lines without losing sight of critical control parameters.
Widescreen aspect ratios (16:9 or 16:10) provide the necessary horizontal real estate to anchor persistent navigation and alarm banners without obscuring active process graphics.
Eliminating scrolling and reducing screen depth directly correlates to faster operator response times during abnormal process conditions.
Evaluating widescreen hardware requires balancing display size with environmental ruggedness, specifically IP ratings, thermal management, and touch sensor reliability.
Successful implementation requires strategic software layout redesign utilizing reusable object libraries; simply stretching legacy 4:3 applications onto widescreen displays creates artifacts and degrades usability.
Hidden screen elements directly degrade operator situational awareness. When critical process data requires scrolling, operators lose the broader system context. Excessive navigation clicks break focus during high-stress incident response scenarios. Operators must mentally remember off-screen variables while diagnosing active alarms. This forced mental mapping drastically increases cognitive load and slows decision-making. Human short-term memory struggles to retain complex tag values across multiple screen transitions. Industry-standard High-Performance HMI guidelines emphasize flat navigation hierarchies to combat this issue. They advocate for strategic grayscale backgrounds paired with highly visible, color-coded alarms. This stark contrast maximizes clarity and draws immediate attention to abnormal conditions.
Forcing an operator to scroll vertically to find a tripping pump defeats the purpose of real-time monitoring. Every hidden pixel represents a potential delay in incident mitigation. Reaction times increase exponentially when operators face too many navigation choices. This principle directly applies to cluttered, scrolling interfaces. A flat hierarchy ensures operators reach any critical control screen within two clicks. Scrolling completely breaks this rule by introducing a continuous, unquantifiable navigation barrier. Operators waste valuable seconds dragging scrollbars instead of analyzing process trends. High-stress environments demand immediate visual confirmation of system health. When alarms trigger, the interface must present the problem and the solution simultaneously. Scrolling forces the operator to hunt for the context surrounding the alarm.
Legacy square panel PCs struggle to render modern, data-dense SCADA environments effectively. Their narrow horizontal footprint forces control engineers to cram information into limited pixels. This spatial constraint creates the infamous tab fatigue problem on the plant floor. Forcing complex Piping and Instrumentation Diagram (P&ID) graphics into narrow aspect ratios requires severe compromises. Developers must rely heavily on overlapping windows, nested menus, and intrusive pop-ups. Operators waste valuable seconds hunting through these layers to find specific valve statuses. The 4:3 ratio simply lacks the width to display process flow naturally.
Most industrial processes flow horizontally from raw material input to finished product output. Square screens force developers to break this natural left-to-right progression. They must stack process graphics vertically, which necessitates scrolling. This vertical stacking disconnects related equipment visually. An operator might see a tank level dropping but must scroll down to check the corresponding discharge pump. This visual disconnect leads to misinterpretations and delayed actions. Furthermore, legacy screens often lack the resolution required for modern vector graphics. Attempting to fit a comprehensive plant overview onto a low-resolution square display results in an unreadable mess of overlapping text and icons.
The 16:9 aspect ratio revolutionizes process visualization by expanding the horizontal axis. This layout easily accommodates Level 1 plant-wide overviews and Level 2 unit-wide graphics simultaneously. A Widescreen Industrial Panel PC provides a distinct structural advantage for software developers. It dedicates the extra horizontal space to persistent, non-overlapping alarm banners. Active process graphics remain completely unobstructed in the center of the display. This wider field of view aligns perfectly with natural human peripheral vision. It reduces eye strain and allows for logical left-to-right process workflow mapping.
Widescreen layouts safely separate passive monitoring zones from interactive control zones. Operators can monitor historical trends on one side while executing manual overrides on the other. This spatial separation prevents accidental inputs during routine monitoring tasks. The expanded width allows developers to anchor a permanent navigation pane on the left edge. Operators always know exactly where they are within the application hierarchy. They never have to guess which menu contains the required control faceplate. The right edge can permanently display a prioritized alarm summary list. This guarantees that critical faults never disappear behind a pop-up window or require scrolling to view.
Facilities frequently attempt to solve the 4:3 limitation by installing dual monitors. However, replacing dual legacy screens with a single large touch panel computer brings significant hardware reliability benefits. A single unit means fewer failure points on the machine panel. It drastically reduces cabling complexity inside the control cabinet. Single units also simplify power requirements and reduce overall heat generation. Managing a single IP address and one software license further streamlines maintenance routines.
The expanded screen real estate allows engineers to digitize external physical pushbuttons confidently. Dedicated, always-visible on-screen touch controls streamline the physical operator console. This minimizes the use of external hardware buttons, reducing wiring and potential mechanical failures. Centralizing control within the digital environment allows for dynamic button states. An on-screen button can change color or disable itself based on current process interlocks. Physical buttons lack this dynamic feedback, often leading operators to press inactive controls. Consolidation cleans up the physical workspace while enhancing the logical control capabilities.
Selecting the right display specifications is critical for rendering complex vector graphics accurately. FHD (1080p) resolutions generally suffice for standard SCADA layouts and basic machine control. However, 4K resolution prevents pixelation in highly dense, detailed P&ID schematics. High resolution ensures that small text and intricate equipment icons remain perfectly legible. Touch interface selection depends entirely on specific plant floor realities and operator requirements. Projective Capacitive (PCAP) touch screens offer precise multi-touch interactions and gesture support. They feature durable glass fronts that resist scratching and chemical degradation.
Resistive touch screens remain necessary for operators wearing heavy work gloves. They are also required in extreme washdown environments where water droplets might confuse a PCAP sensor. High-ambient-light industrial environments demand specific optical enhancements. Optical bonding removes the air gap between the LCD panel and the touch sensor. This drastically reduces internal reflections and improves contrast ratios. Anti-glare coatings diffuse harsh overhead factory lighting, maintaining optical clarity from all viewing angles.
Touch Technology | Input Method | Environmental Suitability | Durability Profile |
|---|---|---|---|
PCAP (Projected Capacitive) | Bare fingers, thin latex gloves, specialized styluses. | Clean rooms, dry manufacturing, indoor control rooms. | High scratch resistance (glass front), excellent optical clarity. |
Resistive (5-Wire) | Heavy leather gloves, any physical object, bare fingers. | Heavy washdown areas, dirty environments, extreme temperatures. | Susceptible to scratching (film front), slightly lower optical clarity. |
Infrared (IR) Touch | Any opaque object, heavy gloves. | Outdoor kiosks, heavy manufacturing with thick gloves. | High durability, but bezel can collect dust and debris. |
Modern visualization software demands robust compute capabilities at the edge. Graphics-heavy platforms like Ignition or FactoryTalk Optix require specific CPU and RAM configurations. Matching these specifications prevents screen freezes and eliminates slow rendering speeds. An industrial widescreen HMI computer must process thousands of PLC tags per second while updating complex animations. Insufficient RAM leads to page file swapping, which causes severe interface lag. Processors must handle concurrent tasks: communicating with controllers, logging historical data, and rendering the user interface.
Versatile I/O architecture is essential for integrating these devices into existing plant networks. Dual LAN ports allow physical separation between the machine-level network and the enterprise IT network. This separation enhances cybersecurity and prevents network traffic congestion. COM interfaces (RS-232/422/485) remain vital for bridging legacy PLC networks or communicating with specialized serial devices like barcode scanners. USB 3.0 connections facilitate rapid data backups and easy peripheral integration. A robust connectivity architecture bridges the gap between legacy machinery and modern Industrial IoT deployments.
Industrial environments destroy commercial-grade electronics rapidly. Ingress protection is non-negotiable for manufacturing floors and processing facilities. IP65 or IP66 rated front bezels protect internal components against airborne dust and low-pressure water jets. Food and beverage facilities require stringent IP69K ratings. These devices must withstand daily high-pressure, high-temperature chemical washdowns without failing. The enclosure must feature smooth, crevice-free designs to prevent bacterial growth.
Thermal and mechanical durability ensures continuous 24/7 operation under harsh conditions. Fanless cooling designs utilize heavy aluminum heatsinks to dissipate thermal loads. Eliminating internal fans prevents conductive dust accumulation inside the chassis, a primary cause of short circuits. Wide operating temperature ranges guarantee stability in unconditioned environments, from freezing storage facilities to hot steel mills. High shock and vibration resistance ratings are necessary when mounting the unit directly onto heavy stamping presses or vibrating conveyors. Solid-state drives and secure internal cable routing prevent mechanical failures during continuous operation.

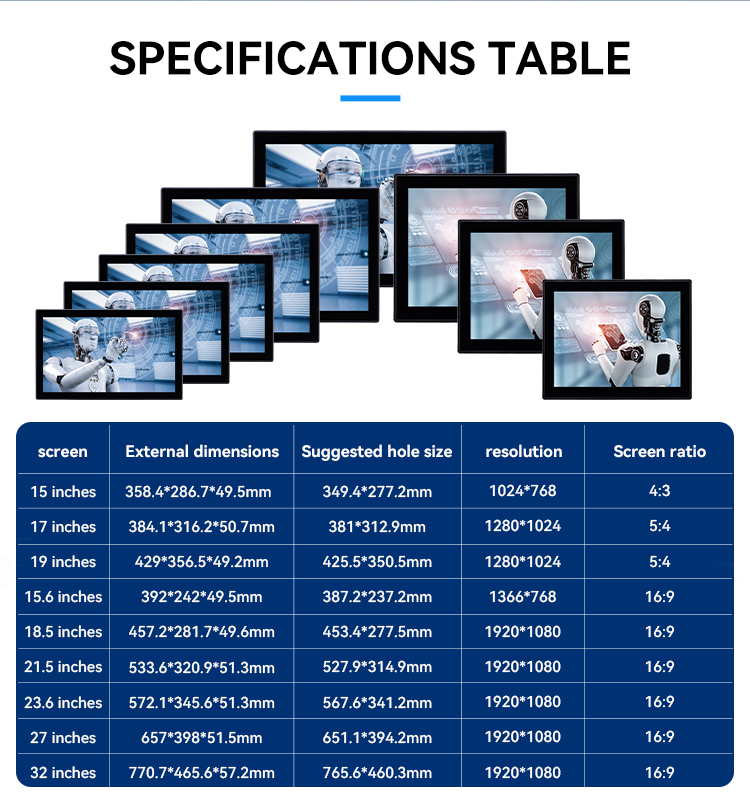

Industrial applications require different display sizes depending on the complexity of the monitoring interface and installation space. Our widescreen industrial panel PCs are available from 15 inches to 32 inches, providing flexible solutions for various automation and control applications.
Available display sizes include:
- 15 inch industrial panel PC
- 15.6 inch industrial panel PC
- 17 inch industrial panel PC
- 18.5 inch industrial panel PC
- 19 inch industrial panel PC
- 21.5 inch industrial panel PC
- 23.6 inch industrial panel PC
- 27 inch industrial panel PC
- 32 inch industrial panel PC
Screen Size | Typical Applications |
15 / 15.6 inch | Machine control, equipment monitoring, compact automation systems |
17 / 18.5 inch | Production lines, industrial control cabinets, HMI stations |
19 / 21.5 inch | Factory automation, process monitoring, data visualization |
23.6 / 27 inch | Complex process displays, smart manufacturing systems |
32 inch | Large monitoring screens, centralized control rooms |
From compact machine interfaces to large-scale production monitoring systems, different screen sizes help operators display more process data, alarms, trends, and control information with less scrolling.
Key Features of Widescreen Industrial HMI
✔ Full HD touchscreen display
✔ High brightness screen
✔ Industrial-grade components
✔ Fanless cooling design
✔ Wide viewing angle
✔ Multiple I/O interfaces
✔Windows
✔Linux
In addition to standard sizes, we also support customized industrial HMI panel PCs with different screen dimensions, processors, touch technologies, and I/O configurations to meet specific industrial requirements.
Upgrading visualization hardware requires initial capital expenditure. However, this investment yields significant long-term efficiency gains across the production floor. A wider screen directly reduces operator visualization errors and safety incidents. Clearer interfaces lead to significantly faster training times for new operators. When navigation is intuitive and scrolling is eliminated, operators reach competency much faster. Industrial-grade components offer extensive lifecycle longevity compared to commercial alternatives. This durability minimizes replacement frequency and eliminates unplanned downtime caused by hardware failure.
Commercial tablets or consumer-grade monitors fail quickly when exposed to industrial vibrations and temperature fluctuations. Replacing a failed commercial screen halts production, costing far more than the initial hardware savings. Industrial units utilize components selected specifically for long-term availability. This ensures that identical replacement parts remain available for five to ten years. Facilities can standardize on a single hardware platform without worrying about forced obsolescence. The initial investment pays dividends through uninterrupted production and reduced maintenance overhead.
Physical realities complicate hardware upgrades in older facilities. Expanding existing enclosure cutouts to accommodate wider chassis dimensions requires metalwork. Plant managers must schedule this modification during planned maintenance windows to avoid disrupting production. Cutting steel cabinet doors generates metal shavings, requiring strict isolation procedures to protect internal electronics. Engineers must compare mounting options carefully before purchasing hardware. VESA mount arms offer flexibility and improved operator ergonomics. They allow operators to adjust the screen height and angle to reduce glare and neck strain.
Traditional panel mounting provides a flush, secure fit directly into the cabinet door. This method saves external space but limits adjustability. It also requires the cabinet door to support the weight of the new, larger unit. If the existing door is flimsy, engineers must reinforce it or opt for a pedestal mount. The chosen mounting method directly impacts operator workflow and comfort. Ergonomic placement ensures operators can interact with the touch screen for entire shifts without experiencing physical fatigue.
When retrofitting a wider unit into an existing control cabinet, follow these specific steps to protect internal components:
Power down all internal cabinet components and verify zero energy state using a multimeter.
Cover all PLCs, contactors, and exposed wiring with heavy-duty, anti-static drop cloths to prevent metal shavings from causing short circuits.
Apply masking tape over the intended cut lines on the cabinet door to prevent the jigsaw or nibbler from scratching the surrounding paint.
Use a vacuum attachment directly adjacent to the cutting tool to capture metal dust immediately as it is generated.
File down all sharp metal edges after cutting and apply a rust-inhibiting primer to the exposed steel before mounting the new hardware.
Automatically scaling a legacy 4:3 application to a 16:9 resolution is a critical engineering mistake. This stretch trap creates severe display artifacts and highly distorted graphics. Circular pump icons become confusing ovals, and text becomes stretched and illegible. Stretching also introduces frustrating touch-calibration issues. The physical touch coordinates no longer align with the stretched graphical elements. Operators press a button on the screen, but the software registers the touch several pixels away. This leads to incorrect machine commands and intense operator frustration.
Poorly optimized high-resolution graphics cause common performance issues during migration. Simply importing massive, uncompressed image files into the software overloads the processor. Operators experience screen freezes, communication timeouts, and painfully slow rendering speeds. The software struggles to poll PLC tags fast enough while simultaneously rendering heavy graphics. Engineers must use lightweight, vector-based graphics designed specifically for the target resolution. Proper optimization ensures the interface remains highly responsive, even during alarm floods.
Re-mapping legacy screens requires a structured, methodical framework. Engineers should utilize modular templates and global object libraries within their development environment. Responsive design principles significantly speed up the software development time. Creating a single, reusable pump object ensures visual consistency across the entire application. If a color standard changes, developers update the global object once, and it propagates across all screens instantly. This modular approach eliminates unnecessary steps and reduces programming errors.
Facilities must outline a phased rollout strategy to mitigate implementation risks. Test the new hardware and software layout in a non-critical process area first. Conduct thorough Factory Acceptance Testing (FAT) before installing the unit on the floor. This pilot testing minimizes downtime and allows operators to provide feedback on the new layout. Site Acceptance Testing (SAT) confirms that the unit communicates correctly with live PLCs. A phased approach ensures that any unforeseen software bugs or hardware integration issues are resolved before full plant deployment.
Conduct a thorough audit of current operator screen-switching and scrolling frequency to identify severe visualization bottlenecks.
Measure existing enclosure cutouts and evaluate cabinet structural integrity to determine the feasibility of panel mounting versus VESA arm mounting.
Request an evaluation unit from a hardware vendor to conduct hands-on pilot testing in a non-critical production area.
Develop a modular global object library to streamline the software redesign process and ensure visual consistency.
Draft a phased migration schedule that aligns with planned facility maintenance windows to prevent unplanned production downtime.
MeetIPC provides industrial HMI panel PCs with various display sizes and customization options for automation applications.
✔ Wide screen touch display
✔ Industrial-grade design
✔ Fanless cooling option
✔ OEM/ODM support
✔ Long-term supply capability
A: The standard aspect ratios are typically 16:9 or 16:10. These formats provide the necessary horizontal width to display comprehensive process graphics alongside persistent navigation menus and alarm banners without overlapping windows.
A: Yes, but it is not recommended to simply stretch the software. Stretching distorts graphics and causes touch calibration errors. You should run it in its native resolution with black bars on the sides, or preferably, redesign the layout to utilize the extra horizontal space.
A: It eliminates the need for scrolling and navigating through nested menus. By keeping critical Level 3 process data and alarm banners constantly visible on the expanded horizontal axis, operators can diagnose and respond to abnormal conditions instantly.
A: PCAP supports precise multi-touch gestures and features a durable glass surface, ideal for clean environments. Resistive touch relies on physical pressure, making it necessary for operators wearing heavy work gloves or in wet, washdown environments.
A: Retrofitting usually requires modifying the existing cabinet door by cutting a wider opening to accommodate the new chassis dimensions. Alternatively, you can seal the old cutout and use a VESA arm mount to position the new display ergonomically outside the cabinet.
A: Most modern industrial panel PCs utilize powerful integrated graphics capable of rendering complex 2D SCADA screens and P&ID layouts smoothly. A dedicated GPU is generally only required for advanced 3D rendering or intensive machine vision applications.
A: Utilize modular templates and global object libraries within your HMI software. By creating reusable graphical components for valves, pumps, and motors, you can drastically reduce development time and ensure visual consistency across the new widescreen layout.
