In modern industrial automation systems, operators need real-time access to machine status, production information, and maintenance notifications. A reliable HMI display helps improve operation efficiency by presenting important data clearly and allowing operators to respond quickly to equipment conditions.

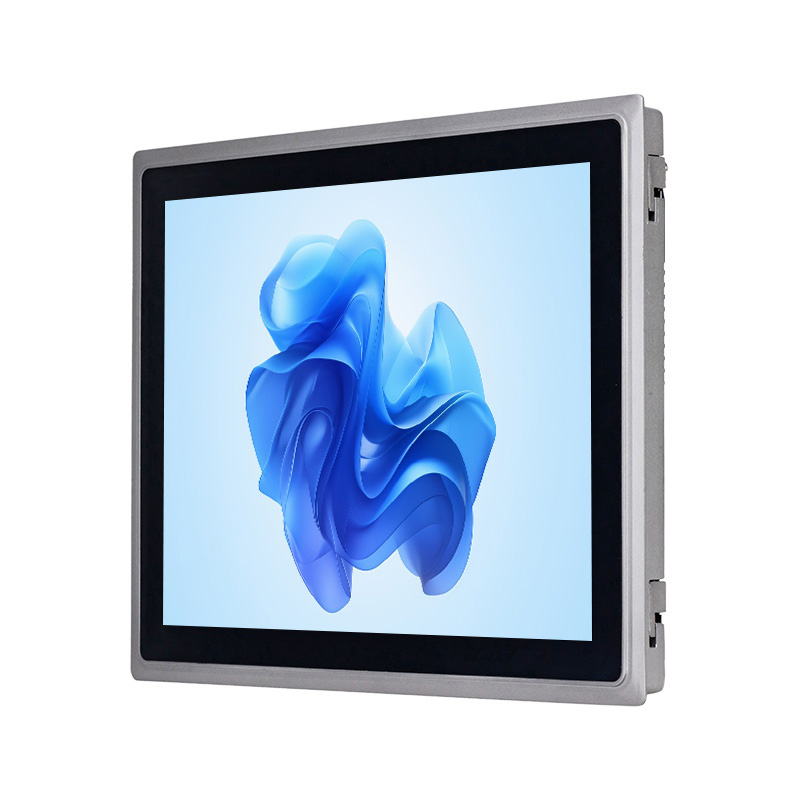

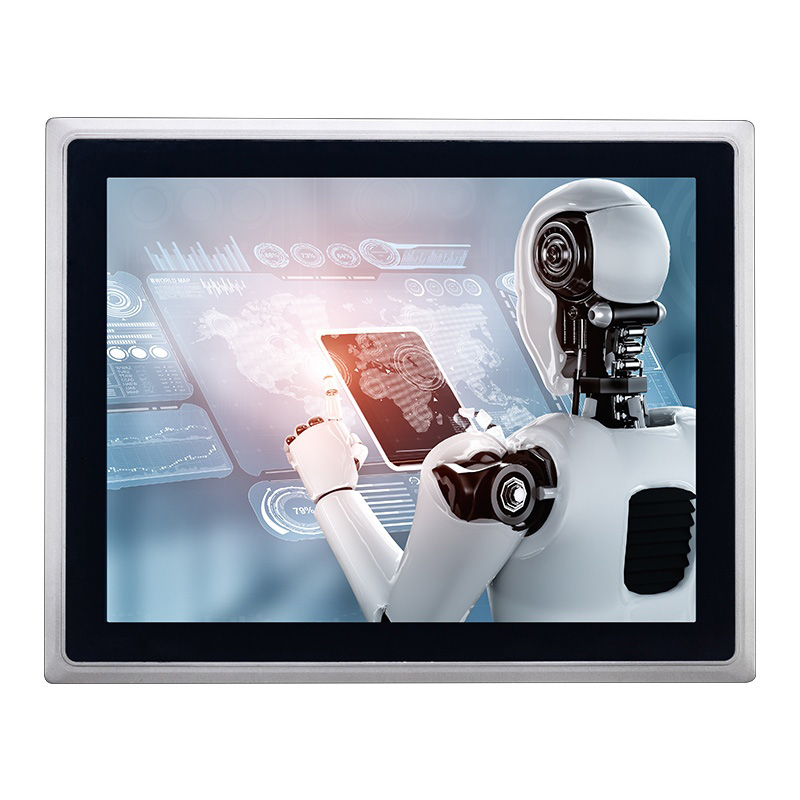

A 12.1-inch industrial HMI panel PC provides a compact yet powerful interface solution for machine monitoring, equipment control, and maintenance management applications.
Designing a Human-Machine Interface (HMI) involves balancing competing priorities on the factory floor. Operators need immediate situational awareness to keep production running smoothly. Maintenance teams require granular diagnostic data to troubleshoot faults and perform preventative upkeep. These two distinct functions constantly compete for limited screen space. This tension exposes a core problem when utilizing mid-sized displays. Poorly structured interfaces on a 12.1-inch screen inevitably lead to severe information overload. Operators miss active alarms when data lacks a clear visual hierarchy. Preventative maintenance schedules get delayed or ignored entirely. Operator fatigue increases as users struggle to parse dense screens filled with irrelevant data points. Successfully deploying a 12.1 Inch Industrial Panel PC requires a dual approach. You must select hardware capable of rendering complex graphics without latency. You must also apply a strict visual hierarchy to separate operational telemetry from maintenance workflows.
Form Factor Efficacy: A 12.1-inch display offers the optimal balance between physical footprint and visual clarity, making it highly effective as a compact warehouse touch terminal or machine-side interface.
Hierarchical UI Design: Effective data display relies on a "glanceable" main screen for KPIs, recipe management, and sequencer steps, reserving secondary screens for detailed I/O diagnostics and maintenance prompts.
Data-Driven Maintenance: Integrating User-Defined Types (UDTs) and global graphics allows for automated, context-aware preventative maintenance (PM) prompts directly on the HMI.
Hardware-Software Synergy: Evaluating an embedded automation panel computer requires matching its processing power, performance class, and communication protocols (e.g., OPC UA, Ethernet/IP) to the specific demands of the visualization software.
Machine-side visualization requires clear, measurable baselines for success before you even look at software design. The display must guarantee readability from a distance. Operators frequently monitor machine states while loading raw materials or performing physical tasks several feet away. Gloved operation is mandatory in almost all industrial environments, whether workers wear thin nitrile gloves in food processing or thick leather gloves in metal fabrication. Footprint constraints dictate the maximum physical size of the unit. Panel space on modern machinery is highly restricted, and oversized screens interfere with physical access doors. Operator ergonomics drive the final screen placement. Users must interact with the terminal without straining their necks or adopting awkward postures during a ten-hour shift.
Verify the maximum allowable cutout dimensions on the existing machine panel.
Determine the typical viewing distance for the primary operator station.
Identify the specific type of gloves worn by operators to dictate touch technology.
Assess the ambient lighting conditions to determine required screen brightness (nits).
Selecting the right screen size involves analyzing strict spatial trade-offs. A smaller 7-inch panel feels too cramped for complex preventative maintenance data. You cannot fit a detailed Piping and Instrumentation Diagram (P&ID) on a 7-inch screen without forcing the operator to scroll constantly. Conversely, larger 15-inch to 21-inch panels frequently prove to be overkill for single-machine control. They consume excessive power, generate more heat, and physically block access to internal cabinet components. The 12.1-inch size hits the sweet spot. It offers enough pixel real estate for detailed diagnostics while maintaining a compact physical footprint suitable for tight enclosures.
Screen Size Category | Physical Footprint | Data Density Capability | Ideal Industrial Application |
|---|---|---|---|
7-Inch to 10-Inch | Highly Compact | Low (Basic controls, simple text) | Simple standalone machines, basic push-button replacement, simple conveyors. |
12.1-Inch | Balanced / Moderate | High (Supports dual workflows) | Machine-side visualization, complex PM tracking, tight enclosures, CNC lathes. |
15-Inch to 21-Inch | Large / Restrictive | Very High (Full SCADA level) | Control room monitoring, full line oversight, large electrical cabinets. |
Mounting configurations heavily influence daily usability. VESA mounts, panel mounts, and swing arm brackets provide necessary installation options. You can position the screen ergonomically for the operator using a pendant arm. Proper mounting ensures the terminal will not obstruct physical machine access during tooling changeovers. Maintenance panels and electrical cabinets must remain clear and accessible. A versatile mounting strategy maximizes the utility of the display without compromising machine safety. When routing cables through a swing arm, ensure the bend radius of the Ethernet and power cables does not exceed manufacturer specifications to prevent internal wire breakage over time.
Harsh manufacturing environments demand exceptionally tough hardware. A 12.1 inch industrial panel PC requires specific physical traits to survive on the floor. Look for strict IP65 or IP69K ratings on the front bezel to protect against water jets and dust ingress. Fanless designs eliminate moving parts. This prevents airborne debris, metal shavings, or flour dust from entering the chassis and causing thermal failure. Wide operating temperature ranges ensure the hardware remains reliable whether deployed in a freezing cold storage facility or a high-heat foundry near a curing oven.
High-performance HMI design follows strict rules to maximize operator efficiency. The ISA-101 standard provides a proven foundation for these layouts. The primary screen must exclusively show the current machine state and active sequencer steps. Active alarms need immediate, unmissable visibility. Recipe or product selection controls belong on this main dashboard. High-level production KPIs keep operators informed about current throughput without requiring them to dig through menus. Remove 3D graphics, spinning fans, and bright background colors. These elements distract the operator and add zero operational value.
Visualize production time, cycle rates, and scrap counts cleanly. Trend lines provide historical context but must not clutter the primary viewport. Use sparklines—small, simple line graphs without axes—to show recent trends in temperature or pressure. Use muted, grayscale color palettes for normal operational states. Apply high-contrast indicators, like bright red or flashing yellow, only for abnormal states or active faults. This targeted use of color draws the operator's eye exactly where it is needed. It reduces reaction times during critical events and prevents alarm blindness.
Group related data points logically to reduce mental friction. Keep all temperature zones, pressure readings, or motor speeds visually grouped together in dedicated screen quadrants. Use simplified graphical representations of the machine rather than dense, overwhelming numerical tables. Operators process visual spatial data much faster than raw numbers. A simple vertical bar graph indicating a tank fill level is immediately understood. A raw percentage number requires cognitive processing to determine if the tank is nearly empty or dangerously full.
Establish a grayscale background for all primary operational screens.
Define a strict color dictionary (e.g., Red = Critical Fault, Yellow = Warning, Blue = Operator Action Required).
Replace raw numerical data with analog meter graphics or bar charts where applicable.
Group related machine zones into distinct visual blocks using subtle borders.
· Output quantity
· Production status
· Running time
· Machine operation status
· Temperature
· Pressure
· Speed
· Fault notifications
· Warning messages
· Alarm history
12.1-Inch HMI Compared with Other Sizes
Size | Application |
7-10 inch | Compact equipment |
12.1 inch | Machine control and equipment monitoring |
15-17 inch | Production lines and automation systems |
21.5 inch+ | Large monitoring systems |
You must differentiate critical machine faults from routine maintenance prompts. Critical faults require immediate operator intervention to prevent machine damage or safety hazards. Examples include an emergency stop activation, a motor overload, or a safety door opening during a cycle. Preventative maintenance prompts handle routine, predictable tasks. These include weekly lubrication schedules, monthly filter replacements, or bearing inspections. Keep these two workflows entirely separate within the software interface. Mixing them causes operators to ignore critical faults, assuming they are just another routine filter change notification.
Structure dedicated maintenance screens carefully. Keep them distinct from the main operational view. Link the PLC logic directly to the HMI to trigger PM alerts based on actual machine cycles. Run-hours provide significantly better maintenance metrics than arbitrary calendar dates. A machine running three shifts requires lubrication much sooner than a machine running one shift. This data-driven approach ensures timely maintenance based on actual wear and tear. It extends the lifespan of mechanical components and prevents unnecessary downtime caused by over-maintaining equipment.
Maintenance Trigger Type | Data Source | Example Application | HMI Display Method |
|---|---|---|---|
Calendar Based | Internal PLC Clock | Annual safety relay testing. | Static reminder on a secondary diagnostic screen. |
Run-Hour Based | Motor Contactor Timer | Spindle bearing lubrication. | Progress bar showing hours remaining until service. |
Cycle Count Based | Cylinder Stroke Counter | Pneumatic seal replacement. | Numeric countdown on the specific actuator faceplate. |
Condition Based | Vibration/Temp Sensor | Detecting imminent motor failure. | Active warning banner requiring immediate acknowledgment. |
Standardize maintenance tags using User-Defined Types (UDTs) within the PLC architecture. A motor UDT might include tags for Speed, Temperature, Fault Code, and Run Hours. Create global graphic objects on the embedded automation panel computer. These standardized objects automatically populate with specific PM data when you pass the UDT instance to them. Incorporate numeric displays and text inputs within these graphics. Operators and maintenance staff can acknowledge alerts, log interventions, or reset PM cycle counters directly from the terminal screen without needing a laptop connected to the PLC.
Differentiate thin-client architectures from thick-client edge controllers before purchasing hardware. Thin clients rely entirely on centralized servers to render graphics and process logic. If the network drops, the screen goes blank. Edge controllers handle these tasks locally. Ensure the hardware possesses standalone compute power. It must manage local data logging, alarm buffering, and recipe management independently. This ensures the machine remains operable and operators can still clear faults even if facility network connectivity drops unexpectedly.
Assess compute requirements thoroughly based on your chosen software platform. Displaying complex vector graphics demands significant graphical processing resources. Historical trend logging adds constant read and write loads to the storage drive. Running background scripts for data parsing requires specific CPU and RAM configurations. Do not under-spec the panel PC. Inadequate hardware leads directly to sluggish interface response times. When an operator presses a button to stop a pump, the screen must register that input instantly. A half-second delay causes operators to press the button multiple times, leading to erratic machine behavior.
Evaluate communication capabilities to ensure seamless facility integration. Dual Gigabit LAN ports provide necessary network redundancy. They allow you to separate the local machine network (OT) from the broader plant network (IT). Serial ports connect legacy devices like barcode scanners, weigh scales, or older variable frequency drives. Support for modern industrial protocols is mandatory. The panel must pull I/O data rapidly from PLCs via Ethernet/IP or PROFINET while simultaneously pushing maintenance logs to higher-level ERP systems via OPC UA or MQTT.
Compare Resistive versus Projected Capacitive (PCAP) touchscreens carefully. Consider the specific context of a compact warehouse touch terminal. Evaluate the presence of water, chemical washdowns, and heavy glove usage. Multi-touch requirements, like pinch-to-zoom on schematics, dictate PCAP technology. PCAP offers superior optical clarity and a glass front that resists scratching. However, resistive touchscreens excel in harsh, wet environments. Resistive screens rely on physical pressure rather than electrical capacitance, meaning water droplets will not cause false touches, and operators can use thick rubber gloves without issue.
Touch Technology | Input Method | Environmental Strengths | Limitations |
|---|---|---|---|
Resistive (Analog) | Physical pressure (Stylus, heavy glove, bare finger) | Immune to water droplets, works with any glove type. | Single-touch only, softer front layer can scratch over time. |
Projected Capacitive (PCAP) | Electrical capacitance (Bare finger, thin nitrile glove) | High optical clarity, scratch-resistant glass front. | Water pooling can cause false touches, fails with thick leather gloves. |
Burying critical maintenance prompts under too many navigational layers creates severe operational risk. Operators suffer navigation fatigue and simply stop looking for the data. Important preventative maintenance tasks get ignored until a mechanical failure forces a shutdown. Mitigate this by implementing a strictly flat menu structure. Keep navigation to a maximum of three clicks to reach any diagnostic or maintenance screen. Utilize persistent navigation bars at the bottom or side of the screen. This ensures operators always know their current location within the interface and can return to the home screen instantly.
Network bottlenecks and underpowered hardware cause real problems on the factory floor. Screens freeze during critical operations. Visual artifacts appear when graphics fail to render properly. Data updates get delayed, showing operators stale telemetry. Mitigate these issues by optimizing PLC tag update rates. Do not poll a temperature sensor every 10 milliseconds if the temperature only changes over several minutes. Utilize exception-based reporting, where data is only sent when a value actually changes. Ensure the hardware has sufficient network bandwidth and graphical processing capabilities to match the demands of the HMI software platform.
Physical environmental risks constantly threaten hardware longevity. Dust ingress shorts out internal components. Water spray from washdown procedures destroys unsealed screens. Extreme heat causes processors to throttle or fail entirely. Mitigate environmental degradation by specifying appropriate NEMA or IP ratings for the enclosure. Use optical bonding on the touchscreen to prevent internal condensation in humid environments. Ensure proper thermal management. Utilize heavy aluminum heat sinks for fanless cooling within sealed electrical cabinets, and keep the panel PC away from high-heat sources like braking resistors.
Execute the following steps to finalize your HMI deployment strategy:
Audit your existing PLC tag structures and standardize User-Defined Types (UDTs) for all motors, valves, and maintenance alerts.
Wireframe the main operator screen using ISA-101 high-performance graphics principles to eliminate clutter and establish a grayscale baseline.
Procure a test unit to verify screen readability under actual plant lighting conditions and confirm touch compatibility with operator gloves.
Map out a flat navigation hierarchy to ensure all diagnostic and maintenance screens are reachable within three clicks from the main dashboard.
Configure exception-based reporting in your communication drivers to minimize network traffic and prevent screen rendering delays.
We provides industrial HMI panel PCs designed for machine control, automation monitoring, and equipment management applications.
Our solutions support customized screen sizes, processors, operating systems, and industrial interfaces to meet different project requirements.
✔ 12.1-inch industrial touchscreen
✔ Fanless cooling design
✔ Industrial-grade components
✔ Multiple I/O options
✔ OEM/ODM customization
A: The optimal resolution typically ranges from 1024x768 (XGA) to 1280x800 (WXGA). This provides sufficient pixel density for crisp vector graphics and readable text without overloading the onboard graphics processor. Higher resolutions on this physical screen size make touch targets too small for gloved operators to hit accurately.
A: Implement a strict visual hierarchy. Keep the main screen focused purely on machine state, active alarms, and production KPIs. Move detailed I/O diagnostics and routine maintenance prompts to secondary screens. Use muted colors for normal operations and high-contrast colors only for active alerts.
A: Yes, modern terminals support MQTT, OPC UA, and REST APIs. These protocols allow the panel to push maintenance logs, cycle counts, and operator acknowledgments directly into a Computerized Maintenance Management System (CMMS) or ERP platform, bypassing intermediate servers entirely.
A: An active alarm indicates a critical machine fault requiring immediate operator intervention to prevent damage or downtime. A maintenance prompt is a scheduled alert based on run-hours or cycle counts, signaling routine tasks like filter changes or lubrication before a failure occurs.
A: UDTs group related PLC tags into a single standardized structure. On the HMI, you create one global graphic object and pass the UDT instance to it. This eliminates the need to manually link hundreds of individual tags for every motor, valve, or cylinder on the machine.
A: These issues stem from underpowered hardware, excessive tag update rates, or network bottlenecks. Requesting too much data simultaneously overloads the communication driver. Using exception-based reporting and ensuring the panel has adequate RAM and CPU power mitigates these rendering and timeout problems.
