Machine vision applications—ranging from high-speed defect detection on bottling lines to robotic guidance in automotive welding—place relentless demands on compute hardware. Standard commercial computers may struggle under the combined demands of continuous data ingestion and harsh factory environments. Selecting the wrong compute and storage components results in thermal throttling, dropped frames, false rejects, and line downtime. You must balance processing requirements with environmental constraints like extreme temperatures, shock, and vibration. Successfully architecting a machine vision system requires moving beyond basic spec sheets. We will detail the technical evaluation criteria for selecting CPUs, memory, and storage architectures. This ensures reliability, deterministic performance, and long-term viability in industrial deployments.
CPU Selection is Workload-Dependent: Rule-based machine vision relies heavily on single-thread clock speed, while deep learning and AI inference require multi-core architectures and potential hardware acceleration.
Thermal Design Power (TDP) Dictates Chassis Design: High-performance processors generate significant heat; selecting a fanless industrial PC requires strict alignment between the CPU’s TDP and the system's passive cooling capabilities to prevent thermal throttling.
Storage Endurance is Critical: Continuous image logging can accelerate SSD wear. Evaluating Drive Writes Per Day (DWPD) and Terabytes Written (TBW) helps reduce the risk of premature drive failure.
Environmental Ruggedness Impacts Component Choice: High shock and vibration environments necessitate industrial-grade solid-state storage, secure mounting (e.g., M.2 or soldered components), and wide-temperature rated memory.

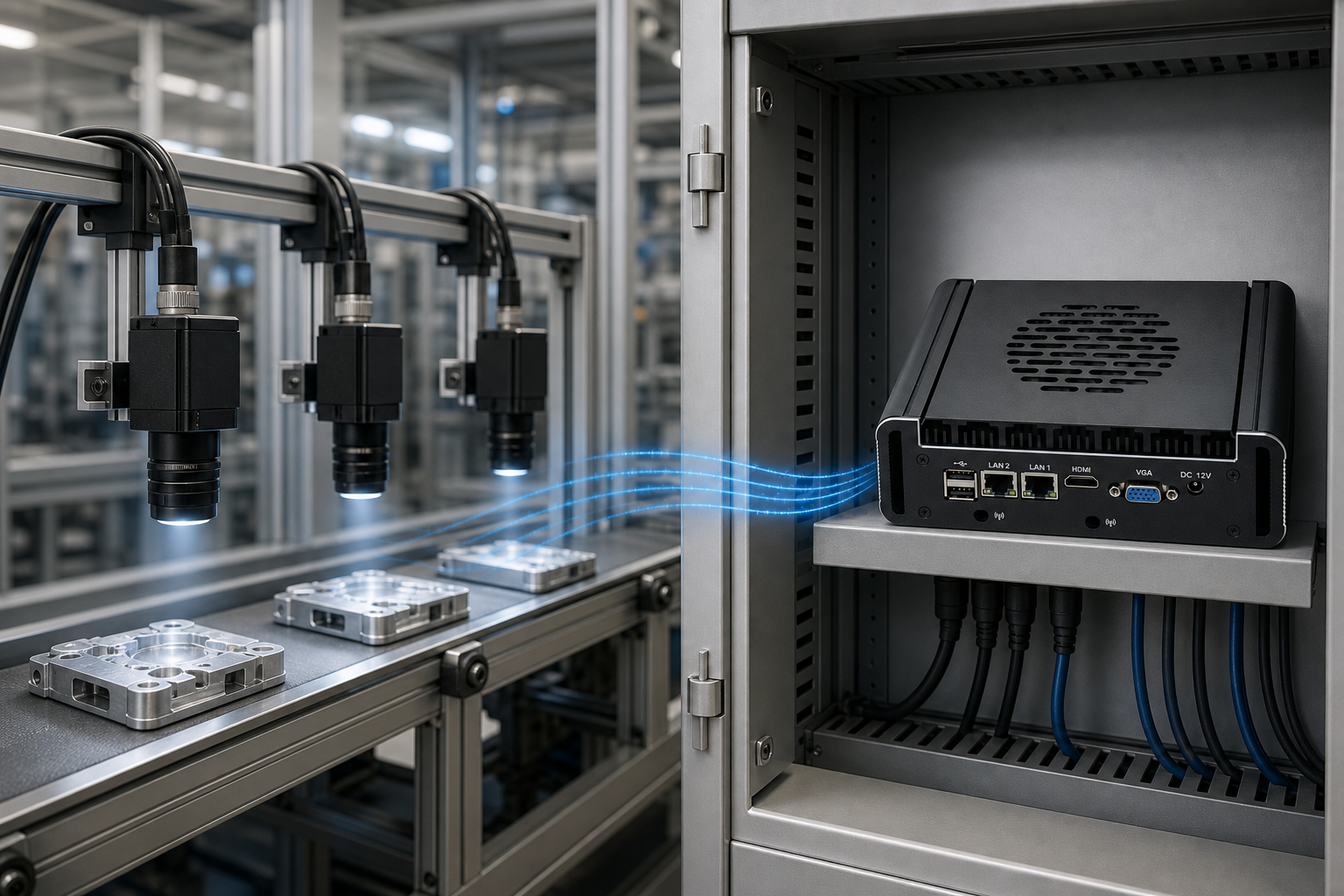

Figure 1. Machine vision inspection line and industrial PC data path.
This article is most useful for engineers, equipment builders, and purchasing teams who are comparing industrial PCs for inspection, imaging, and factory automation. Before choosing a configuration, confirm the number of cameras, camera interface, image resolution, vision software, response-time target, operating temperature, storage policy, and required I/O.
The NANO-I product shown in the illustrations is a compact industrial PC with visible dual LAN, HDMI, VGA, USB, serial, and DC 12V interfaces. The available CPU, memory, storage, and environmental configurations should be confirmed against the selected model and your project requirements.
Machine vision workloads operate under strict performance mandates. The baseline requirements for any successful deployment include zero dropped frames, deterministic latency, and continuous 24/7 operation. When an automated optical inspection (AOI) system scans a printed circuit board, it must capture, process, and output a pass/fail decision within milliseconds. Any delay caused by hardware bottlenecks results in the physical manufacturing line halting or defective products reaching the consumer. A High Performance Industrial PC serves as the brain of this operation, ensuring compute resources are available exactly when the software demands them.
Engineers cannot treat machine vision hardware like standard IT equipment. If a database server in an office experiences a 500-millisecond latency spike, a user waits slightly longer for a web page to load. If a vision controller experiences that same latency spike, a robotic arm might crash into a misaligned chassis, causing thousands of dollars in physical damage. Determinism—the ability to execute a task in a highly predictable timeframe—is the primary success metric.
Understanding hardware requirements begins with mapping the journey of image data. High-resolution sensors capture raw visual data and transmit it via high-bandwidth protocols like GigE Vision, USB3 Vision, or CoaXPress. This data enters the system through dedicated network interface controllers or frame grabbers. From there, it moves directly into system memory (RAM). The CPU then retrieves this data from memory to execute inspection algorithms. Finally, the system logs the original images, metadata, and inspection results to solid-state storage.
Bottlenecks typically occur at the interfaces between these components. If the storage drive cannot write data fast enough, the RAM fills up. Once the RAM is saturated, the system drops incoming camera frames, leading to immediate inspection failures. You must architect the entire pipeline to handle the maximum theoretical bandwidth of all connected cameras firing simultaneously.
Commercial desktop computers are designed for climate-controlled offices. They rely on active cooling fans that pull ambient air across the motherboard. In some industrial settings, this design can increase contamination and maintenance risks. In a casting foundry, cooling fans pull in conductive metallic dust, which eventually shorts out the motherboard components. In an electronics clean room, a computer fan acts as a disruptive blower, circulating unwanted airborne particulates across sensitive manufacturing processes.
Industrial hardware eliminates these failure points through fanless architectures. By utilizing sealed, extruded aluminum enclosures, these systems dissipate heat passively. This design mandate protects internal components from dust, moisture, and chemical vapors while maintaining strict environmental control on the factory floor. You must specify hardware that survives the ambient environment without requiring secondary protective enclosures that trap heat.
Project Requirement | What to Confirm |
|---|---|
Camera workload | Camera quantity, interface, resolution, frame rate, and trigger frequency. |
Vision software | CPU instruction sets, operating-system compatibility, memory requirements, and accelerator support. |
Storage workload | Image retention policy, daily write volume, sustained write performance, and endurance. |
Factory integration | LAN, USB, HDMI, VGA, COM, power input, mounting, and operating environment. |
Selecting the right processor requires a deep understanding of the specific vision software being deployed. Hardware should follow the software requirements.
Before evaluating hardware specifications, you must audit the baseline prerequisites of your chosen commercial vision libraries. Software platforms like Cognex VisionPro, MVTec HALCON, and Matrox Imaging Library possess specific hardware dependencies. Follow these steps when auditing software:
Verify the exact instruction sets required by the vision library, such as Advanced Vector Extensions 2 (AVX2) or SSE4.2.
Check the recommended base clock frequency for single-threaded operations.
Determine if the software supports multi-threading for the specific algorithms you plan to use.
Confirm compatibility with the operating system version and any required real-time extensions.
AVX2 allows the processor to handle complex mathematical operations on large datasets simultaneously, drastically reducing image processing times. Failing to provide a CPU that supports these required instruction sets will result in software incompatibility or severe performance degradation.
Traditional, rule-based machine vision relies on established algorithms like edge detection, pattern matching, blob analysis, and optical character recognition (OCR). These algorithms process pixels sequentially. Because the mathematical operations must happen in a specific order, they cannot be easily divided among multiple processor cores.
Rule-based vision heavily favors high base clock speeds and exceptional single-thread performance. A quad-core processor running at 4.5 GHz will outperform a 16-core processor running at 2.0 GHz when executing traditional edge detection tasks. You must prioritize clock frequency over core count for these specific workloads to achieve the lowest possible latency per inspection.
The hardware requirements shift dramatically when deploying deep learning and AI inference models for defect classification. Neural networks evaluate millions of parameters simultaneously. This workload is inherently parallel, meaning it benefits massively from multi-threading. When running AI inference, a high-core-count CPU becomes highly advantageous.
You must also evaluate when to offload these tasks entirely. If the AI model is exceptionally large or requires real-time processing of multiple high-resolution camera streams, relying solely on the CPU is inefficient. In these cases, the architecture must support offloading inference tasks to a discrete Graphics Processing Unit (GPU) or a dedicated Vision Processing Unit (VPU). This frees the CPU to handle system I/O and basic logic while the accelerator handles the heavy mathematics.
The processor tier dictates the overall capability of the system. Selecting the correct tier prevents both processing bottlenecks and unnecessary power consumption.
When configuring an industrial Core processor PC, you must align the CPU tier with the application complexity. Intel Core i3 processors provide sufficient compute for simple, single-camera tasks like basic barcode reading or presence/absence detection. Intel Core i5 and i7 processors represent the industry standard for multi-camera, high-speed 2D inspections, offering the optimal balance of clock speed and multi-core capability.
Intel Core i9 processors are reserved for highly demanding applications, such as high-speed 3D laser profiling or heavy AI inference. Intel Xeon processors are typically deployed in centralized edge servers rather than machine-level controllers, providing massive core counts and server-grade reliability for facility-wide data aggregation.
Memory selection directly impacts system reliability. Error-Correcting Code (ECC) memory detects and corrects single-bit memory errors caused by electrical interference or cosmic rays. While not strictly necessary for basic packaging inspections, ECC memory is mandatory for mission-critical tasks like pharmaceutical verification or aerospace component inspection, where a single flipped bit could cause a false pass.
Industrial systems frequently utilize DDR SODIMM memory modules. Originally designed for laptops, SODIMM modules offer a highly compact footprint. This allows engineers to design smaller edge deployments. More importantly, when securely mounted, SODIMM modules provide superior resistance to shock and vibration compared to full-sized desktop DIMMs. The shorter physical profile reduces the leverage exerted on the memory slot during high-G impacts.
Consumer processors are refreshed annually, with older models quickly discontinued. This rapid lifecycle is unacceptable in industrial automation. Validating a machine vision system takes months of engineering time. If the chosen CPU is discontinued six months after deployment, the entire system must be re-engineered and re-certified.
To avoid premature obsolescence, you must exclusively select processors listed on Intel’s Embedded Roadmap. Some embedded silicon SKUs may offer extended availability, but the lifecycle commitment must be confirmed for the exact processor model and supply program. This ensures that a machine built today can be exactly replicated a decade from now, maintaining a standardized hardware fleet across your manufacturing facilities.
Heat is the primary enemy of electronic reliability. Managing it dictates the physical design of the entire computer.
Thermal Design Power (TDP) represents the maximum amount of heat generated by the CPU that the cooling system must dissipate. There is a direct, unavoidable relationship between CPU performance, heat generation, and chassis size. A 35W processor can be cooled by a relatively small, compact enclosure. A 65W processor requires a significantly larger chassis with deeper cooling fins.
Placing a 120W processor in a small, fanless enclosure requires careful thermal analysis and may not be practical without sufficient heat-dissipation capacity. You must balance the compute requirements of the vision software against the physical space available in the electrical cabinet. If the cabinet is sealed (e.g., NEMA 4X), you must also account for the ambient temperature inside that enclosure, which will be higher than the factory floor temperature.
When a CPU generates more heat than the chassis can dissipate, the processor protects itself from physical destruction by engaging thermal throttling. The CPU artificially lowers its clock speed to reduce heat output. In a machine vision context, this is a failure state. If a 4.0 GHz processor suddenly drops to 1.5 GHz to cool down, the inspection algorithms will take more than twice as long to execute.
This destroys deterministic latency. The system will immediately begin dropping camera frames, causing uninspected products to pass down the line. Adequate passive cooling is essential when a fanless design is selected. You must specify a chassis rated to dissipate the full TDP of the processor at the maximum expected ambient temperature.

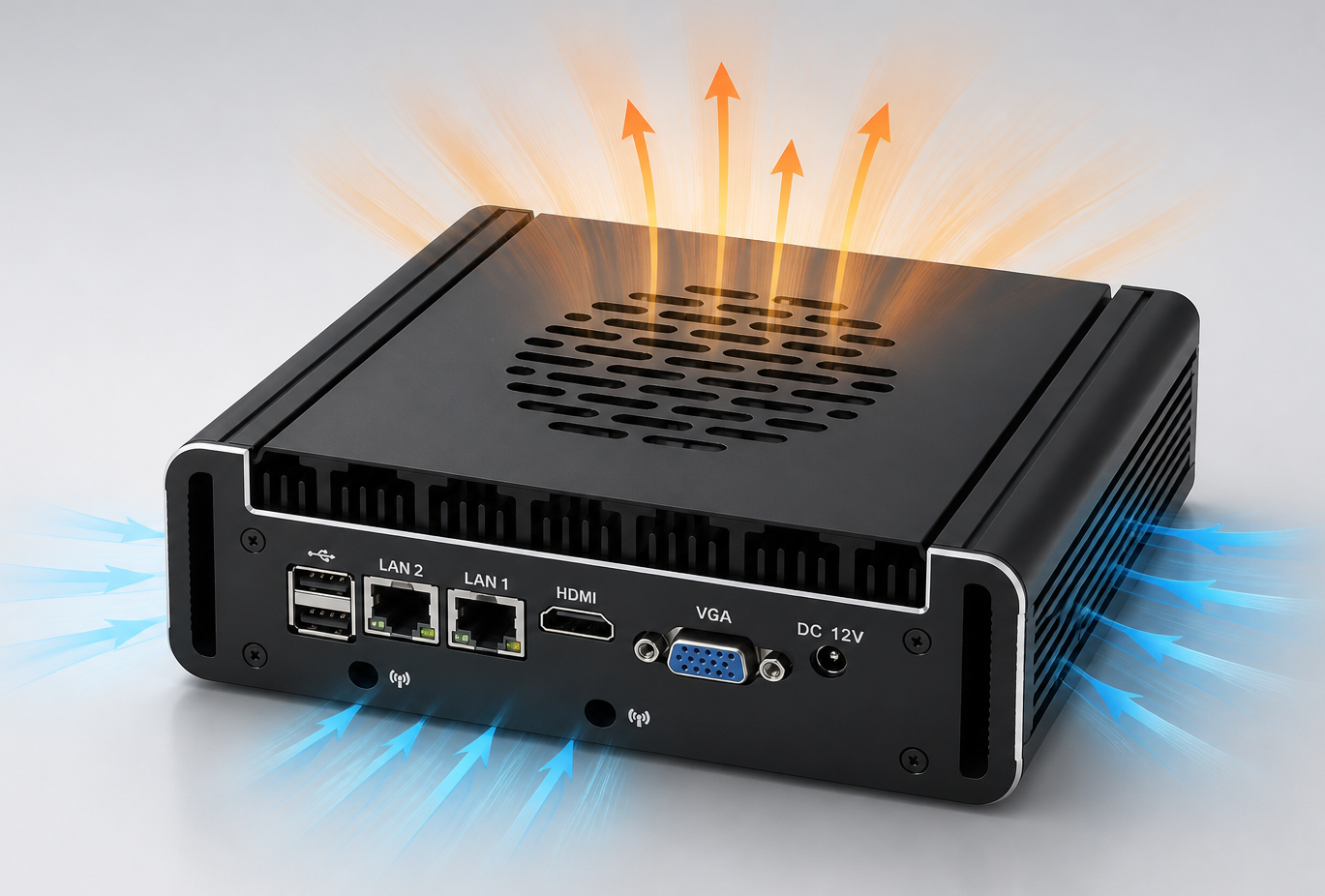

A machine vision edge computer utilizes advanced thermodynamics to operate without moving parts. The CPU die makes direct contact with a copper heat spreader. Thermal paste fills microscopic imperfections to ensure maximum surface contact. Copper heat pipes, containing a small amount of phase-change liquid, draw heat away from the processor.
As the liquid absorbs heat, it vaporizes, travels down the pipe, condenses, and releases the heat into the heavy extruded aluminum chassis. The external fins of the chassis increase the surface area, allowing ambient air to carry the heat away. This closed-loop system ensures continuous, reliable cooling in the harshest environments without pulling contaminated air across the motherboard.
Figure 3. Conceptual machine vision image-data path to solid-state storage.
Machine vision systems generate massive amounts of data. Storage drives must be capable of ingesting this data without creating a bottleneck.
High-resolution, high-framerate image logging requires significant storage bandwidth. Consider a system utilizing four 5-GigE cameras. If all four cameras trigger simultaneously, the system must ingest 20 Gigabits of data per second. While not all data is permanently saved, logging failed images, system metadata, and deep learning training datasets requires a storage interface capable of handling massive, sustained write operations.
Calculating the exact throughput requirement based on image size and trigger rate is the first step in storage selection. If your software writes uncompressed bitmap files for regulatory compliance, your storage bandwidth requirements will be exponentially higher than a system saving compressed JPEGs.
The traditional SATA III interface may be insufficient for some modern, high-speed machine vision workloads. SATA III bottlenecks at a theoretical maximum of 600 MB/s, and practical speeds are often lower. Attempting to route multiple high-resolution camera streams to a SATA drive will instantly saturate the interface, causing system-wide latency.
PCIe NVMe Solid State Drives (SSDs) are often preferred for these workloads, but the final choice should be based on measured sustained bandwidth and endurance requirements. By utilizing the PCIe bus directly, some modern NVMe drives can achieve very high sequential write speeds, although actual sustained performance depends on the model, workload, temperature, and controller. This massive bandwidth ensures that the storage drive never forces the CPU or RAM to wait, keeping the data pipeline flowing smoothly.
Speed is only half the equation. Industrial storage must survive continuous, punishing write cycles.
NAND flash memory, the technology behind all SSDs, degrades with use. Every time data is written to a flash cell, the insulating oxide layer degrades slightly. Eventually, the cell can no longer hold an electrical charge and fails permanently. High-write machine vision systems can wear consumer-grade SSDs more quickly when they continuously log high-resolution images, system logs, and database updates. Understanding and mitigating this wear is required for long-term reliability.
Storage endurance is measured in two ways: Terabytes Written (TBW) and Drive Writes Per Day (DWPD). TBW indicates the total amount of data that can be written to the drive over its entire lifespan before failure is expected. DWPD calculates how many times the entire capacity of the drive can be overwritten daily over the warranty period.
You must calculate your required DWPD based on factory shift schedules. Consider a practical example:
A camera captures 10MB images and triggers 5 times per second.
This generates 50MB of data per second.
In a standard 8-hour shift, that equals 1.44 Terabytes of data (50MB * 60 seconds * 60 minutes * 8 hours).
If the factory runs three shifts (24/7 operation), the system writes 4.32 Terabytes per day.
If you install a 2TB SSD, the required DWPD is 2.16 (4.32 TB / 2 TB).
For this illustrative workload, a drive rated at 0.3 DWPD would provide less endurance margin than a higher-endurance industrial drive. The final DWPD target should be calculated from the exact retention policy, write amplification, warranty period, and required service life.
The underlying flash technology dictates the drive's endurance. You must specify the correct NAND type for your workload.
NAND Technology | Bits Per Cell | Endurance Level | Recommended Industrial Use |
|---|---|---|---|
SLC (Single-Level Cell) | 1 | Extremely High (100,000+ cycles) | Mission-critical logging, extreme write environments. |
MLC (Multi-Level Cell) | 2 | High (10,000+ cycles) | Standard machine vision image logging and databases. |
TLC (Triple-Level Cell) | 3 | Moderate (3,000+ cycles) | Read-heavy applications, OS drives, light logging. |
QLC (Quad-Level Cell) | 4 | Low (1,000 cycles) | Not recommended for industrial machine vision. |
For high-write machine vision applications, industrial-grade TLC (often utilizing pseudo-SLC caching) or true MLC/SLC drives are strongly recommended to prevent premature failure.
Physical environmental factors destroy storage drives just as quickly as write exhaustion.
Traditional 2.5-inch SATA drives, even solid-state versions, rely on internal cables and physical connectors that are vulnerable to high-vibration environments like stamping presses or CNC machining centers. Constant vibration causes micro-fretting on the connector pins, leading to intermittent data loss.
M.2 NVMe and mSATA form factors can be advantageous for industrial use when the motherboard provides secure retention and the selected drive meets the environmental requirements. These drives plug directly into the motherboard and are physically screwed down, eliminating cable failures and ensuring a secure connection regardless of ambient vibration.
Factory floors are rarely climate-controlled. An electrical cabinet in a steel mill may reach 60°C, while an outdoor inspection station in winter may drop below freezing. Standard commercial SSDs are rated for 0°C to 70°C. Operating outside this range can reduce reliability, cause throttling, or contribute to data-integrity problems, depending on the drive and system design. Industrial storage components are specifically engineered and tested to operate reliably in wide-temperature ranges, typically from -40°C to 85°C. Wide-temperature memory and storage should be considered for unconditioned deployments after the actual ambient range has been measured.
Humidity and airborne chemicals pose severe risks to exposed printed circuit boards. Condensation can cause immediate short circuits. Conformal coating involves applying a thin, protective polymeric film over the storage drive and motherboard components. This coating acts as a barrier against moisture, dust, and corrosive airborne particulates. For vision systems deployed in food processing washdown zones or chemical manufacturing, conformal coating is an essential specification.
A powerful CPU is useless if it cannot interface effectively with the required cameras and factory automation networks.
Machine vision relies heavily on GigE Vision and USB3 Vision protocols. You must evaluate the need for integrated Power over Ethernet (PoE+) ports. The 802.3at PoE+ standard delivers up to 30 watts of power per port, allowing a single cable to provide both data and power to the camera. This drastically simplifies cable routing on robotic arms.
It is critical to ensure that multi-port network cards and USB 3.2 controllers utilize independent host controllers. If four cameras share a single internal PCIe lane, bandwidth will bottleneck, causing dropped frames regardless of CPU speed. Specify systems with independent Intel Gigabit or 2.5GbE controllers for each camera port.
While many edge computers are highly integrated, certain applications require dedicated PCIe expansion slots. High-speed line scan cameras often utilize Camera Link or CoaXPress protocols, which require dedicated frame grabber cards. Complex AI inference may require the installation of a discrete GPU.
When specifying a system with expansion slots, you must carefully calculate the CPU's available PCIe lane count to ensure that the frame grabber, GPU, and NVMe storage all have sufficient bandwidth to operate simultaneously without throttling.
Industrial power environments are notoriously unstable. The computer's power delivery system must protect the internal components.
Calculating total system power draw is a critical engineering step. You must factor in the maximum TDP of the CPU under full load, the power draw of multiple NVMe storage arrays, and the peripheral power required by PoE+ cameras or USB devices. A system with a 65W CPU, a discrete GPU, and four 15W PoE cameras requires a robust internal power supply. Under-sizing the power supply leads to system instability, random reboots, and corrupted storage when the system attempts to draw more current than is available.
Factory power lines experience severe fluctuations. When heavy machinery, like a large industrial motor, starts up, it causes a temporary voltage sag across the local grid. Stopping a motor can cause a voltage spike. Commercial computers require a stable 12V or 19V input and will shut down or suffer component damage during these fluctuations.
Industrial PCs require wide-range DC inputs, typically accepting anywhere from 9V to 48V. This wide input range, combined with Over-Voltage Protection (OVP) and Over-Current Protection (OCP), ensures the CPU and storage remain stable despite dirty factory power.
Mobile machine vision applications, such as those deployed on Automated Guided Vehicles (AGVs) or Autonomous Mobile Robots (AMRs), draw power directly from the vehicle's battery. When the vehicle is turned off, cutting power to the computer instantly will corrupt the OS and storage drives. Ignition power management features sense the loss of vehicle power and trigger a delayed, graceful shutdown sequence. The system uses reserve power to safely spin down processes, save logs, and power off the storage drives before fully shutting down.
Finding the exact hardware balance is the most difficult aspect of system design.
Deploying a system with insufficient CPU power or slow storage leads to immediate operational failure. The system will drop frames, generate false positive inspection results, and crash under peak load. This causes unacceptable manufacturing downtime and requires an immediate, costly hardware replacement.
Simply buying the most expensive, highest-spec hardware creates different problems. An unnecessarily powerful 120W CPU generates excessive heat, requiring a massive chassis that may not fit inside the designated electrical cabinet. It also wastes budget that could be better allocated to higher-quality optics or lighting.
A rigorous Proof of Concept (PoC) test is the most reliable way to reduce these risks. You must configure a test unit and run representative image sets through the actual vision software. By utilizing performance monitoring tools, you can benchmark exact CPU utilization, memory consumption, and storage write speeds. This empirical data allows for precise hardware specification, ensuring the final deployment is both capable and cost-effective.
Hardware changes can invalidate software certifications.
Consumer-grade SSDs and motherboards undergo silent component revisions frequently. A manufacturer may swap the NAND flash controller on an SSD every six months without changing the model number. In a validated medical device manufacturing environment, this undocumented hardware change forces a complete, highly expensive software recertification process.
To prevent this, you must mandate locked Bills of Material (BOM). By relying strictly on industrial hardware vendors, you ensure that every component—down to the specific memory modules and SSD controllers—remains identical for the entire lifecycle of the deployment. If a component must change due to end-of-life, industrial vendors provide advanced notice, allowing time for controlled transition planning.
Specification | Consumer PC Hardware | Industrial PC Hardware |
|---|---|---|
Lifecycle Availability | 6 to 12 Months | 10 to 15 Years (Locked BOM) |
Operating Temperature | 0°C to 40°C | -40°C to 85°C |
Input Voltage | Fixed (12V or 19V) | Wide Range (9V to 48V) |
Cooling Method | Active Fans (Pulls in dust) | Passive Fanless (Sealed chassis) |
Need help selecting an industrial PC for your machine vision system? Share your camera interface, camera quantity, image resolution, vision software, storage policy, operating temperature, and required I/O. MeetNENG can help evaluate a suitable NANO-I configuration for your application.
Audit your specific vision software’s hardware recommendations, paying close attention to required instruction sets like AVX2.
Calculate your exact daily image logging volume to determine the required Drive Writes Per Day (DWPD) for your storage drives.
Measure the physical dimensions and ambient temperature of your deployment location to define chassis size and thermal constraints.
Configure a test unit with an industrial computing specialist for rigorous Proof of Concept (PoC) validation on the factory floor.
A: Commercial PCs use active cooling fans and standard components designed for climate-controlled offices. They fail quickly in dusty or vibrating environments. A machine vision edge computer features a fanless, extruded aluminum chassis, wide operating temperature ranges, high shock tolerance, and dedicated I/O like independent PoE ports for industrial cameras.
A: Basic rule-based inspections typically require 8GB to 16GB of RAM. High-resolution 3D profiling or deep learning applications demand 32GB or more. Engineers often specify DDR SODIMM modules because their compact size and secure mounting provide better shock and vibration resistance on the factory floor.
A: TDP (Thermal Design Power) measures the maximum heat the CPU generates under load. In fanless industrial PCs, the chassis must passively dissipate this exact amount of heat. If the CPU generates more heat than the chassis can handle, it will thermal throttle, causing latency and dropped camera frames.
A: NVMe SSDs are often a good choice for high-speed machine vision, but the interface should be selected after comparing the measured workload with sustained performance, endurance, and environmental requirements. NVMe drives utilize the PCIe bus to achieve write speeds exceeding 7000 MB/s. SATA SSDs bottleneck at around 600 MB/s, which cannot handle the simultaneous data ingestion from multiple high-resolution industrial cameras.
A: A frame grabber is a dedicated PCIe expansion card that captures digital image data from specialized cameras using protocols like CoaXPress or Camera Link. It offloads the data ingestion workload from the main CPU, ensuring zero-latency image transfer directly into the system memory.
A: Conformal coating is a thin polymeric film applied directly to printed circuit boards and storage drives. It creates a physical barrier that protects sensitive electronic components from moisture, condensation, conductive dust, and corrosive chemical vapors found in harsh manufacturing environments.
