The transition of the plant floor from isolated machine control to fully integrated OT/IT environments requires hardware that can bridge the gap between physical processes and enterprise software, including ERPs and centralized data historians. Legacy operator panels often trap critical production data at the machine level. Engineers and IT managers face the challenge of extracting real-time PLC data, contextualizing it, and pushing it to supervisory (SCADA), execution (MES), and enterprise (ERP) layers without introducing network latency, security vulnerabilities, or protocol mismatches. Modernizing this data flow requires deploying edge-capable hardware. This guide breaks down the communication protocols, hardware specifications, upgrade strategies, and software architectures necessary to successfully integrate an Industrial HMI Panel PC with higher-level enterprise platforms.
Protocol Standardization is Critical: Successful SCADA and MES integration relies on transitioning from proprietary PLC protocols to standardized, platform-agnostic frameworks like OPC UA and MQTT.
Hardware Must Support Edge Computing: A modern HMI is no longer just a display; it acts as an edge gateway requiring sufficient CPU, RAM, and dual-LAN configurations to process and route data securely.
Network Segmentation Mitigates Risk: Direct connections between machine-level networks and enterprise MES introduce severe security risks. Proper integration requires strict adherence to the Purdue Model using hardware-level network isolation.
Software Agnosticism Drives Scalability: Decoupling HMI hardware from proprietary SCADA software prevents vendor lock-in, future-proofs the installation, and allows for flexible, scalable enterprise deployments.
Integration Unlocks Tangible ROI: Bridging the HMI-to-SCADA gap transforms isolated assets into smart, data-driven nodes, directly enabling real-time OEE tracking and energy efficiency monitoring.
Successful data exchange between the shop floor and enterprise systems requires strict performance baselines. High availability means the screen never freezes during a database query. Sub-millisecond latency is mandatory for local control. If an operator presses an emergency stop or a jog button on the screen, the PLC must receive that command instantly. At the same time, the system must package and send secure outbound data to MES and ERP systems. You cannot allow a heavy SQL pull from the enterprise layer to interrupt physical machine operations. Success means establishing a bi-directional data flow that strictly isolates control logic from enterprise querying.
Early operator panels were simple push-button replacements. They read a register and turned a digital light green. Today, the hardware acts as a localized data aggregator and the foundational building block of a plant-wide SCADA architecture. Instead of wiring every single PLC directly to a central server—which creates a massive network bottleneck—the local interface processes raw machine tags. It scales the values, applies engineering units, and packages them into contextualized payloads. This distributed architecture pushes computing power to the edge, reducing the processing load on the central SCADA server.

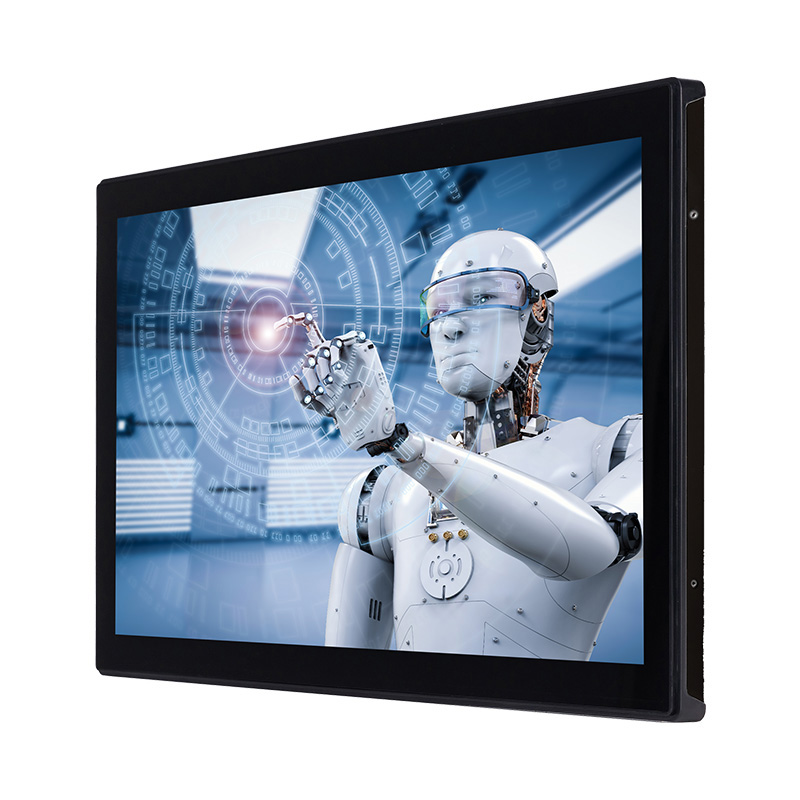

Many facilities operate older machinery like legacy furnaces, stamping presses, or packaging lines that lack modern network connectivity. Deploying a modern industrial HMI panel PC directly onto these older assets instantly modernizes the equipment. The hardware interfaces with older serial PLCs, digitizes the I/O, and bridges the gap to modern Ethernet networks. You gain immediate access to energy efficiency tracking, cycle time monitoring, and performance optimization without replacing the heavy machinery itself.
Feature | Legacy Operator Panel | Modern Edge HMI |
|---|---|---|
Data Processing | None (Pass-through only) | Local aggregation and scaling |
Network Connectivity | Serial (RS-232/485) | Dual Gigabit Ethernet |
Protocol Support | Proprietary PLC only | OPC UA, MQTT, REST API |
Storage | KB of flash memory | Industrial SSD/NVMe |
Understanding the data trajectory prevents network routing errors. The standard flow follows a strict hierarchy:
Machine Sensors/Actuators: Generate physical electrical signals (4-20mA, 0-10V).
PLC: Reads signals and converts them into raw data registers.
Local Interface: Reads registers, provides visualization, and translates data into standard protocols.
SCADA (Supervisory Control): Aggregates data from multiple machines for historical logging and facility-wide control.
MES (Production Execution): Uses SCADA data for batch management, recipe downloads, and OEE tracking.
ERP/Cloud (Business Logic): Consumes aggregated metrics for financial forecasting and supply chain management.
OPC Unified Architecture (OPC UA) is the preferred protocol for HMI-to-SCADA communication. It replaces the restrictive, Windows-only DCOM architecture of older OPC DA standards. OPC UA provides true platform independence, running natively on Linux, Windows, and real-time operating systems. The protocol enforces payload encryption and requires strict X.509 certificate exchanges before any data transmission occurs. Furthermore, OPC UA supports complex data modeling. Instead of passing a raw integer, it passes an object containing the value, engineering units, timestamp, and quality status. This rich data context drastically reduces the configuration time required at the SCADA level.
When pushing data to MES, enterprise databases, and cloud historians, traditional polling protocols consume too much bandwidth. MQTT utilizes a publish-subscribe (Pub/Sub) architecture. The local interface acts as a publisher, sending data to a central MQTT broker only when a value changes. This report-by-exception model provides massive bandwidth efficiency. However, raw MQTT lacks a standardized data payload structure. The Sparkplug B specification solves this by defining exactly how industrial data should be formatted within an MQTT payload. It also manages state awareness, ensuring the MES instantly knows if an edge device drops offline.
Brownfield deployments rarely feature a single brand of PLC. Facilities often contain a mix of Siemens, Rockwell, Mitsubishi, and Omron controllers. Direct PLC-to-SCADA communication often breaks down due to these proprietary protocols. The local interface must act as a universal protocol converter. It translates legacy fieldbus networks and various Industrial Ethernet standards—such as Modbus TCP, PROFINET, or EtherNet/IP—into IT-friendly formats. This translation layer normalizes the data before it ever hits the enterprise network.
Modern manufacturing execution requires direct database interaction. Relying solely on SCADA to pass recipe data down to the machine introduces unnecessary middleware. Modern edge hardware supports direct REST API calls and SQL database connectivity. The runtime software can execute SQL queries directly against the MES database. This capability allows the local interface to pull down batch recipes, verify operator credentials against a central database, or push end-of-shift production reports directly to the ERP. Bypassing the SCADA layer for specific transactional data reduces latency and simplifies the overall software architecture.
Running concurrent visualization, protocol translation, and local historian buffering requires significant compute capability. A basic ARM processor may handle simple screen rendering, but edge computing demands more. Evaluating CPU requirements dictates system stability. Intel Core i3, i5, or i7 processors provide the multi-threading necessary to run a local SQL database alongside a heavy graphics runtime. Intel Atom or Celeron processors offer lower power consumption but struggle with high-frequency data polling. RAM is equally important. Handling large tag databases without user interface lag requires a minimum of 8GB to 16GB of DDR4 memory. Insufficient RAM leads to screen freezing during heavy MES data synchronization. When specifying a factory automation touch computer, always over-provision memory to account for future software updates.
Physical network segmentation is a fundamental requirement of the Purdue Model for ICS security. The hardware must feature multiple Gigabit Ethernet ports. Single-LAN configurations force the IT network and the OT network to share the same physical switch, creating massive security vulnerabilities. Dual LAN configurations solve this. LAN 1 connects exclusively to the isolated OT network, communicating only with local PLCs and machine sensors. LAN 2 connects to the IT/SCADA network, handling outbound OPC UA or MQTT traffic. The hardware acts as a physical firewall, preventing enterprise network traffic from flooding the machine-level controllers.
Shop-floor deployments destroy standard commercial hardware. The physical environment dictates the hardware specifications. The front bezel must carry an IP65 or IP69K rating to withstand dust ingress and high-pressure water washdowns common in food and beverage facilities. The internal architecture must utilize a fanless thermal design. Cooling fans pull conductive metallic dust into the chassis, causing short circuits. Fanless designs rely on heavy aluminum heatsinks to dissipate thermal loads. The hardware must also support wide operating temperature ranges, often from -20°C to 60°C, and feature high vibration resistance to survive mounting on stamping presses or CNC enclosures. When selecting the display interface, engineers must also evaluate touch technology. Resistive touchscreens require physical pressure, making them suitable for operators wearing heavy leather or nitrile gloves. Projected capacitive (PCAP) screens offer multi-touch capabilities and higher clarity, but require glove-friendly tuning to function correctly in industrial environments.
Engineers must choose between bundled, proprietary software and open, hardware-agnostic platforms. Proprietary systems offer tight integration with their respective PLCs. They provide pre-built faceplates and diagnostic tools. However, they lock the facility into a single vendor ecosystem. Hardware-agnostic platforms decouple the software from the physical screen. These web-based platforms allow engineers to design the application once and deploy it to any device with an HTML5 browser. This flexibility drastically reduces development time and standardizes the user interface across different machine types.
Upgrading outdated panels without disrupting production requires careful planning. The rip-and-replace method often leads to extended downtime. A phased migration strategy works best. Engineers can install the new hardware in parallel with the legacy screen, tapping into the same PLC network. This allows operators to test the new interface while the old system remains active as a fallback. Decoupling the hardware layer from the software layer ensures future proofing. When the SCADA or MES system requires a version upgrade, the physical screens on the shop floor do not need to be replaced. The web-based clients simply pull the updated application from the central server.
Industrial networks experience outages. Cable strikes, switch failures, and server reboots disconnect the edge device from the central MES. During these outages, critical production data cannot be lost. An embedded control panel computer must utilize local storage, typically industrial-grade SSDs or NVMe drives, to buffer data. Store-and-forward technology automatically detects the network drop. It begins writing time-stamped tag data to the local drive. Once the network connection is restored, the software automatically forwards the buffered data to the centralized data historian. This process backfills the missing time period, ensuring the MES database remains perfectly accurate. Industrial-grade SSDs must feature advanced wear-leveling algorithms. Continuous data logging writes thousands of small files per minute, which can quickly degrade standard commercial flash memory. Specifying high-endurance SLC (Single-Level Cell) or MLC (Multi-Level Cell) storage prevents premature drive failure during heavy store-and-forward operations.
Modern software deployment relies heavily on containerization. Running Docker containers directly on the edge hardware is an emerging standard. This approach allows IT teams to deploy lightweight MES clients, machine learning algorithms, or analytics engines directly alongside the visualization runtime. Containers isolate applications from one another. If an analytics container crashes, it does not affect the primary machine control interface. This modular software architecture allows facilities to push updates to edge devices centrally, managing hundreds of screens through a single orchestration platform.
Connecting edge devices to enterprise networks introduces significant risk. These devices often run full desktop operating systems, making them targets for ransomware. Mitigation requires strict OS-level lockdown. Deploying Windows 10 or 11 IoT Enterprise LTSC (Long-Term Servicing Channel) removes unnecessary bloatware and prevents forced feature updates that can break runtime software. Alternatively, hardened Linux distributions provide a smaller attack surface. Engineers must disable all unused USB and Ethernet ports via the BIOS. Utilizing TPM 2.0 (Trusted Platform Module) hardware encryption ensures that the local drive cannot be read if the physical device is stolen from the facility.
Disable unused physical ports (USB, COM) in the BIOS.
Implement role-based access control (RBAC) within the runtime.
Deploy OS-level write filters to prevent unauthorized file modifications.
Enforce X.509 certificate authentication for all OPC UA connections.
Designing the system architecture requires choosing between thin and thick clients. Each approach carries distinct trade-offs.
Thick Client Architecture: The hardware runs the full application, communication drivers, and local database natively. This provides high resilience. If the central server goes down, the machine continues to operate normally. However, this requires higher hardware costs due to increased CPU and RAM demands. It also makes centralized updates more difficult, as each device must be patched individually.
Thin Client Architecture: The hardware acts merely as a web browser pointing to a central SCADA server. This drastically lowers hardware costs and simplifies centralized management. A single update on the server instantly pushes to all clients. The major drawback is network dependency. If the network drops, the operator loses all visibility and control of the machine.
Polling thousands of PLC tags at high frequencies can cripple an industrial network. Traditional protocols request data from the PLC every few milliseconds, regardless of whether the data has changed. This continuous polling causes network flooding, increasing latency for critical control commands. For example, a single Allen-Bradley ControlLogix PLC might contain 50,000 tags. Attempting to poll all 50,000 tags at a 100ms update rate will instantly saturate a standard 100Mbps switch port. Mitigation requires shifting data transmission strategies. Implementing report-by-exception (RBE) ensures that data is only transmitted when a value changes beyond a predefined deadband. Additionally, grouping tags into bulk data blocks rather than polling individual registers significantly reduces the packet overhead on the network switch.
An industrial interface is no longer a standalone component restricted to local machine jogging. It is the localized bridge between machine execution and enterprise intelligence. Extracting trapped data and routing it to SCADA and MES platforms requires specific hardware capabilities. Success depends equally on hardware durability, protocol flexibility, and strict network security. Standardizing on modern communication frameworks ensures that production data flows seamlessly from the sensor level to the executive dashboard.
When evaluating vendors and hardware specifications, prioritize dual-LAN capabilities for proper network segmentation. Ensure support for OPC UA and MQTT out-of-the-box to avoid costly middleware add-ons. Select fanless edge-computing processing power capable of handling local SQL databases. Finally, verify compatibility with hardware-agnostic SCADA platforms to prevent long-term vendor lock-in.
Conduct a comprehensive network architecture audit to clearly define OT and IT boundaries.
Map out required PLC tag counts and define polling frequencies to calculate bandwidth requirements.
Initiate a pilot program using a single edge-gateway device to test MES data ingestion latency.
Verify OEE reporting accuracy by comparing edge-calculated metrics against manual shift logs.
A: An HMI is the localized hardware and software interface used for machine-level control. It acts as a single building block. SCADA is the centralized, plant-wide supervisory system that aggregates data from multiple PLCs and local interfaces to provide a facility-wide overview.
A: Yes. Modern edge hardware can bypass the traditional SCADA layer entirely. They connect directly to an MES or ERP using REST APIs, MQTT payloads, or direct SQL database queries. This is often referred to as IIoT edge connectivity.
A: OPC UA provides true platform independence, meaning it is not tied to Windows operating systems. It features built-in cybersecurity with certificate-based encryption and supports complex data modeling, allowing seamless communication regardless of the underlying PLC vendor.
A: Windows 10 or 11 IoT Enterprise LTSC is the standard for legacy software compatibility and long-term stability. However, hardened Industrial Linux (such as Debian or Yocto) is increasingly preferred for enhanced security and running containerized edge workloads.
A: Properly configured systems utilize store-and-forward technology. The software buffers time-stamped tag data on the local solid-state drive during the outage. Once the network connection is restored, it automatically pushes the historical data to the SCADA server.
A: Dual LAN ports are required to maintain physical network segmentation based on the Purdue Model. One port connects to the isolated machine network (PLCs), while the second port connects to the enterprise IT network, preventing direct external access to critical control hardware.
