Views: 0 Author: Site Editor Publish Time: 2026-06-17 Origin: Site
Transitioning from consumer-grade to industrial-grade hardware is never just a simple technical upgrade. It acts as a mandatory risk mitigation strategy for your Overall Equipment Effectiveness (OEE). Factory floors require resilient systems to keep production moving smoothly at all times. Standard commercial screens frequently fail in harsh manufacturing environments. Dust, heavy vibration, and extreme temperatures destroy fragile consumer electronics easily. These hidden failures drive up operational costs and cause frustrating delays. Replacing broken commercial monitors drains IT labor hours and halts critical assembly lines. Upgrading to a reliable Industrial Monitor or an integrated Industrial Panel PC prevents these costly interruptions.
Deploying a purpose-built Industrial Display directly impacts production line profitability. It minimizes unplanned downtime dramatically across the facility. It reduces human-machine interface (HMI) errors during fast-paced operations. You also ensure long-term systemic compatibility with existing programmable logic controllers (PLCs). Upgrading your hardware secures better reliability, higher throughput, and peace of mind for your engineering teams.
Replacing commercial monitors with a rugged Industrial Monitor or Industrial Panel PC reduces unplanned downtime caused by environmental factors (dust, vibration, temperature fluctuations).
Selecting the right Industrial Touch Screen accelerates operator input and minimizes workflow friction, even with gloved hands.
Form factor flexibility—from an embedded display in a control panel to standalone VESA mounts—allows for ergonomic, station-specific integration.
Evaluating lifecycle longevity and legacy system compatibility is as critical as assessing immediate hardware specifications.
Manufacturing floors easily ruin standard commercial monitors. Metal dust enters open ventilation slots and damages internal circuits. High thermal stress melts standard adhesives inside the casing. Heavy mechanical vibrations shatter fragile consumer-grade connectors. When these screens fail, production halts immediately. You lose valuable time waiting for maintenance teams to swap them out. Your entire assembly line stops just because a cheap monitor died. Deploying a robust Industrial Display eliminates these vulnerabilities.
You need hardware built for absolute survival. We define success criteria differently for production environments. We expect 24/7 continuous operation from these units. Manufacturers also demand a minimum 5-7 year lifecycle availability. Strict Mean Time Between Failures (MTBF) standards are completely non-negotiable here. A rugged Industrial Monitor must endure years of constant abuse without failing.
Commercial monitors look cheap during the initial purchase. However, frequent replacements destroy those upfront savings fast. Production halts cost thousands of dollars per minute in lost output. IT labor hours add up quickly when replacing broken screens. True profitability comes from relentless uptime and system reliability. You must look past the initial price tag. Evaluate the compounded costs of workflow interruptions and consider the long-term value of an Industrial Panel PC.
Evaluation Criteria | Commercial Monitor | Industrial Grade Unit |
|---|---|---|
Operating Hours | 8-10 hours daily | 24/7 Continuous Operation |
Lifecycle Availability | 1-2 years max | 5-7+ years guaranteed |
Environmental Resistance | Climate controlled only | Resists dust, water, and extreme heat |
Vibration Tolerance | Low to None | High (Meets strict military/industrial specs) |

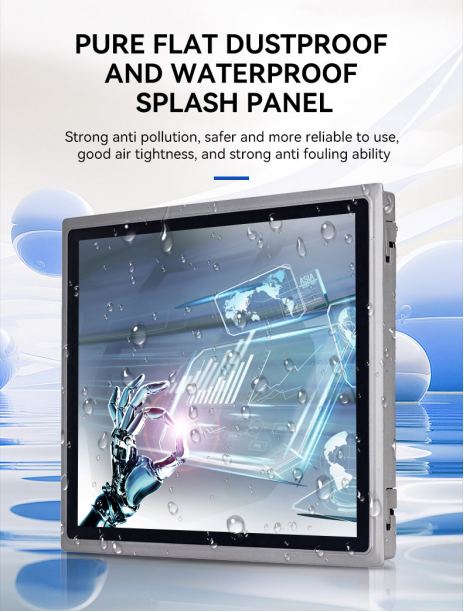

Factory floors are brutal environments. Equipment must survive daily abuse without faltering. You need strict IP65 or IP67 ratings for true protection. A dustproof industrial screen is mandatory for heavy machining zones. It prevents metal shavings from causing internal short circuits. Woodworking and milling areas produce massive amounts of airborne particles. Without a sealed enclosure, regular screens fail within weeks. You also need wide thermal operating ranges. Standard office screens die above 35°C. Industrial Display models handle temperatures from -20°C up to 60°C effortlessly. They survive near hot furnaces or inside freezing storage rooms.
Modern factories rely heavily on fast data entry. Integrating a durable Industrial Touch Screen ensures operators can interact smoothly. A highly responsive touch industrial display drastically improves operator efficiency. Workers navigate complex diagnostic menus much faster. You must choose the correct touch protocol for your specific environment. Projected Capacitive (PCAP) offers multi-touch clarity for bare hands. It feels just like a modern smartphone interface. Conversely, resistive touch technology is better for heavy industrial gloves. It relies on physical pressure rather than electrical conductivity. Resistive Industrial Touch Screen setups work flawlessly even if covered in oil or dirt.
Factory lighting often causes severe screen glare. Bright high-bay lights wash out standard displays completely. You need high-brightness solutions to combat this issue. We recommend an Industrial Monitor exceeding 1,000 nits for brightly lit areas. Anti-glare and anti-reflective treatments are also crucial here. They stop harsh reflections from blinding your operators. Better screen readability directly reduces data-entry errors. Workers make fewer mistakes when they can clearly see the interface.
Best Practice: Always audit the specific environmental hazards of each workstation before ordering hardware. An inspection station may only need basic dust protection, while a washdown area demands full IP69K waterproofing.
Workstations vary wildly in size and function. You cannot use a rigid one-size-fits-all approach. Ergonomics demand careful planning from your engineering team. Deploying a different size industrial monitor optimizes each specific workstation. A small 10-inch Industrial Touch Screen works perfectly for simple machine controls. It fits tight spaces easily and minimizes physical footprint. Conversely, complex SCADA overviews require significantly more real estate. A large 21.5-inch widescreen allows operators to monitor multiple processes simultaneously. Distance matters immensely during planning. Screens viewed from three meters away require larger text and bigger panels.
How you mount the screen directly defines its lifespan. Evaluate the embedded display approach carefully for OEM projects. When integrated with computing hardware, an Industrial Panel PC or open frame design offers seamless physical integration. They slide perfectly into OEM machinery and existing cutouts. They sit flush against control cabinets, sealing out harmful dust. This flush approach maximizes environmental protection. Standalone Industrial Monitor VESA mounts serve a different purpose entirely. They attach easily to swing arms or rigid poles. VESA mounts are ideal for rapid retrofit scenarios. They allow flexible ergonomic positioning for standing operators.
Panel Mount: Ideal for integrating an Industrial Panel PC directly into heavy machinery doors. Creates a waterproof front seal.
Open Frame: Best for kiosk enclosures or custom OEM equipment. Drops into existing metalwork seamlessly.
VESA Mount: Perfect for end-of-line quality control stations. Offers ultimate tilt and swivel flexibility.
Do not rip out highly functional infrastructure needlessly. Always check your necessary hardware interfaces before buying new units. You likely need VGA, DVI, or legacy serial ports. These legacy connections link older PLCs smoothly. They interface with aging control systems without forcing complete architecture overhauls. Modern DisplayPort or HDMI connections are great for new Industrial Display builds. However, legacy I/O compatibility saves immense retrofitting costs.
Factory hardware faces incredibly strict safety regulations. Official certifications are entirely non-negotiable. Look for CE, FCC, and RoHS compliance at a bare minimum for any Industrial Panel PC or monitor. Hazardous locations require much more rigorous testing. ATEX or Class 1 Division 2 (C1D2) certifications prevent catastrophic explosions. They are legally required in volatile environments like chemical plants or grain mills.
Consumer monitors change their internal parts constantly. This unpredictable behavior causes major software conflicts eventually. You must demand strict "Revision Control" from your display manufacturer. You need long-term form-fit-function guarantees. If an Industrial Touch Screen breaks in five years, the exact replacement must be available. This prevents costly software reconfiguration later. It keeps your existing imaging and drivers perfectly viable over a decade.
Audit Legacy I/O: Catalog every existing connection type (Serial, VGA, USB) currently used on the floor.
Verify Safety Certifications: Match the regulatory requirements of your facility (e.g., ATEX for explosive dust).
Confirm Revision Control: Secure a written guarantee of component longevity from the hardware vendor.
Test Physical Prototypes: Request an evaluation unit to test under actual factory lighting conditions.
Upgrading older machinery is often quite tricky. You face strict physical space constraints constantly. Replacing older CRT monitors causes immediate headaches. Early-generation LCD panels typically used 4:3 aspect ratios. Modern screens utilize 16:9 widescreen formats exclusively. They rarely fit perfectly into existing panel cutouts. You often need custom metal adapter plates to seal the gaps. Failing to seal these gaps voids your IP rating completely.
Do not ignore the human element during deployment. Operators face a noticeable learning curve. Migrating from physical push-buttons to an Industrial Touch Screen feels very strange at first. Glass-based touch interfaces lack satisfying tactile feedback. You must provide adequate training for your floor staff. Emphasize how the new system speeds up their daily tasks. Add audible feedback to the software to simulate button presses.
Power fluctuations ruin sensitive electronics instantly. Unsecured cable connections fall out during heavy machine vibration. We strongly advise using lockable M12 connectors. They screw in tightly and never vibrate loose during operation. You also need wide-voltage DC power inputs for your Industrial Panel PC. Factories experience frequent power spikes and severe voltage drops. A wide-voltage input (e.g., 9V to 36V) handles these fluctuations safely. It prevents unexpected reboots and protects the internal motherboard.
Common Mistake: Relying on standard barrel-jack power connectors in high-vibration zones. Always upgrade to threaded, lockable connections to prevent accidental power loss during critical production runs.
Industrial displays are widely used in rail transit systems for train control, passenger information display, station monitoring, and operation management. Their wide temperature tolerance, anti-vibration design, and high reliability ensure stable operation in demanding transportation environments.
Key Applications:
Train control systems
Passenger information systems (PIS)
Station monitoring centers
Railway signaling systems
In modern manufacturing facilities, industrial displays serve as the primary human-machine interface (HMI) between operators and equipment. They enable real-time monitoring of production data, equipment status, and process parameters, improving operational efficiency and reducing downtime.
Key Applications:
Production line monitoring
PLC control systems
SCADA systems
MES data visualization
Equipment diagnostics and maintenance
Medical devices require highly reliable displays with excellent image quality and long-term operational stability. Industrial displays are commonly integrated into diagnostic, monitoring, and healthcare automation equipment.
Key Applications:
Medical imaging systems
Patient monitoring equipment
Laboratory automation systems
Diagnostic workstations
Healthcare self-service terminals
Industrial displays play a critical role in intelligent transportation systems by providing real-time information, traffic monitoring, and centralized control capabilities. Their durability makes them suitable for continuous outdoor and indoor operation.
Key Applications:
Traffic control centers
Vehicle monitoring systems
Toll collection systems
Smart parking management
Transportation command platforms
Industrial touch displays are widely used in self-service kiosks and interactive terminals due to their durability, long lifecycle, and stable touch performance. They help improve user experience while reducing maintenance requirements.
Key Applications:
Ticket vending machines
Payment kiosks
Information terminals
Retail self-checkout systems
Banking service terminals
Machine vision systems rely on industrial displays to present inspection results, image analysis data, and production quality information in real time. High-brightness and high-resolution displays improve visibility and support faster decision-making.
Key Applications:
Quality inspection systems
Defect detection equipment
Automated optical inspection (AOI)
Packaging inspection lines
AI visual inspection systems
As Industry 4.0 continues to evolve, industrial displays have become a critical component of smart factories. They connect operators, machines, and management systems through real-time visualization and data interaction.
Key Applications:
Digital factory dashboards
Industrial IoT systems
Data acquisition platforms
Energy management systems
Predictive maintenance platforms
An Industrial Display represents a critical infrastructure investment. It is definitely not a disposable IT peripheral. Upgrading to ruggedized hardware protects your production line from catastrophic, unexpected halts. You eliminate the cascading costs associated with continuous screen replacements and IT troubleshooting. The initial premium paid for an Industrial Monitor or Industrial Panel PC pays for itself rapidly by ensuring 24/7 operational stability.
We advise procurement and engineering teams to audit their current HMI failure rates immediately. Map out your specific environmental hazards carefully. Look for airborne dust, heavy water spray, and severe temperature spikes. Gather this crucial data before requesting any spec sheets or evaluation units. Choosing the correct Industrial Touch Screen transforms your assembly line into a highly efficient, reliable ecosystem.
MeetNeng is dedicated to providing high-quality, durable hardware solutions tailored for rigorous environments.
Established in 2008
OEM & ODM Service
Industrial Display and Panel PC Manufacturer
CE, FCC, RoHS Certified
Long-Term Product Supply
Global Export Experience
Q: What is an industrial display?
A: An industrial display is a ruggedized monitor designed for use in demanding environments such as factories, transportation systems, medical equipment, and industrial automation applications. Unlike consumer monitors, industrial displays are built to withstand dust, vibration, moisture, temperature fluctuations, and continuous 24/7 operation. They are commonly integrated with PLCs, SCADA systems, HMI applications, and industrial control equipment to provide reliable real-time data visualization and operator interaction.
Q: What is the difference between an industrial display and a commercial monitor?
A: Industrial displays feature rugged build materials like aluminum or stainless steel. They often include conformal coating on internal boards to resist moisture. Unlike commercial monitors, they guarantee 24/7 continuous operating hours. Manufacturers also provide long-term lifecycle guarantees, ensuring replacement parts remain available for five to seven years.
Q: How do I choose the correct IP rating?
A: Choose IP54 for basic protection against dry dust and light splashes. Upgrade to IP65 for full protection against heavy dust and low-pressure water jets. If your facility requires daily high-pressure, high-temperature chemical washdowns, you should consider IP69K-rated industrial displays. The ideal IP rating depends on the operating environment, including dust exposure, water contact, and cleaning requirements.
Q: Can industrial touch screens work with gloves?
A: Yes. Many industrial touch screens are designed to support glove operation. Resistive touch screens can be used with almost any type of glove because they respond to physical pressure. Modern projected capacitive (PCAP) touch screens can also be configured to work with industrial gloves, medical gloves, or safety gloves while maintaining excellent touch sensitivity and multi-touch functionality.
Q: What industries use industrial displays?
A: Industrial displays are widely used across many industries, including factory automation, rail transit, medical equipment, intelligent transportation, self-service terminals, energy management, machine vision inspection, food processing, logistics, and smart manufacturing. Their durability and reliability make them suitable for environments where standard commercial monitors cannot operate consistently.
Q: What operating temperatures do industrial displays support?
A: Operating temperature ranges vary by model, but most industrial displays support temperatures from -20°C to 60°C. Some specialized models can operate in even more extreme conditions, such as -30°C to 70°C. Wide-temperature designs are especially important for outdoor installations, transportation systems, warehouses, and manufacturing facilities where environmental conditions can fluctuate significantly.
Q: How long does an industrial display typically last?
A: Industrial displays are designed for long-term deployment and typically have a service life of 5 to 10 years or more, depending on the application environment and usage conditions. Many industrial display manufacturers also offer long product lifecycle support, ensuring consistent hardware availability and reducing the need for system redesigns during equipment upgrades or maintenance.
Q: Can industrial displays be customized?
A: Yes. Many industrial display manufacturers provide customization services to meet specific project requirements. Custom options may include screen size, brightness, touch technology, mounting method, interface configuration, enclosure material, waterproof rating, operating temperature range, and branding. OEM and ODM services are commonly available for equipment manufacturers, system integrators, and industrial automation projects.
MeetNeng provides industrial displays and panel PC solutions for:
Factory Automation
Machine Vision
Smart Manufacturing
Industrial Control Systems
OEM Equipment Manufacturers
Contact us today to discuss your project requirements.
